Acerca del producto
The Cisco ASR 9000 Series 5thGeneration 400 Gigabit Ethernet Multi-Rate Line Card delivers industry-leading high density, with line-rate 10, 25, 40, and 100 Gigabit Ethernet ports, to any slot of a Cisco ASR 9000 Series Aggregation Services Router. This Multi-Rate line card is designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video-on-Demand (VoD), IPTV, point-to-point video, internet video, and cloud services traffic. The physical interfaces support QSFP28, SFP28, QSFP+, SFP+ optics, giving customers the flexibility to mix and match interface types on the same line card.

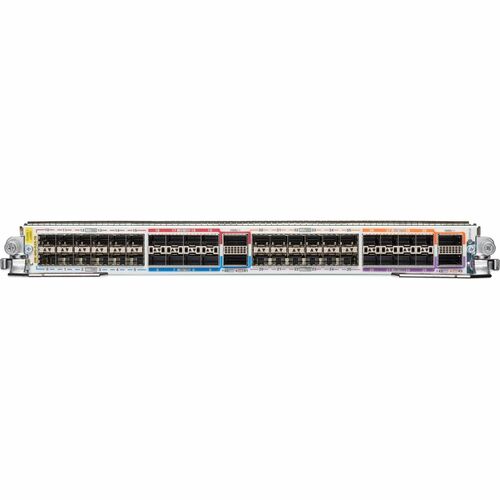

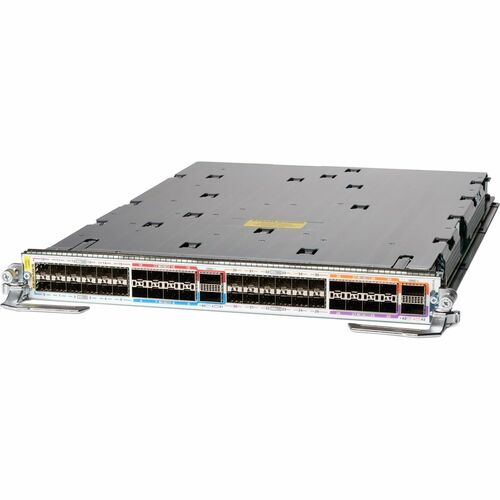

Multiple interface modes can be configured easily through the Command Line Interface (CLI) without resetting or restarting the line card. With these capabilities, the ASR 9000 Series line card (Figure 1) and routers provide the fundamental infrastructure for scalable Carrier Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) networks, promoting profitable business, residential, and mobile services.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Uses 25 Gigabit Ethernet technology to fulfill the high bandwidth requirement
- With 100GBase-X technology, enjoy up to 10Gbps data transfer rate over supported network cable
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | Cisco Routers:
|
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| SFP28 | |
| SFP+ | |
| Total Number of Expansion Slots | 44 |
| General Information | |
| Product Type | Line Card |
| Manufacturer Part Number | A9K4HGFLEXTR |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | ASR 9000 400GE Combo Packet Transport Line Card - 5th Generation |
| Brand Name | Cisco |
| Physical Characteristics | |
| Weight (Approximate) | 18.74 lb (8500.32 g) |
| Form Factor | Plug-in Module |
| Height | 1.70" (43.18 mm) |
| Width | 15.90" (403.86 mm) |
| Depth | 24" (609.60 mm) |
| Product Color | White |
| Color Family | White |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 25GBase-X | |
| 10GBase-X | |
| 40GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| 25 Gigabit Ethernet | |
| 40 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
