Advantech
CONMUTADOR DE 5 PUERTOS CON 1 PUERTO DE FIBRA TIPO ST MODO M
CONMUTADOR DE 5 PUERTOS CON 1 PUERTO DE FIBRA TIPO ST MODO M
- Con puertos Fast Ethernet para acelerar la velocidad de transferencia hasta 100 mb/seg de archivos grandes y activos digitales en su red.
- El conmutador de capa 2 proporciona una línea completa de funciones que incluyen vigilancia IGMP, duplicación de puertos y árbol de expansión.
- El conmutador no administrado proporciona una manera rápida, sencilla y económica de agregar una red cableada a su hogar, oficina o pequeña empresa; no se necesita intervención.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
CONMUTADOR DE 5 PUERTOS CON 1 PUERTO DE FIBRA TIPO ST MODO M
Resumen de información del producto

Acerca del producto

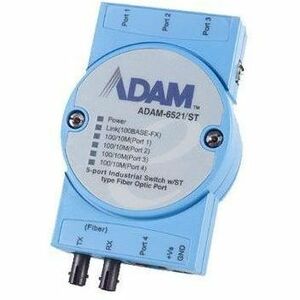

ADAM-6521 and ADAM-6521S are industrial-grade Ethernet switch with a fiber optic port that makes it possible to expand industrial networks fast and cost-effectively. ADAM-6521 and ADAM-6521S of 1 fiber port and 4-RJ-45 ports. With fiber optics, you can prevent noise interfering with your system and implement transmission distances up to 15 km.
ADAM-6521 and ADAM-6521S are especially suited for industrial environments with Ethernet networking needs such as: semi-conductor factories, inventory control environments, assembly line and production and more.
ADAM-6521 and ADAM-6521S support a wide voltage range of +10 ~ 30 VDCover the terminal block, and 3,000 VDC surge (EFT) protection to protect it from being damaged by over-voltage. A wide operating temperature range from -10 to 65° C (14 ~ 149° F), makes it functional in harsh operating environments. They also have six inclusive LED indicators which make troubleshooting the ADAM-6521 and ADAM-6521S easier. Each port has a pair of LEDs that indicate link status and transmission speed. This function conveniently informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnostics.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Quickly and easily set up a wired network with 5 networking ports
Especificaciones técnicas
Management & Protocols | |
Manageable | No |
Miscellaneous | |
Application/Usage | Industrial |
Network & Communication | |
Layer Supported | 2 |
Networking Standards | IEEE 802.3x |
IEEE 802.3 | |
IEEE 802.3u | |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Modular | No |
Uplink Port | No |
Stack Port | No |
Total Number of Network Ports | 5 |
Port/Expansion Slot Details | 5 x Fast Ethernet Network |
Media & Performance | |
Network Technology | 100Base-FX |
10/100Base-TX | |
Ethernet Technology | Fast Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber | |
Fiber Mode Supported | Multi-mode |
Power Description | |
Input Voltage | 30 V DC |
10 V DC | |
Power Source | DC |
Power Consumption | 3 W |
Number of Power Supplies Supported | 1 |
PoE (RJ-45) Port | No |
General Information | |
Product Type | Ethernet Switch |
Manufacturer Part Number | ADAM6521STAE |
Manufacturer Website Address | http://www.advantech.com |
Manufacturer | Advantech Co., Ltd |
Product Model | ADAM-6521/ST |
Product Name | 4FE+1FE ST Multi-mode Unmanaged Ethernet Switch, Flexible Mounting |
Product Series | ADAM-6521 |
Brand Name | Advantech |
Physical Characteristics | |
Form Factor | DIN Rail Mountable |
Rail-mountable | |
Wall Mountable | |
Height | 4.41" (112 mm) |
Width | 2.76" (70 mm) |
Depth | 1.06" (27 mm) |
Product Material | Polycarbonate |
ABS | |
Plastic |
