Acerca del producto
The X1100 Two Door Controller and Power Kit seamlessly fits right into the Alarm.com Smarter Access Control solution for businesses. The system implements smart automation and various handy features, including tagging access events in video timelines, disarmament when badging in, and locking when arming.

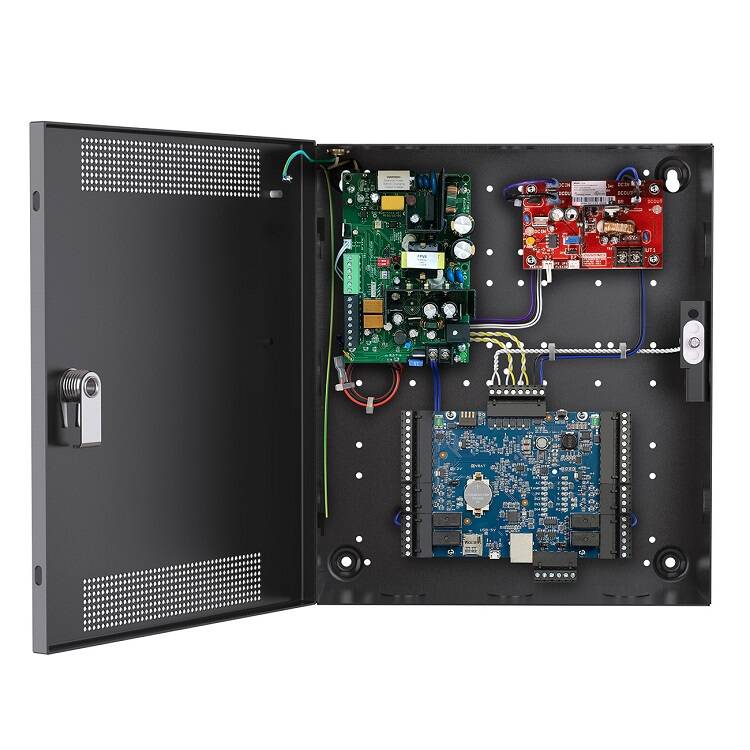

This kit includes an installed X1100 Door controller wired into a 12/24 VDC dual voltage power supply. The self-contained kit ensures easy, simplified installation for a one or two-door access control system.
THE BENEFITS OF SMARTER ACCESS CONTROL
the Smarter Access Control solution from Alarm.com offers user-friendly and flexible day-to-day usability. It uses a scan-to-add card format and serial detection and offers remote control and management through the Alarm.com app. With plug-and-play installation, it's easy to set up, and hardware can be configured online or through the app.
Alarm.com ADC-AC-X1100-2PSE features:
- Two reader inputs
- Four relay outputs
- Four programmable inputs
- Pre-assembled to power one or two door system
- Interface is for use in low-voltage, Class 2 circuits only
- 12 to 24 VDC ±10%, 1.9 A max
- One dedicated input for each Tamper, AC Fail, and Battery Fail
- Two-wire LED control
- Single-wire buzzer output
- FCC, CE, UL 294 Certified
- Operational temperature: 0°C to 70°C
- Efficiency of 85% 120 VAC 60 Hz in, full load
Especificaciones técnicas
The X1100 Two Door Controller and Power Kit seamlessly fits right into the Alarm.com Smarter Access Control solution for businesses. The system implements smart automation and various handy features, including tagging access events in video timelines, disarmament when badging in, and locking when arming.
This kit includes an installed X1100 Door controller wired into a 12/24 VDC dual voltage power supply. The self-contained kit ensures easy, simplified installation for a one or two-door access control system.
THE BENEFITS OF SMARTER ACCESS CONTROL
the Smarter Access Control solution from Alarm.com offers user-friendly and flexible day-to-day usability. It uses a scan-to-add card format and serial detection and offers remote control and management through the Alarm.com app. With plug-and-play installation, it's easy to set up, and hardware can be configured online or through the app.
Alarm.com ADC-AC-X1100-2PSE features:
- Two reader inputs
- Four relay outputs
- Four programmable inputs
- Pre-assembled to power one or two door system
- Interface is for use in low-voltage, Class 2 circuits only
- 12 to 24 VDC ±10%, 1.9 A max
- One dedicated input for each Tamper, AC Fail, and Battery Fail
- Two-wire LED control
- Single-wire buzzer output
- FCC, CE, UL 294 Certified
- Operational temperature: 0°C to 70°C
- Efficiency of 85% 120 VAC 60 Hz in, full load
