Acerca del producto

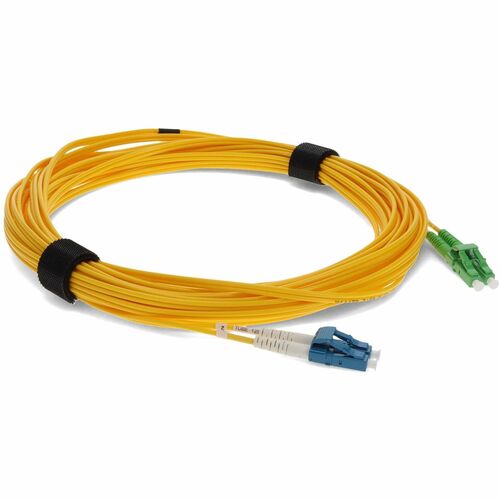

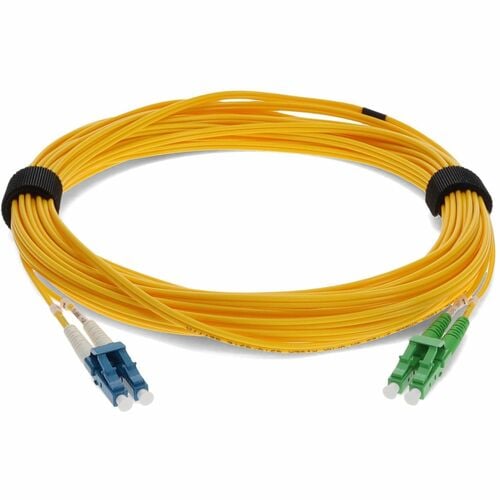

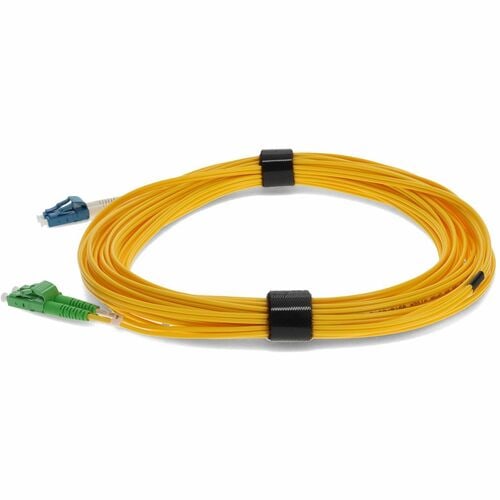

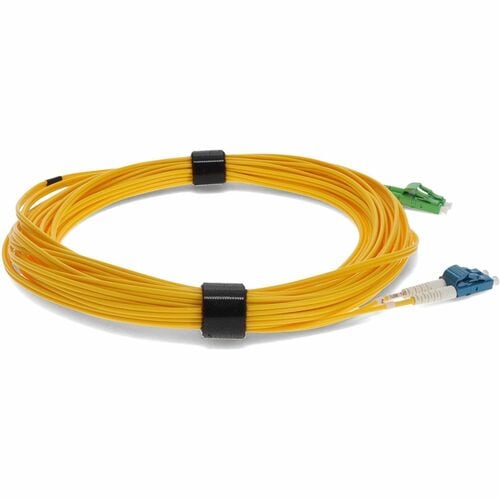

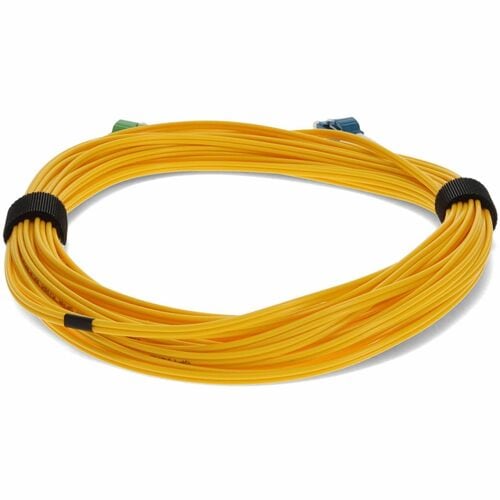

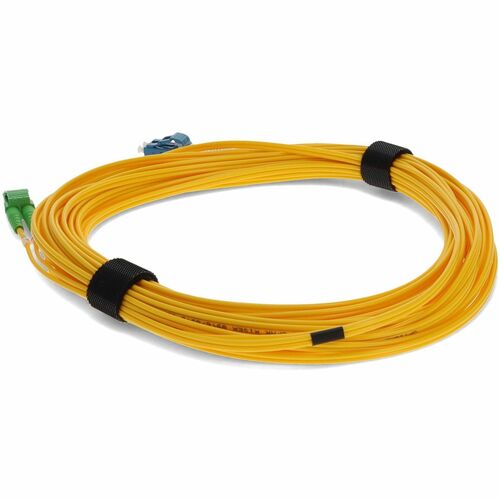

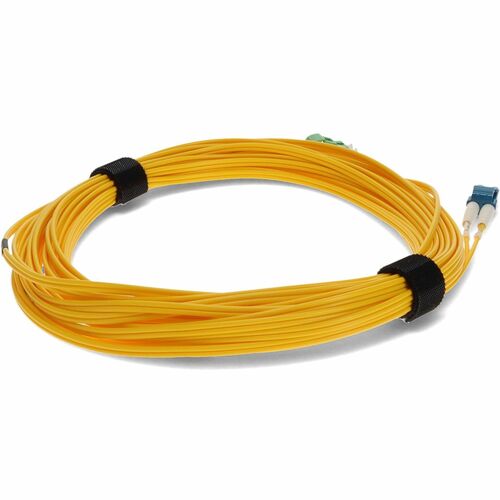

This is a 3m angled LC (male) to LC (male) yellow duplex riser-rated fiber patch cable. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This optical fiber, nonconductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.
- Features Molded
- Allows you to access all of the networked data, swiftly and securely
- Features Fiber Optic cable type
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Physical Characteristics | |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Height | 13" (330.20 mm) |
| Width | 11" (279.40 mm) |
| Product Color | Yellow |
| Color Family | Yellow |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | ADD-ALC-LC-3M9SMF |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1.0 |
| Manufacturer | AddOn |
| Product Model | ADD-ALC-LC-3M9SMF |
| Product Name | 3m Single-Mode Fiber (SMF) Duplex (APC-LC/PC-LC) ALC/LC OS1 Yellow Patch Cable |
| Brand Name | AddOn |
| Technical Information | |
| Cable Length | 9.8 ft |
| Device Supported | Transceiver/Media Converter |
| Network Device | |
| Jacket Type | OFNR |
| Riser | |
| Shielding | No |
| Features | Angled Physical Contact (APC) |
| Impact Resistant | |
| Angled Connector | |
| Strain Relief | |
| Molded | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | ALC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Single-mode |
| Cable Configuration | Straight-through |
| Fiber Type | Duplex |
| Connector on First End Details | 2 x ALC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Category | OS2 |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
