UNV Uniview

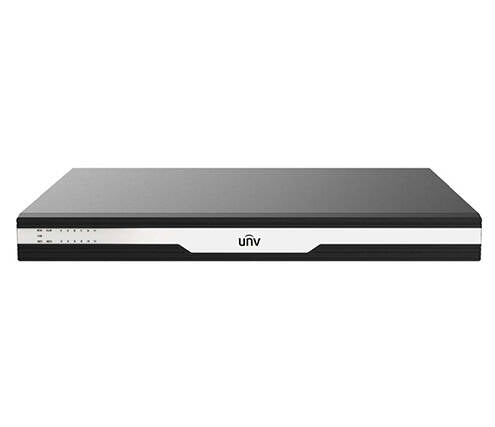

Decodificador de vídeo de alta definición Uniview de 6 canales, 2 entradas DVI-D y 2 HDMI (ADU8706-E-V3)

Name: Decodificador de vídeo de alta definición Uniview de 6 canales, 2 entradas DVI-D y 2 HDMI (ADU8706-E-V3)
Brand: UNV Uniview
SKU: AT233299
Price: 2404.99 CAD
Availability: InStock

$2,404.99 CAD

~~$2,693.99 CAD~~ $2,404.99 CAD

-10% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

Decodificador de vídeo de alta definición Uniview de 6 canales, 2 entradas DVI-D y 2 HDMI (ADU8706-E-V3)

VPN:ADU8706-E-V3 SKU:AT233299 UPC:810179050436

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Uniview 6 Channel High Definition Video Decoder, 2 DVI-D and 2 HDMI input (ADU8706-E-V3)

Acerca del producto

The Uniview ADU Series, 6-channel high-definition video decoder with 2 DVI-D and 2 HDMI outputs allows for 6 additional encoded high-definition video inputs of up to 12MP. Supports 4K output at 30 FPS and provides an extensive range of video-out options, including 2x HDMI, 2x DVI-D and multicast support. Can be integrated into video walls/screens for live surveillance or security offices.

Supports decoding both SD and HD video, including other camera brands that support ONVIF.

ADU8706-E-V3 Specs and Features

Input: 4-ch HDMI (video only) HDMI input resolution
- 4K interface:
  - 3840*2160(4K)@30Hz
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz
  - 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz
  - (4K interface: 1, 2)
- 1080P interface:
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz
  - 1600*1200(UXGA)@60Hz
  - 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz
  - (1080P interface: 3, 4)
HDMI input resolution
- 4K interface:
  - 3840*2160(4K)@30Hz
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz
  - 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz
  - (4K interface: 1, 2)
- 1080P interface:
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz
  - 1600*1200(UXGA)@60Hz
  - 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz (1080P interface: 3, 4)
Decoding Format: H.265, H.264, MPEG4
Decoding Capability:
- 8*12MP@20Hz
- 8*4K@30Hz
- 32*1080P@30Hz
- 72*720P@30Hz
Audio input: 1x terminal audio input (reserved), 1x 3.5mm audio input (reserved)
Audio Output: 1x terminal audio output (reserved), 3.5mm audio output (dual channel)
Alarm input: 4 x terminal alarm input (reserved)
Alarm output: 4 x terminal alarm output (reserved)
Serial port: 1 x RS232, 1 x RS485
Ethernet: 2 x GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive
USB: 2 x USB3.0
Dimensions (WxHxD): 440mm x 44mm x 339 mm
Weight (kg): 3.83
Max. power consumption (W): 32
Power supply: 100V to 240V AC; 50Hz/60Hz
Operating temperature: -10°C to 55°C
Operating humidity: 10% to 90% RH, non-condensing

Datasheet

Especificaciones técnicas

Supports decoding both SD and HD video, including other camera brands that support ONVIF.

ADU8706-E-V3 Specs and Features

Input: 4-ch HDMI (video only) HDMI input resolution
- 4K interface:
  - 3840*2160(4K)@30Hz
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz
  - 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz
  - (4K interface: 1, 2)
- 1080P interface:
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz
  - 1600*1200(UXGA)@60Hz
  - 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz
  - (1080P interface: 3, 4)
HDMI input resolution
- 4K interface:
  - 3840*2160(4K)@30Hz
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz
  - 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz
  - (4K interface: 1, 2)
- 1080P interface:
  - 1920*1080(1080P)@60Hz
  - 1920*1080(1080P)@50Hz
  - 1920*1080(1080P)@30Hz
  - 1600*1200(UXGA)@60Hz
  - 1440*900(WXGA)@60Hz
  - 1280*1024(SXGA)@60Hz
  - 1280*720(720P)@60Hz
  - 1280*720(720P)@50Hz
  - 1024*768(XGA)@60Hz (1080P interface: 3, 4)
Decoding Format: H.265, H.264, MPEG4
Decoding Capability:
- 8*12MP@20Hz
- 8*4K@30Hz
- 32*1080P@30Hz
- 72*720P@30Hz
Audio input: 1x terminal audio input (reserved), 1x 3.5mm audio input (reserved)
Audio Output: 1x terminal audio output (reserved), 3.5mm audio output (dual channel)
Alarm input: 4 x terminal alarm input (reserved)
Alarm output: 4 x terminal alarm output (reserved)
Serial port: 1 x RS232, 1 x RS485
Ethernet: 2 x GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive
USB: 2 x USB3.0
Dimensions (WxHxD): 440mm x 44mm x 339 mm
Weight (kg): 3.83
Max. power consumption (W): 32
Power supply: 100V to 240V AC; 50Hz/60Hz
Operating temperature: -10°C to 55°C
Operating humidity: 10% to 90% RH, non-condensing

Datasheet
