Acerca del producto

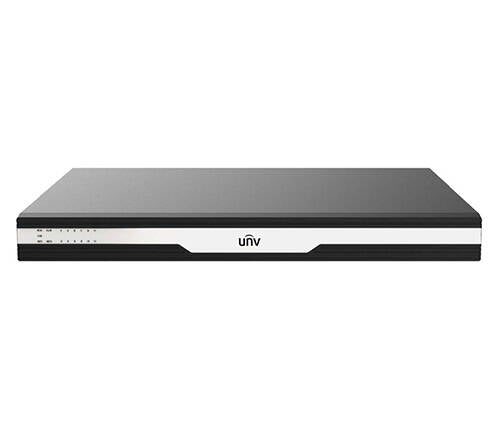

The Uniview Decoder/Controller provides 4 HDMI inputs with a maximum resolution of 12MP and up to 16 simultaneous HD 1080p feeds on each channel. Easily expand, centralize and monitor complex multi-camera installs, multi-property setups or legacy CCTV systems-- ONVIF support and SD/HD decoding expands compatibility beyond Uniview cameras, and the embedded Linux OS ensures 24/7 secure, stable operation.
Supports multicast, virtual LEDs, small pixel pitch LEDs, turning on/off wall screens and more. Perfect for security offices, multi-property surveillance systems and large installs like warehouses or supermarkets.
ADU8712-E-V3 Specs and Features
- Input: 4-ch HDMI (video only)
- HDMI input resolution:
- 4K interface?3840*2160(4K)@30Hz, 1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(4K interface?1, 2)
- 1080P interface?1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080?1080P) @30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(1080P interface?3, 4)
- Output: 12-ch HDMI
- HDMI output resolution:
- 4K interface?3840*2160(4K)@30Hz, 1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(4K interface?1, 2, 4, 5, 7, 8, 10, 11)
- 1080P interface?1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(1080P interface?3, 6, 9, 12)
- Decoding format H.265, H.264, MPEG4
- Decoding capability: 16*12MP @20Hz; 16*4K@30Hz; 64*1080P@30Hz; 144*720P@30Hz
- Splicing: M*N (the number of windows cannot exceed the number of output channels)
- Windows: 36* number of output channels
- Audio input: 1 * terminal audio input (reserved), 1 * 3.5mm audio input (reserved)
- Audio output: 1 * terminal audio output (reserved), 1 * 3.5mm audio output, dual channel
- Alarm input: 4 * terminal alarm input (reserved)
- Alarm output: 4 * terminal alarm output (reserved)
- Serial port: 1 * RS232, 1 * RS485
- Ethernet: 2 * GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive
- USB 2 * USB3.0
- Dimensions (W*H*D)(mm): 440 * 44 * 339
- Weight (kg): 3.95
- Max. power consumption (W): 50
- Power supply: 100V to 240V AC; 50Hz/60Hz
- Operating temperature: -10°C to 55°C
- Operating humidity: 10% to 90% RH, non-condensing
Especificaciones técnicas
The Uniview Decoder/Controller provides 4 HDMI inputs with a maximum resolution of 12MP and up to 16 simultaneous HD 1080p feeds on each channel. Easily expand, centralize and monitor complex multi-camera installs, multi-property setups or legacy CCTV systems-- ONVIF support and SD/HD decoding expands compatibility beyond Uniview cameras, and the embedded Linux OS ensures 24/7 secure, stable operation.
Supports multicast, virtual LEDs, small pixel pitch LEDs, turning on/off wall screens and more. Perfect for security offices, multi-property surveillance systems and large installs like warehouses or supermarkets.
ADU8712-E-V3 Specs and Features
- Input: 4-ch HDMI (video only)
- HDMI input resolution:
- 4K interface?3840*2160(4K)@30Hz, 1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(4K interface?1, 2)
- 1080P interface?1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080?1080P) @30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(1080P interface?3, 4)
- Output: 12-ch HDMI
- HDMI output resolution:
- 4K interface?3840*2160(4K)@30Hz, 1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(4K interface?1, 2, 4, 5, 7, 8, 10, 11)
- 1080P interface?1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(1080P interface?3, 6, 9, 12)
- Decoding format H.265, H.264, MPEG4
- Decoding capability: 16*12MP @20Hz; 16*4K@30Hz; 64*1080P@30Hz; 144*720P@30Hz
- Splicing: M*N (the number of windows cannot exceed the number of output channels)
- Windows: 36* number of output channels
- Audio input: 1 * terminal audio input (reserved), 1 * 3.5mm audio input (reserved)
- Audio output: 1 * terminal audio output (reserved), 1 * 3.5mm audio output, dual channel
- Alarm input: 4 * terminal alarm input (reserved)
- Alarm output: 4 * terminal alarm output (reserved)
- Serial port: 1 * RS232, 1 * RS485
- Ethernet: 2 * GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive
- USB 2 * USB3.0
- Dimensions (W*H*D)(mm): 440 * 44 * 339
- Weight (kg): 3.95
- Max. power consumption (W): 50
- Power supply: 100V to 240V AC; 50Hz/60Hz
- Operating temperature: -10°C to 55°C
- Operating humidity: 10% to 90% RH, non-condensing
