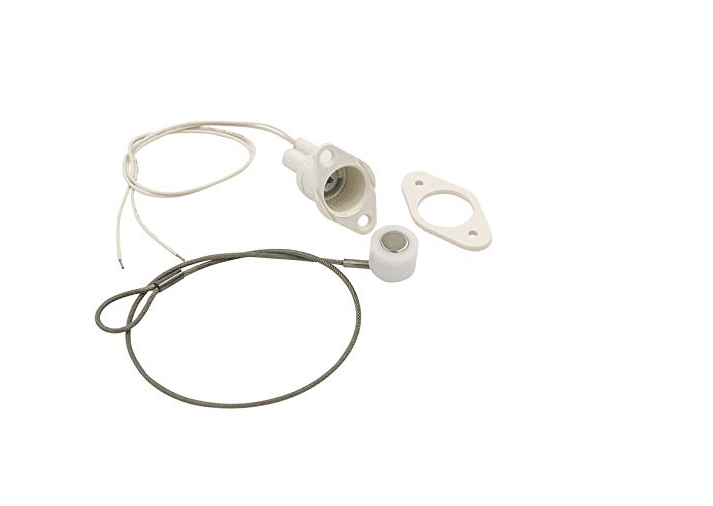

The Flair AG100-12 flush mount pull-apart sensor protects valuable artwork or displays from being stolen or removed. The AG100-12 hard-wired sensor is flush mounted into the wall or display and the lanyard is connected to what you're protecting. When the artwork, picture, electronics, or other displays are removed the lanyard pulls the magnet which triggers the sensor. The AG100-12 is normally closed when the magnet and lanyard are secure and in place.
Flair AG100-12 Pull-Apart Magnetic Contact:
- SKU: AG100-12
- Color: White
- Electrical Rating: AG100-12: Maximum 100 VDC, 50 ma., 10 W, AG101-12 and AG102-12: Maximum 30 VDC, 20 ma., 3 WGap 1/2?
- Lead Length: 18? #22 AWG Wire Leads
- Loop Type (with magnet present): AG100-12: Normally Closed, AG101-12: Normally Open, AG102-12: SPDT
- Size: 3/4? Dia. x 1 1/2? Long
- Flush Mount on Wall, Ceiling, or Table in any Position (Even Upside Down)
- Stainless Steel Flexible Lanyard
- Rare Earth Magnet
Especificaciones técnicas
The Flair AG100-12 flush mount pull-apart sensor protects valuable artwork or displays from being stolen or removed. The AG100-12 hard-wired sensor is flush mounted into the wall or display and the lanyard is connected to what you're protecting. When the artwork, picture, electronics, or other displays are removed the lanyard pulls the magnet which triggers the sensor. The AG100-12 is normally closed when the magnet and lanyard are secure and in place.
Flair AG100-12 Pull-Apart Magnetic Contact:
- SKU: AG100-12
- Color: White
- Electrical Rating: AG100-12: Maximum 100 VDC, 50 ma., 10 W, AG101-12 and AG102-12: Maximum 30 VDC, 20 ma., 3 WGap 1/2?
- Lead Length: 18? #22 AWG Wire Leads
- Loop Type (with magnet present): AG100-12: Normally Closed, AG101-12: Normally Open, AG102-12: SPDT
- Size: 3/4? Dia. x 1 1/2? Long
- Flush Mount on Wall, Ceiling, or Table in any Position (Even Upside Down)
- Stainless Steel Flexible Lanyard
- Rare Earth Magnet
