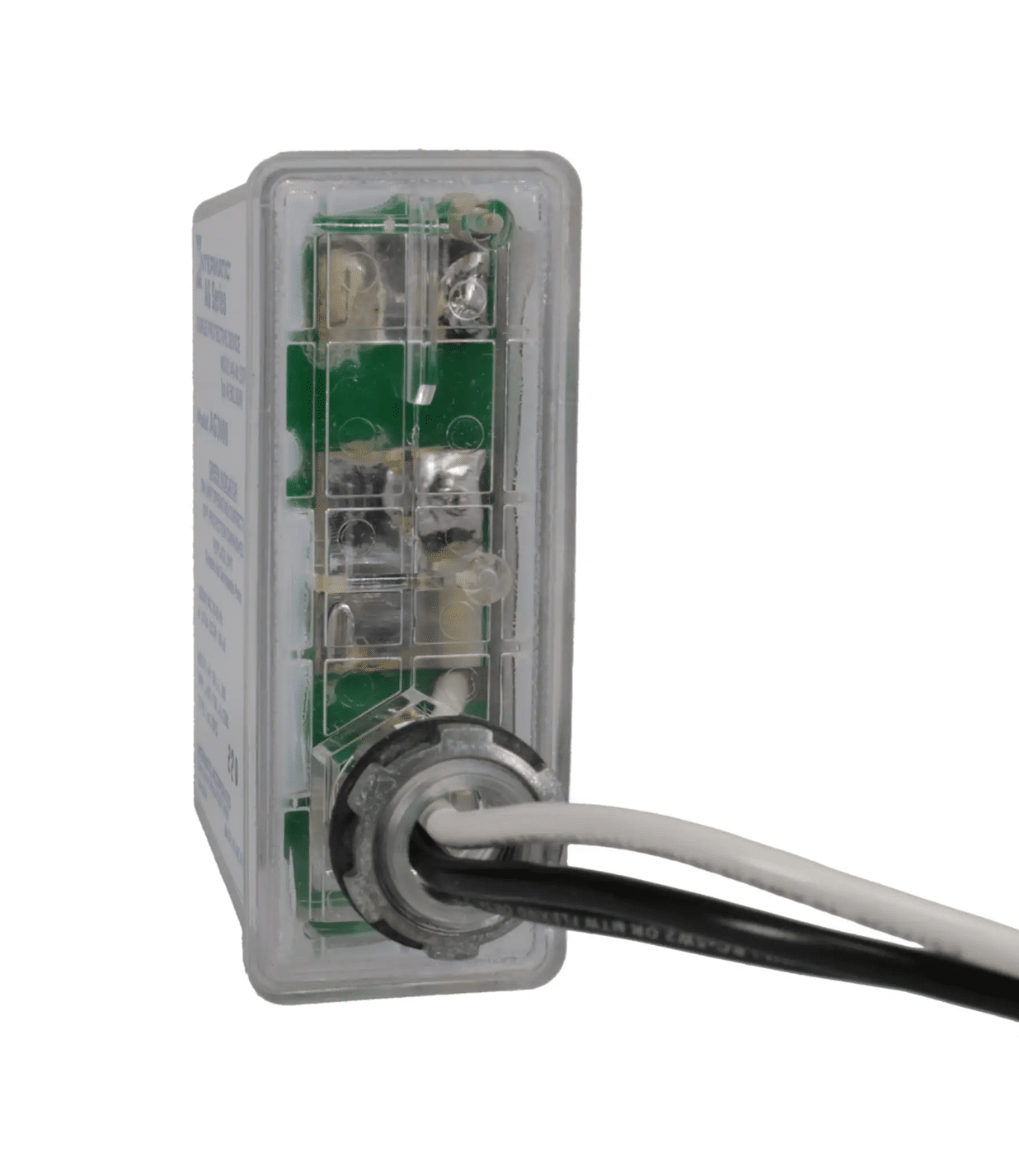

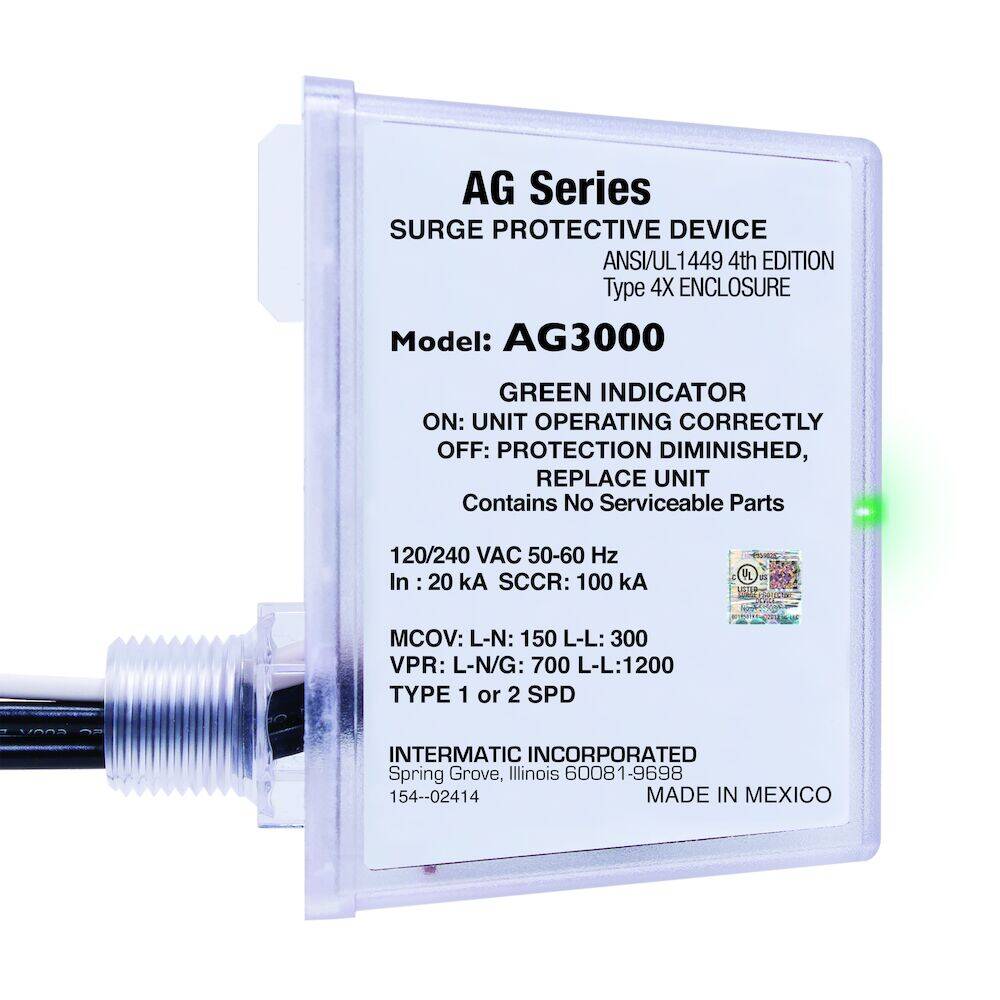

Intermatic 120/240 VAC Single Split Phase SPD, 4X Enclosure Overview
Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 4th Edition.
Intermatic 120/240 VAC Single Split Phase SPD Features
- Three modes of protection: L-G, L-L, L-N
- TPMOV® surge protection technology
- Green LED indicator provides the status of protection
- Type 4X watertight and UV-resistant plastic enclosure
- 3-year product warranty
- $7,500 connected equipment warranty for 3 years
- UL Listed to ANSI/UL 1449 4th edition
Applications
- Distribution Panel
- Service Entrance
- HVAC Equipment Protection
Intermatic 120/240 VAC Single Split Phase SPD Specifications
- General
- Model Number: AG3000
- Description: Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor, Connected; Equipment Warranty 3yr $7,500
- UPC Code: 078275130678
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 3-Year limited
- Connected Equipment Warranty Period: 3-Year limited
- Connected Equipment Warranty Coverage (USD): 7500
- Electrical Specifications
- Modes of Protection: 3 (L1-N, L2-N, L1-L2)
- Short Circuit Current Rating: 100 kA
- Nominal Discharge Current: 20 kA
- Maximum Surge Current Rating Per Phase: 50 kA
- Surge Protection Technology: TPMOV®
- Maximum Continuous Operating Voltage (L-G): 150
- Maximum Continuous Operating Voltage (L-L): 300
- Maximum Continuous Operating Voltage (L1-N/G): 150
- Voltage Protection Rating (L-L): 1200
- Voltage Protection Rating (L1-N/G): 700
- Phase: Single
- Voltage: 120/240 VAC Single-Phase
- Control Specifications
- Undervoltage Pickup [120 VAC] (VAC): 104
- Undervoltage Pickup [208 VAC] (VAC): 180
- Undervoltage Pickup [240 VAC] (VAC): 208
- Surge Protection Type: 1; 2
- Surge Protection LED Indicator: Green
- Mechanical Specifications
- Number of Wire Leads: 3
- Enclosure Type: Indoor/outdoor type 4X
- Dimensions
- Product Dimensions (H x W x D) in: 3 7/8 x 1 5/8 x 4 3/16 in
- Wire Lead Length (in): 18
- Wire Size Max: #10 AWG, Tinned Copper
- Packaging
- Unit Carton Dimensions (H x W x L) in: 4.5 x 2 x 4.25 in
- Environmental Specifications
- Temperature (operation): -40 °F to 158 °F / (-40 °C to 70 °C)
- Standards and Certifications
- UL Certification: cULus
- Other Certifications and Compatibilities: HVACR
- UL Standard: ANSI/UL 1449 4th Edition
- California Proposition 65: DEHP
