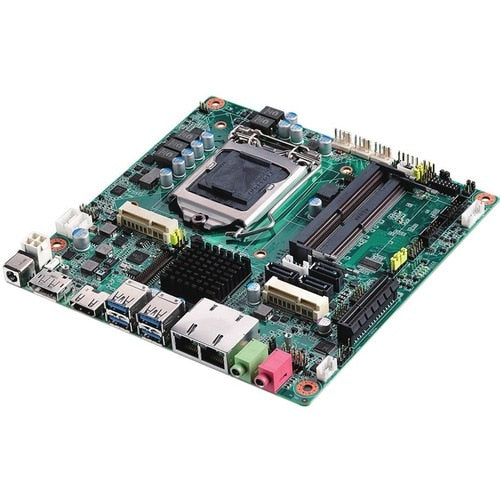

Acerca del producto
- Supports Intel® 7th & 6th Gen Core™ i processor (LGA1151) with Intel H110 chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
- Supports Dual display of DP/HDMI/VGA
- Supports PCIe x4 (Gen 3), 1 F/S miniPCIe and 1 H/S miniPCIe
- Support 12V DC Input and low profile height
- Supports 4 USB 3.0, 4 USB 2.0, 3 SATAIII, TPM 1.2 / 2.0 (optional)
- Supports WISE-PaaS/RMM and Embedded Software APIs
Especificaciones técnicas
| Audio | |
| Audio Channels | 7.1 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 3 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (169.93 mm) |
| Depth | 6.69" (169.93 mm) |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Memory Speed Supported | 2400 MHz |
| 2133 MHz | |
| General Information | |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | AIMB-285G2-00A2E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | AIMB-285 A2 |
| Product Name | AIMB-285 A2 Desktop Motherboard |
| Brand Name | Advantech |
| Processor & Chipset | |
| Processor Supported | Core i3 |
| Core i5 | |
| Core i7 | |
| Pentium | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 |
