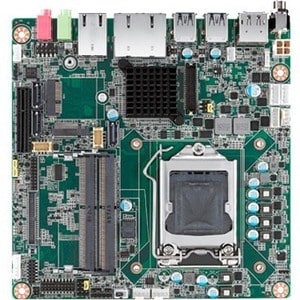

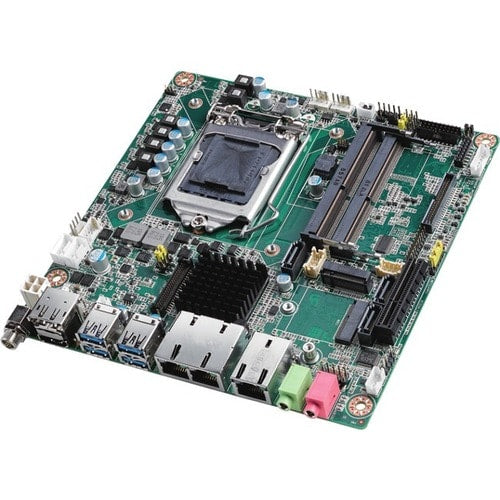

Acerca del producto
- Supports Intel® 9th/8th Gen Core™ i processor (LGA1151) with Intel H310 chipset
- Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM
- Supports dual display of DP++/HDMI/LVDs (or eDP)
- Supports PCIe x4 (Gen 3), 1 M.2 B key & 1 M.2 E key, 4 USB 3.0 & 4 USB 2.0 and 3 SATA III
- Supports 12V DC Input and low profile height
- Supports TPM 1.2 / 2.0
- Supports WISE-PaaS/DeviceOn and Embedded Software APIs
Especificaciones técnicas
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (169.93 mm) |
| Depth | 6.69" (169.93 mm) |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Memory Speed Supported | 2666 MHz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | AIMB-286L-00A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | AIMB-286 |
| Product Name | AIMB-286 Desktop Motherboard |
| Brand Name | Advantech |
| Processor & Chipset | |
| Processor Supported | Core i7 |
| Pentium Gold | |
| Celeron | |
| Core i5 | |
| Core i3 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Chipset Manufacturer | Intel |
| Chipset Model | H310 |
