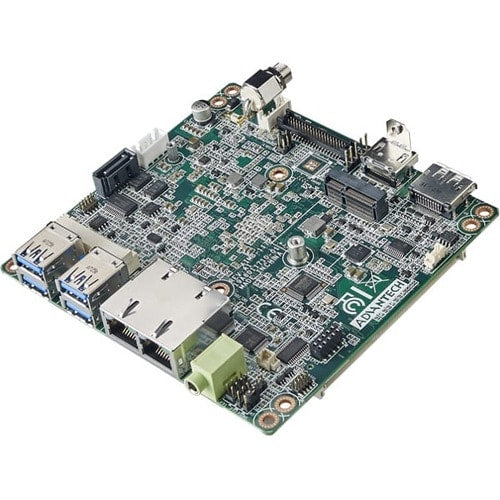

Acerca del producto
- Supports Intel® Atom™ Quad/ Dual core E3950/E3930 1.6/ 1.3 GHz processor
- Single 204-pin SO-DIMM up to 8 GB DDR3L 1866 MHz SDRAM

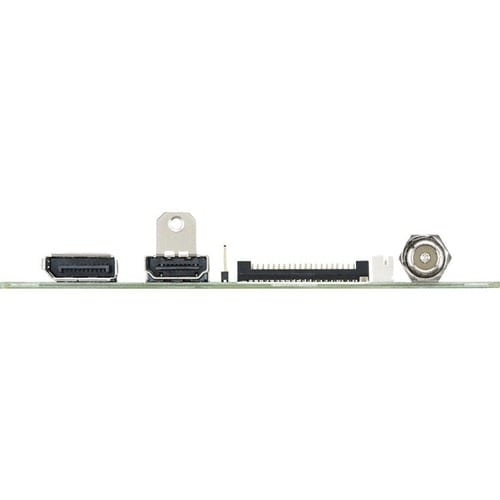

- Supports HDMI/DP++, eDP (co-lay dual channel 48-bit LVDS)

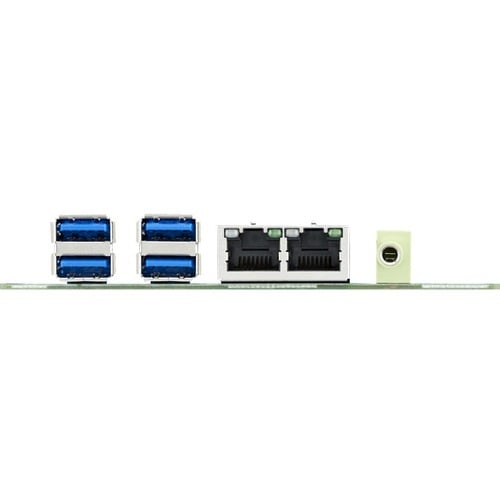

- Supports 1 Mini-PCIE expansion slot, M.2 E-Key slot, 2 COMs (RS-232, RS-422/485), 4 USB 3.0, and dual LAN
- Supports eMMC 32GB on board
- Supports wide DC in 12V to 24V
- Supports wide temperature with cooler/fanless solution
Especificaciones técnicas
| Audio | |
| Audio Channels | 7.1 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | UTX |
| Width | 4.60" (116.84 mm) |
| Depth | 4.40" (111.76 mm) |
| Processor & Chipset | |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-1296 |
| Chipset Manufacturer | Intel |
| Integrated Processor | |
| Integrated Processor Type | Atom |
| Integrated Processor Model | E3950 |
| Integrated Processor Speed | 1.60 GHz |
| Integrated Processor Core | Quad-core (4 Core) |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |
| Number of Memory Slots | 1 |
| Memory Form Factor | SoDIMM |
| Memory Speed Supported | 1866 MHz |
| General Information | |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | AIMB-U117D-S6A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | AIMB-U117 |
| Product Name | AIMB-U117 Desktop Motherboard |
| Brand Name | Advantech |
