Acerca del producto

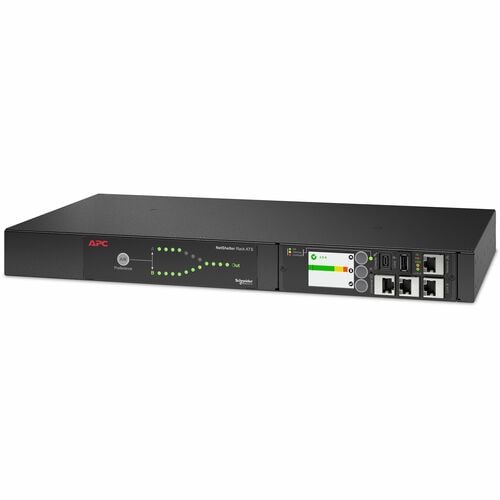

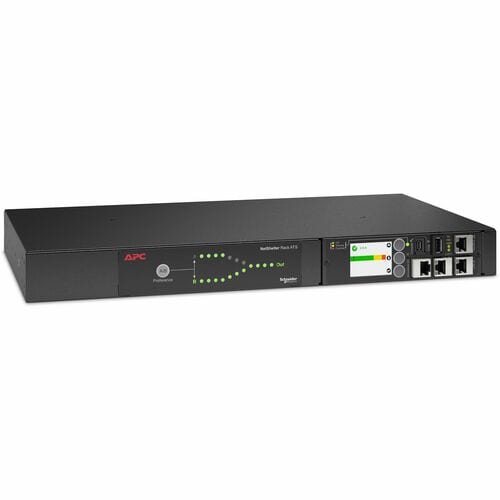

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4452A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L5-20P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Current | 20 A |
| Technical Information | |
| Receptacles | 10 x NEMA 5-20R |
| Plug/Connector Type | NEMA L5-20P 16A (2P + E) |
| Cord Length | 96" (2438.40 mm) |
| General Information | |
| Product Type | Automatic Transfer Switch |
| Manufacturer Part Number | AP4452A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Line | NetShelter |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 9.70 lb (4399.85 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.29" (236 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Rear | |
| Mounting Preference | Horizontal |
| No Preference | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4452A_ROHS_DECLARATION&p_FileName=AP4452AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241373&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241373&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712015_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712015_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
