Acerca del producto

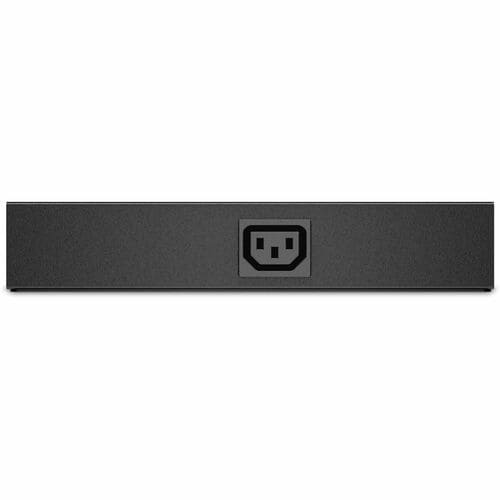

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 15A and operates at 100-240V. The PDU features 8 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes an IEC 60320 C14 plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| PDU Type | Basic |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP6015A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic PDU |
| Product Line | Basic |
| Product Series | Rack |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 2.01 lb (911.72 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Front |
| Rear | |
| Height | 9.45" (240 mm) |
| Width | 1.73" (44 mm) |
| Depth | 3.66" (93 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Power Description | |
| Input Voltage | 240 V |
| 100 V | |
| 120 V | |
| 230 V | |
| 208 V | |
| 200 V | |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 208 V AC | |
| 100 V AC | |
| 120 V AC | |
| 200 V AC | |
| Input Current | 15 A |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CE|EAC|IRAM|UL Listed|VDE |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562834&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562834&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
