Acerca del producto

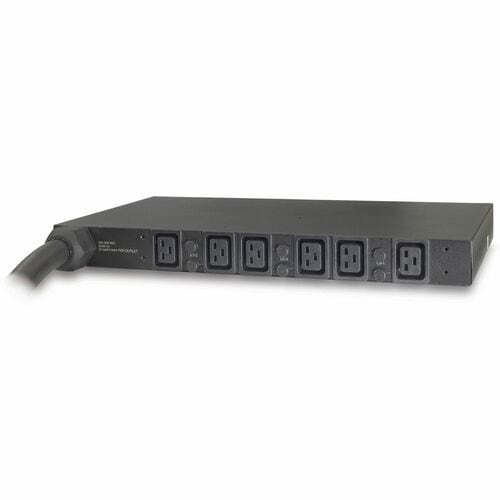

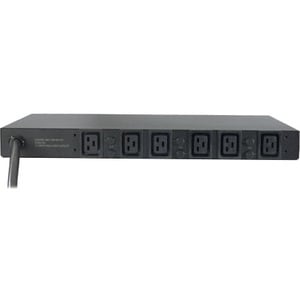

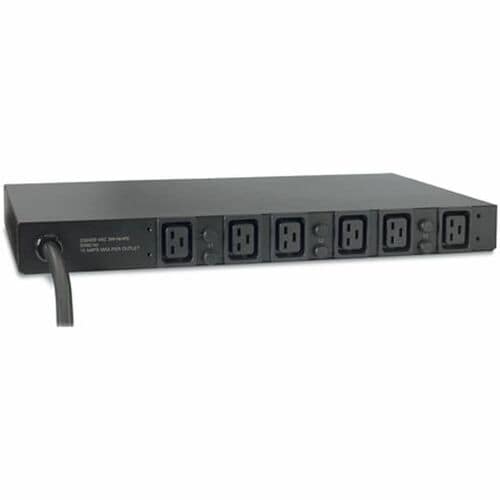

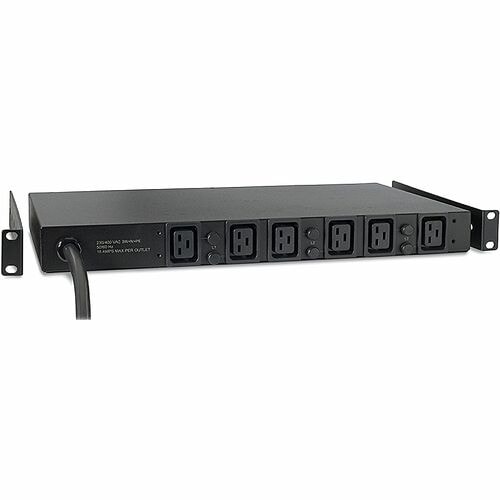

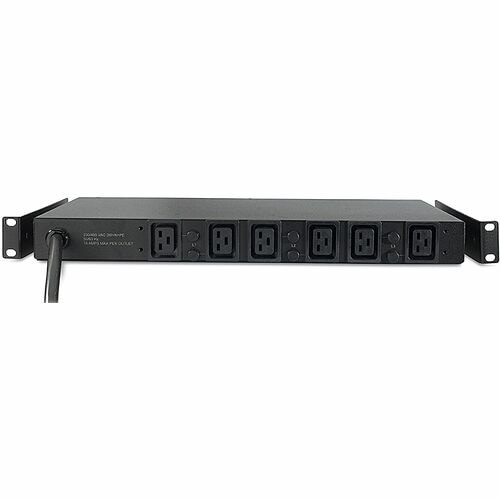

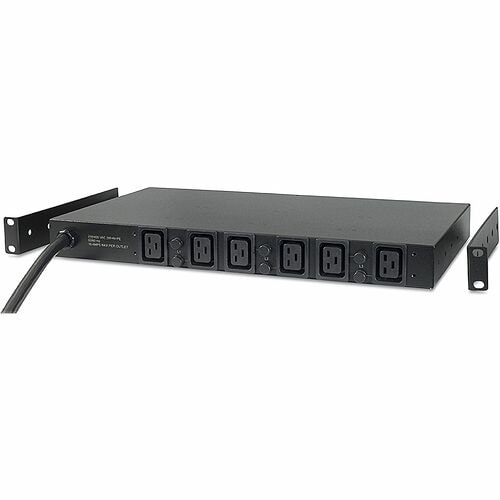

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
- PDU is reliable for power protection and management solutions
- PDU distributes AC power to multiple servers and balances the load on the servers
- Basic PDU is the space-saving and cost-effective way to deliver power
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 200 V AC |
| 208 V AC | |
| Power Rating (Watt) | 14.40 kW |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C19 |
| PDU Type | Basic |
| Receptacle Detail | 6 x IEC 60320 C19 |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7516 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 14.4kW 40A PDU |
| Product Line | Basic Rack |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 17.59 lb (7978.69 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Rear |
| Front | |
| Cord Length | 8 ft (2.44 m) |
| Height | 1.73" (44 mm) |
| Width | 17.20" (437 mm) |
| Depth | 10" (254 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|METI Denan|UL Listed |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759076&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759076&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
