Acerca del producto

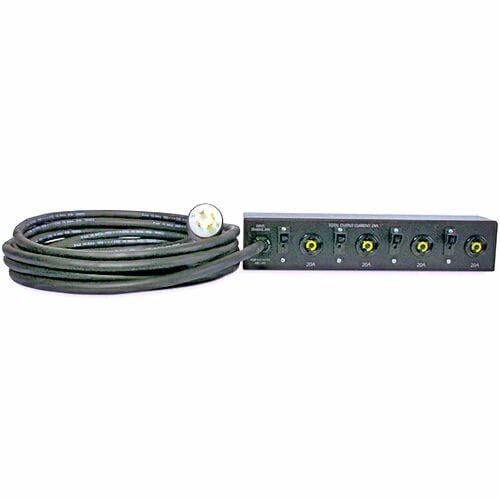

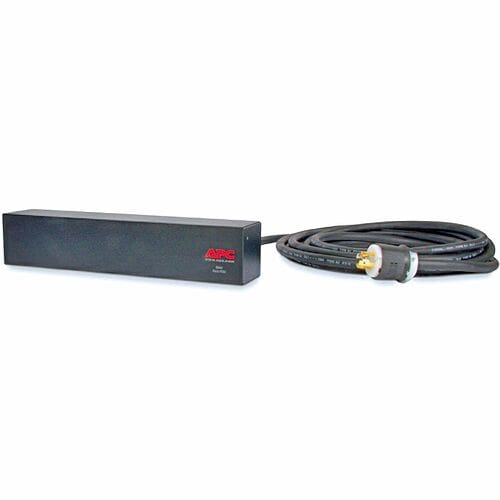

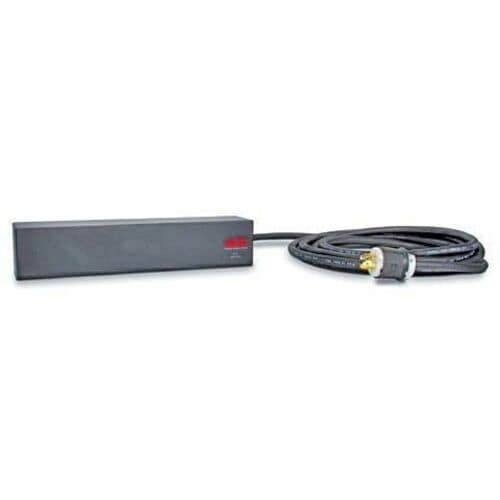

Es una PDU básica para rack con diseño de montaje horizontal de 2U. Admite una corriente de entrada máxima de 30 A y funciona a 120 V y 208 V. La PDU cuenta con 4 tomacorrientes NEMA L5-20R que permiten la conexión de equipos informáticos. Incluye un cable de alimentación de 8,5 metros con un enchufe NEMA L14-30P. La unidad está diseñada para una distribución de energía fiable e incluye una guía de instalación y soportes para montaje en rack.
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Parts Warranty/Labor | 2 Year |
| Technical Information | |
| Plug/Connector Type | NEMA L14-30P |
| Receptacle Type | NEMA L5-20R |
| PDU Type | Basic |
| Receptacle Detail | 4 x NEMA L5-20R |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 208 V |
| 120 V | |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 4.99 kVA |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7580 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 4.992kVA PDU |
| Product Line | Basic Rack |
| Brand Name | APC by Schneider Electric |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|METI Denan|UL Listed |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759124&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759124&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 14.02 lb (6359.37 g) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Placement | Rear |
| Front | |
| Cord Length | 28 ft (8.53 m) |
| Height | 3.50" (89 mm) |
| Width | 17.20" (437 mm) |
| Depth | 3.50" (89 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | Lower |
