Acerca del producto

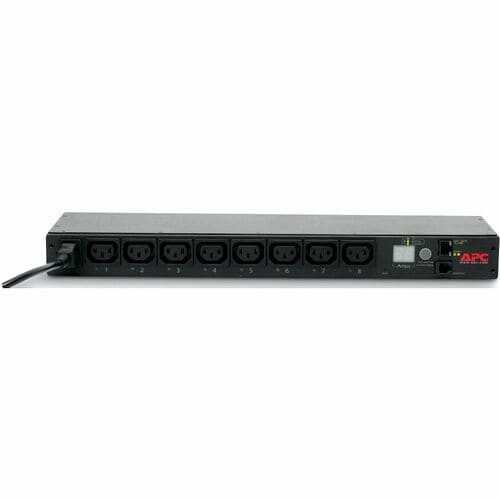

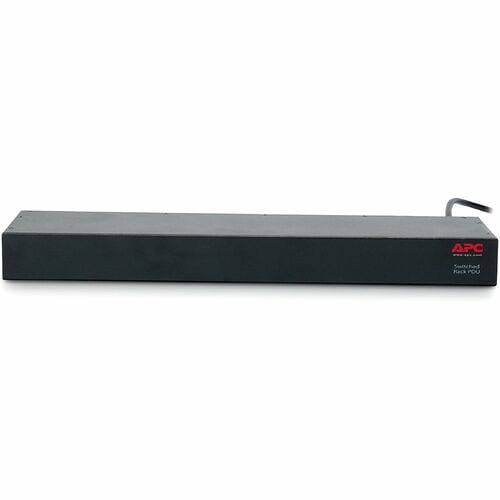

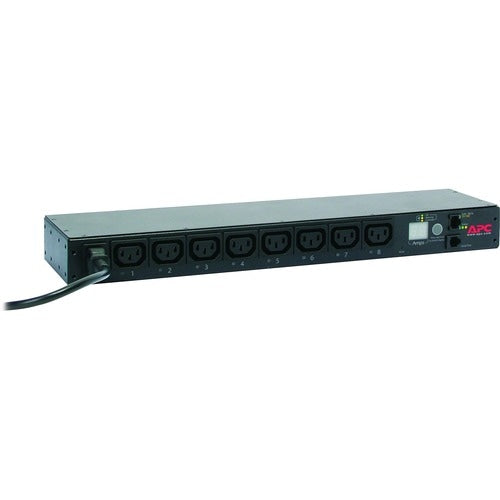

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- PDU provides power control as remote controlled relay & load monitoring
- With switched PDU, remotely monitor, connect or disconnect data center loads
- With a built-in digital current meter avoid potential overloads via switched PDUs
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| PDU Type | Switched |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7920B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Switched, 1U, 12A/208V, 10A/230V, (8)C13 |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 230 V |
| 208 V | |
| 200 V | |
| Output Voltage | 230 V AC |
| 208 V AC | |
| Input Current | 15 A |
| Physical Characteristics | |
| Weight (Approximate) | 5 lb (2267.96 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Front |
| Rear | |
| Cord Length | 6.5 ft (1.98 m) |
| Height | 1.73" (44 mm) |
| Width | 17.52" (445 mm) |
| Depth | 4.25" (108 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CE|CSA|GOST|IRAM|UL Listed|VDE |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7920B_ROHS_DECLARATION&p_FileName=AP7920BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562851&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562851&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
