Acerca del producto

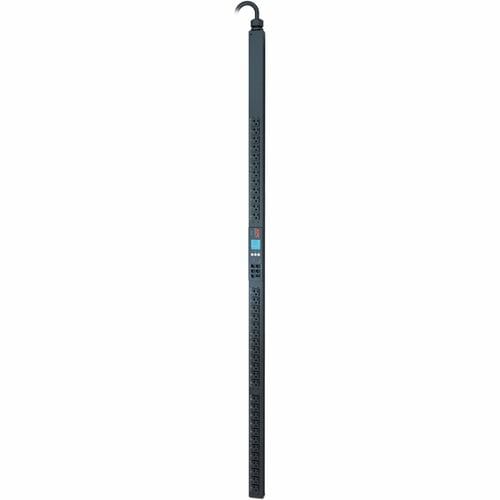

Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
- PDU allows power to be more efficiently distributed and controlled
- Monitor load level efficiently with PDU meter
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Especificaciones técnicas
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 5.76 kVA |
| Technical Information | |
| Protection Type | Circuit Protection |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Metered |
| Receptacle Detail | 36 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8862 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Metered Rack PDU |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 13.32 lb (6041.85 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 6 ft (1.83 m) |
| Height | 70.51" (1791 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.73" (44 mm) |
| Number of Cord/Cable | 1 |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8862_ROHS_DECLARATION&p_FileName=AP8862KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134893&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134893&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
