Acerca del producto
Las unidades de distribución de energía (PDU) para rack con medidor permiten la monitorización remota en tiempo real de las cargas conectadas. Las alarmas definidas por el usuario advierten sobre posibles sobrecargas del circuito antes de que se produzcan fallos críticos de TI.
Especificaciones técnicas
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8870 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |

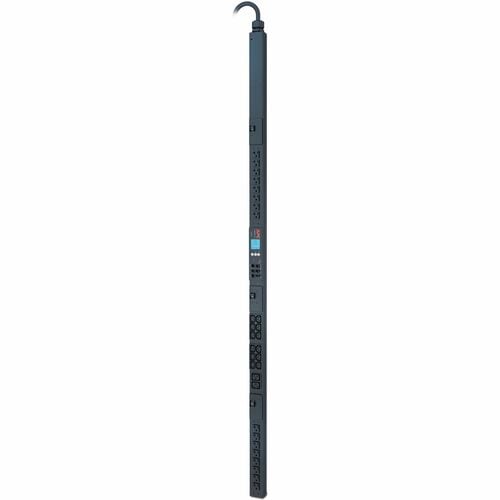

| Product Name | Metered Rack PDU |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V |
| 208 V | |
| Output Voltage | 120 V AC |
| Input Current | 30 A |
| Input Voltage Range | 120 V AC - 230 V AC |
| Power Rating (VA) | 5.76 kVA |
| Technical Information | |
| Protection Type | Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | NEMA L14-30P |
| Receptacle Type | NEMA 5-20R |
| IEC 60320 C19 | |
| IEC 60320 C13 | |
| PDU Type | Metered |
| Receptacle Detail | 12 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| 16 x NEMA 5-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 14.07 lb (6382.04 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 9.8 ft (3 m) |
| Height | 70.51" (1791 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.73" (44 mm) |
| Number of Cord/Cable | 1 |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8870_ROHS_DECLARATION&p_FileName=AP8870KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134899&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134899&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
