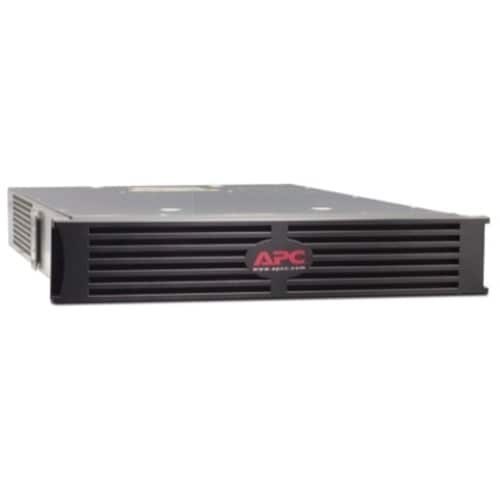

This Step-Down Transformer converts high voltage (208V or 200V) input into low voltage (120V or 100V) output, making it ideal for powering low voltage AC equipment. It supports a load capacity of 5000VA and has a maximum total current draw per phase of 20A. The transformer features a 2U rack height and includes four NEMA L5-20R output receptacles. The unit includes rack mounting brackets and user manual.
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V |
| Maximum Line Current | 26 A |
| Technical Information | |
| Power Rating | 5 kVA |
| Cord Length | 24" (609.60 mm) |
| Input Receptacle Type | NEMA L6-30P |

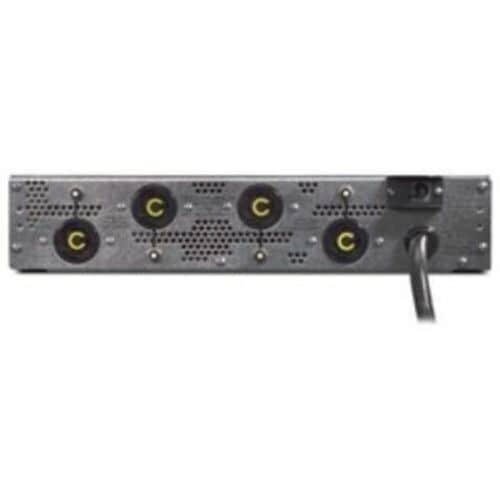

| Output Receptacle Detail | 4 x NEMA L5-20R |
| Output Receptacle Type | NEMA L5-20R |
| General Information | |
| Product Type | Step Down Converter |
| Manufacturer Part Number | AP9627 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Step-Down Rack-mountable Transformer |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 95.20 lb (43181.99 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (89 mm) |
| Width | 17.52" (445 mm) |
| Depth | 24.02" (610 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CSA|UL Listed |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759640&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759640&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
