Fanless Embedded Computers
Advantech Fanless Embedded Computers are embedded systems engaged in edge computing and highly suitable for remote monitoring and control. Advantech fanless pc offers diverse modular and ready-to-order I/O products to help customers maximize the resulting benefits and rapidly implement diverse applications, such as motion control, machine vision, and rolling stock.
- Intel Atom E3940 Quad Core SoC
- Dual HDMI independent display support 4K2K resolution
- 1 x Full-size miniPCIe with SIM holder for communication module

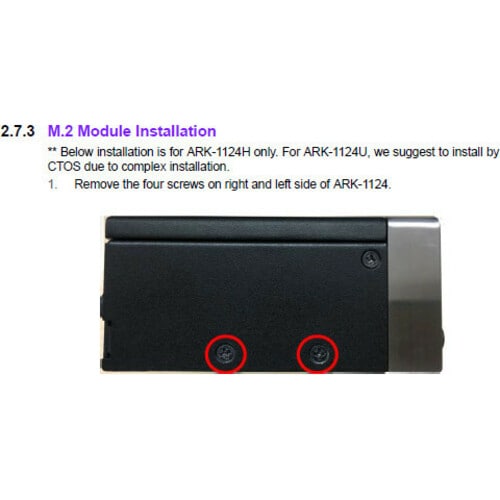

- 1 x M.2 E Key for WIFI module
- 1 x 2.5" SATA III SSD/HDD and 1 x mSATA
- TPM built in for well security
- -20 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Optional 12~24V power module (Dual Layer)
- Advantech iDoor module compatible (Dual Layer)
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |

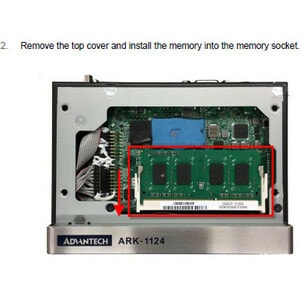

| Total Number of Memory Slots | 1 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Maximum Power Supply Wattage | 60 W |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 500 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |

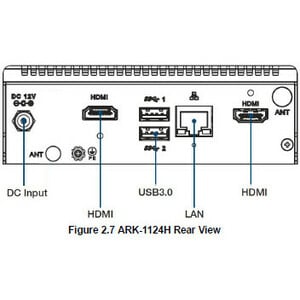

| HDMI (Rear) | Yes |

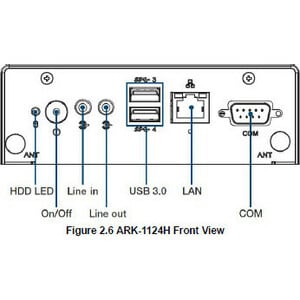

| Number of USB 3.0 Ports (Front) | 2 |
| Number of USB 3.0 Ports (Rear) | 2 |
| Processor | |
| Processor Speed | 1.60 GHz |
| Processor Type | Atom x5 |
| Processor Model | x5-E3940 |
| Processor Manufacturer | Intel |
| Physical Characteristics | |
| Weight (Approximate) | 1.54 lb (700 g) |
| Form Factor | Box PC |

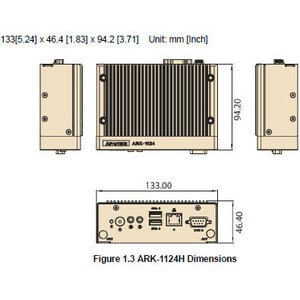

| Height | 1.83" (46.40 mm) |
| Width | 5.24" (133 mm) |
| Depth | 3.71" (94.20 mm) |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | ARK-1124H-S6A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |

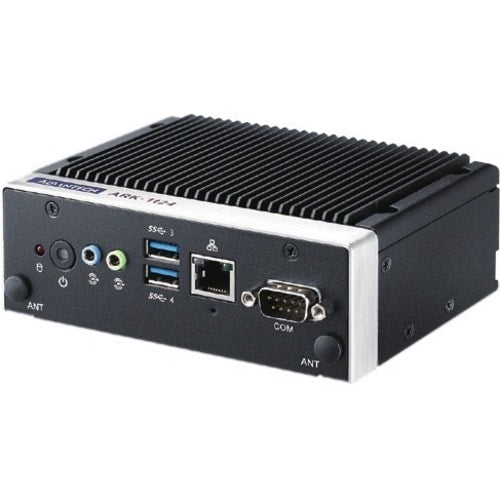

| Product Model | ARK-1124H |
| Product Name | ARK-1124H Desktop Computer |
| Product Series | ARK-1000 |
| Brand Name | Advantech |
