Acerca del producto
- Intel® Atom E3825 Dual Core 1.33 GHz & E3845 Quad Core 1.91 GHz SoC
- 4 PoE Ports to Support Mainstream IP Cameras
- Isolated COM ports and DIO
- Diversity Communication Abilities, ex. WWAN, WLAN
- Intelligent Vehicle Power Ignition
- 11 ~ 36 VDC* Wide Power Input w/isolation
- 1 x Removable 2.5" drive bay
- Supports iManager, SUSIAccess and Embedded Software APIs
- Up to -40 ~ 70 °C wide temperature support (by project)
Especificaciones técnicas
| Memory | |
| Standard Memory | 8 GB |
| Power Description | |
| Power Consumption | 36 W |
| Video | |
| Maximum Resolution | 2560 x 1600 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Height | 5.23" (132.84 mm) |
| Width | 10.41" (264.41 mm) |
| Depth | 2.72" (69.09 mm) |
| Technical Information | |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of VGA Out | 1 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| General Information | |
| Product Type | Video Surveillance Station |
| Manufacturer Part Number | ARK-2121V-S9A2E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ARK-2121V |

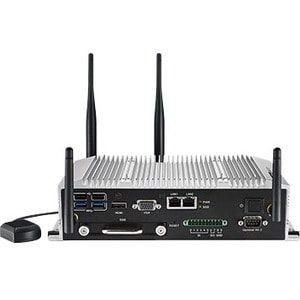

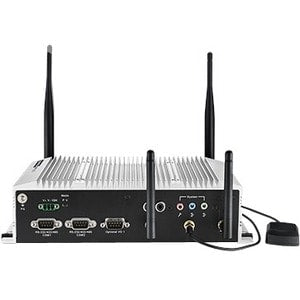

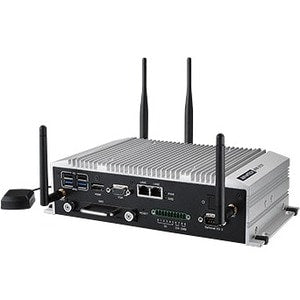

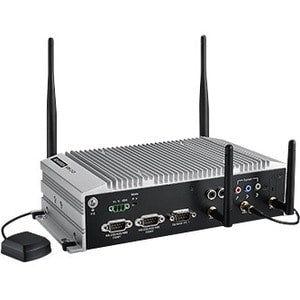

| Product Name | In-Vehicle NVR w/4 PoE Ports Intel Atom E3825 / Atom E3845 SoC Fanless Box PC |
| Brand Name | Advantech |
