Acerca del producto

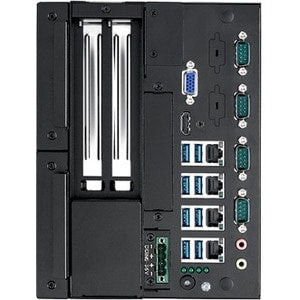

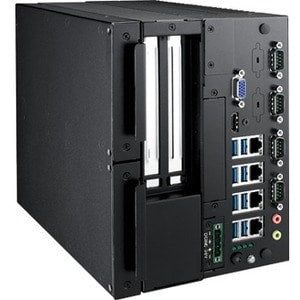

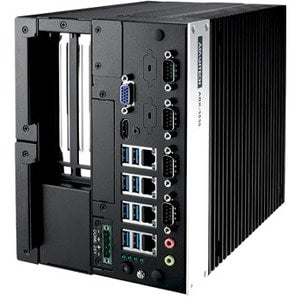

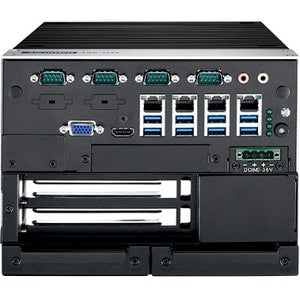

ARK-3000 Series: High Performance Fanless Embedded Computers
ARK-3000 series features high performance computing Intel Core i and Xeon, mini PCIe expansion cards, multi IO expansions, and wide temperature range, being ideal for automation system, machine automation, factory automation, IoT platforms, and cabinet integration.
- Support Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processor
- Triple independent display: VGA + HDMI + Optional Display
- DDR4 SO-DIMM memory support up to 32 GB
- 9-36V power module compatible with all-in-one ordering
- Optional modular design for 2.5" hard drive bays: internal /removable (support up to 4 sets)
- Advantech iDoor module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
Especificaciones técnicas
| Controllers | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 2 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics 630 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Operating System | |
| Operating System Supported | Windows 7 |
| Windows 10 | |
| Linux | |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 8 |
| Number of VGA Ports | 1 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 12.94 lb (5870 g) |
| Form Factor | Desktop |
| Height | 8.07" (205 mm) |
| Width | 6.16" (156.50 mm) |
| Depth | 9.06" (230 mm) |
| Processor | |
| Processor Supported | Xeon |
| Core i5 | |
| Core i7 | |
| Core i3 | |
| Processor Socket | Socket H4 LGA-1151 |
| Number of Processors Supported | 1 |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | ARK-3530F-00A1 |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ARK-3530F |
| Product Name | ARK-3530F Barebone System |
| Brand Name | Advantech |
