Acerca del producto

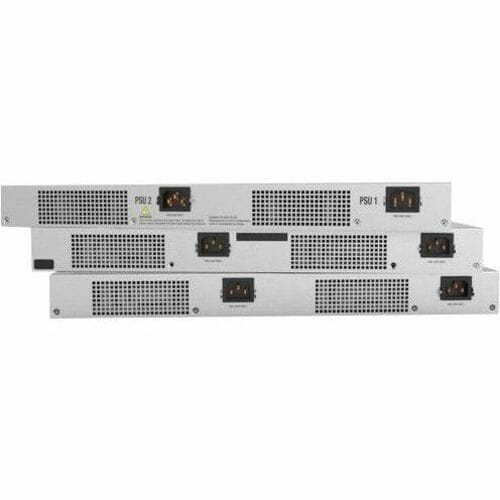

Stackable Multi-Gigabit Layer 3 Switches
The Allied Telesis x530 Series of stackable Multi-Gigabit Layer 3 switches feature high capacity, resiliency and easy management, making them the ideal choice for demanding distribution and high-speed connectivity applications.
Overview
Allied Telesis x530 Series switches are a high-performing and featurerich choice for today's networks. They offer a versatile solution for enterprise applications. With 20 or 40 x 10M/100M/1 Gigabit ports, 4 or 8 x 100M/1/2.5/5 Gigabit ports, and 10 Gigabit uplinks, plus the power of Virtual Chassis Stacking (VCStack™), the x530 Series can connect any size business.
Network automation
Vista ManagerTM EX bundled with Allied Telesis Autonomous Management FrameworkTM (AMF) meets the increasing management requirements of modern networks. While AMF allows an entire network to be securely and easily managed as a single virtual device, Vista Manager EX provides an intuitive and powerful graphical tool for monitoring and managing AMF wired and Autonomous Wave Control (AWC) wireless devices.
Device and network management
The Device GUI enables graphical monitoring of key switch features to support easy management.
Integrated into the Device GUI, Vista ManagerTM mini supports visibility and management of AMF wired and AWC wireless network devices, making it ideal as a one-stop solution for small to medium-sized networks.
AWC is an intelligent, easy to use Wireless LAN controller that automatically maintains optimal wireless coverage. Vista Manager mini includes AWC floor and heat maps showing wireless coverage. It also supports AWC Channel Blanket hybrid operation, providing maximum performance and seamless roaming, as well as AWC Smart Connect for simplified deployment, and a resilient Wi-Fi network solution using wireless uplink connectivity
Resilient
Allied Telesis Ethernet Protection Switched Ring (EPSRingTM) and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.
x530 Series can form a VCStack of up to eight units. In conjunction with link aggregation, VCStack provides an enhanced resiliency with no single point of failure to meet today's increasing demand for high-available networks with minimal downtime.
With Long Distance Stacking (VCStack LD), it allows stacks to be created over fibre links, making the x530 Series the perfect choice for distributed environment.
- Allied Telesis Autonomous Management FrameworkTM (AMF)
- VCStackTM up to 8 units locally, or over long distance
- Multi-Gigabit Ethernet ports for 1G/2.5G/5G
- 2.5/5G for high-speed wireless APs
- Up to 60W PoE++ power per port (x530DP models)
- EPSRTM (master and transit) and G.8032 ERPS for resilient rings
- OpenFlow for SDN
- Active Fiber Monitoring (AFM)
- Upstream Forwarding Only (UFO)
- VLAN Translation
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 150 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 1.48 kW |
| Physical Characteristics | |
| Weight (Approximate) | 12.35 lb (5600 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.36" (441 mm) |
| Depth | 16.57" (421 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | ATX530DP52GHXM |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | x530DP-52GHXM |
| Product Name | x530DP-52GHXM Layer 3 Switch |
| Product Series | x530 |
| Brand Name | Allied Telesis |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 8 x 5 Gigabit Ethernet PoE++ |
| 40 x Gigabit Ethernet PoE++ | |
| 4 x 10 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| 5GBase-T | |
| Ethernet Technology | 5 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1AX |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.2 | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3bt | |
| IEEE 802.3bz | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab | |
| IEEE 802.1ag |
