Allied Telesis

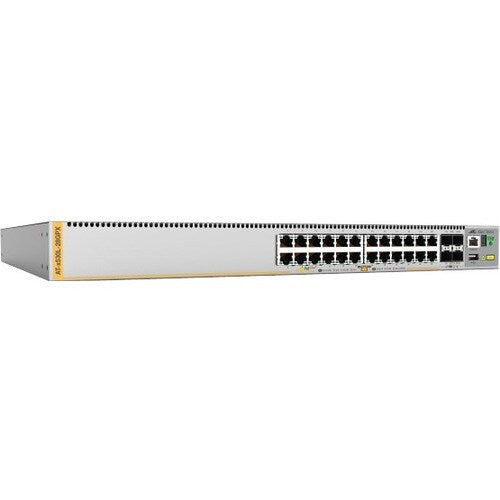

SW APILABLE L3 24 puertos 10/100/1000-T POE+ 4 puertos SFP+
SW APILABLE L3 24 puertos 10/100/1000-T POE+ 4 puertos SFP+
VPN:AT-X530L-28GPX-90 SKU:237274NDN UPC:
- Puerto Gigabit Ethernet para velocidades de red ultrarrápidas
- Hasta 10 veces más rápido que la conectividad de servidor Ethernet estándar al tiempo que proporciona enlaces ascendentes de alto rendimiento
- El montaje en rack le permite organizar cables y asegurarlos para una instalación profesional.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
SW APILABLE L3 24 puertos 10/100/1000-T POE+ 4 puertos SFP+
Resumen de información del producto

Acerca del producto
The TAA Compliant x530L-28GPX stackable Gigabit Layer 3 switch is high-performing and feature-rich, with 24 x 10M/100M/1G PoE+ ports, and 4 x 10G uplinks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 24 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
Management & Protocols | |
Manageable | Yes |
I/O Expansions | |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Total Number of Expansion Slots | 4.0 |
Media & Performance | |
Network Technology | 10/100/1000Base-T |
10GBase-X | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Twisted Pair | |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
China Restriction of Hazardous Substances (China RoHS) | |
Physical Characteristics | |
Weight (Approximate) | 13.67 lb (6200 g) |
Form Factor | Rack-mountable |
Height | 1.73" (44 mm) |
Width | 17.36" (441 mm) |
Depth | 16.57" (421 mm) |
Power Description | |
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 70 W |
Number of Power Supplies Installed | 2 |
PoE (RJ-45) Port | Yes |
PoE Budget | 740 W |
General Information | |
Product Type | Layer 3 Switch |
Manufacturer Part Number | AT-X530L-28GPX-90 |
Manufacturer Website Address | http://www.alliedtelesis.com |
Manufacturer | Allied Telesis, Inc |
Product Model | X530L-28GPX |
Product Name | X530L-28GPX Layer 3 Switch |
Product Series | x530L |
Brand Name | Allied Telesis |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
24 x Gigabit Ethernet PoE+ | |
2 x Stack | |
Network & Communication | |
Layer Supported | 3 |
Networking Standards | IEEE 802.1ag |
IEEE 802.3x | |
IEEE 802.3u | |
IEEE 802.3bz | |
IEEE 802.3bt | |
IEEE 802.3az | |
IEEE 802.3at | |
IEEE 802.3af | |
IEEE 802.3ae | |
IEEE 802.3ad | |
IEEE 802.3ac | |
IEEE 802.3ab | |
IEEE 802.1ab | |
IEEE 802.1ad | |
IEEE 802.3z | |
IEEE 802.1D | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1s | |
IEEE 802.1v | |
IEEE 802.1w | |
IEEE 802.1x | |
IEEE 802.2 | |
IEEE 802.3 |
