Acerca del producto

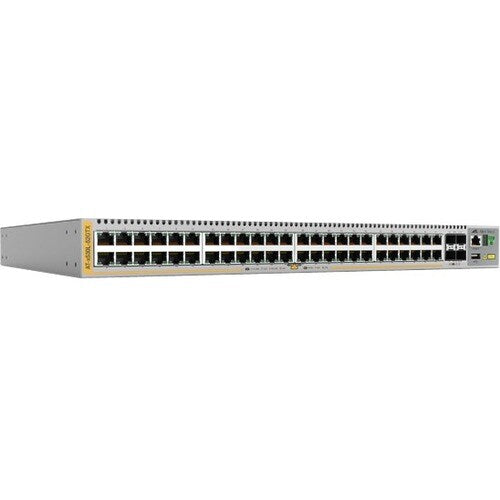

The TAA Compliant x530L-52GTX stackable Gigabit Layer 3 switch is high-performing and feature-rich, with 48 x 10M/100M/1G ports, and 4 x 10G uplinks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 48 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 60 W |
| Number of Power Supplies Installed | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 11.46 lb (5200 g) |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Height | 1.73" (44 mm) |
| Width | 17.36" (441 mm) |
| Depth | 12.72" (323 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | AT-X530L-52GTX-90 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | X530L-52GTX |
| Product Name | X530L-52GTX Layer 3 Switch |
| Product Series | x530L |
| Brand Name | Allied Telesis |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 2 x Stack |
| 4 x Gigabit Ethernet Expansion Slot | |
| 48 x Gigabit Ethernet Network | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1D |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.2 | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3az | |
| IEEE 802.3bz | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab | |
| IEEE 802.1ad | |
| IEEE 802.1ag | |
| IEEE 802.1p | |
| IEEE 802.1Q |
