Not for sale in California until further notice.

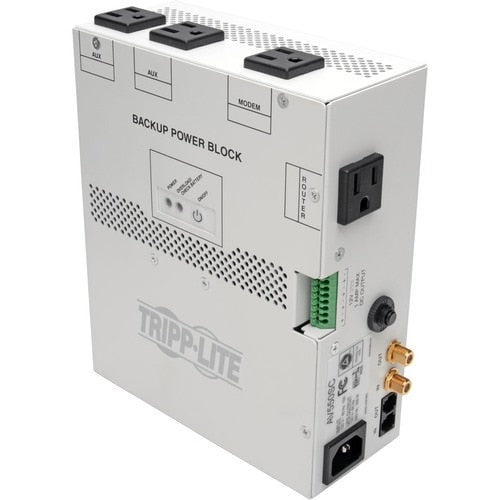

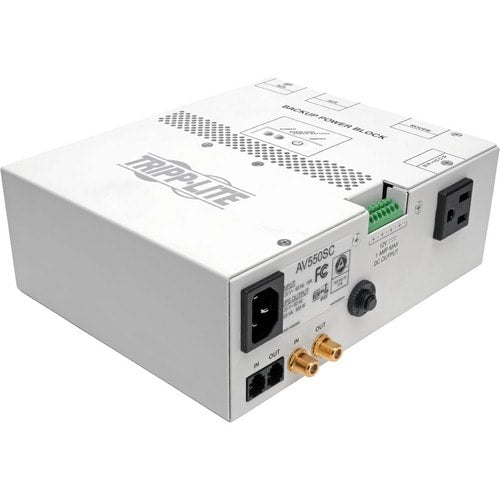

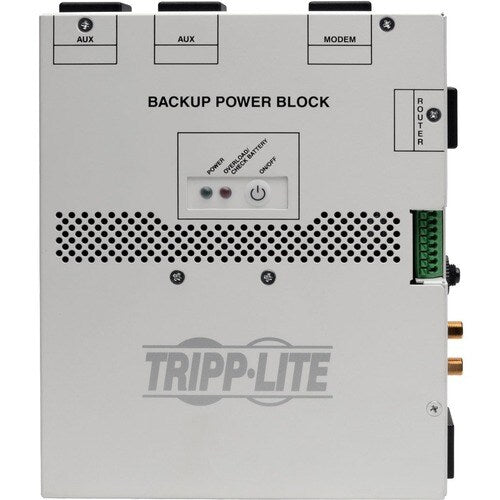

The AV550SC Backup Power Block provides the highest level of protection for structured cabling installations (ie. telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, the AV550SC provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, the AV550SC includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the AV550SC features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.

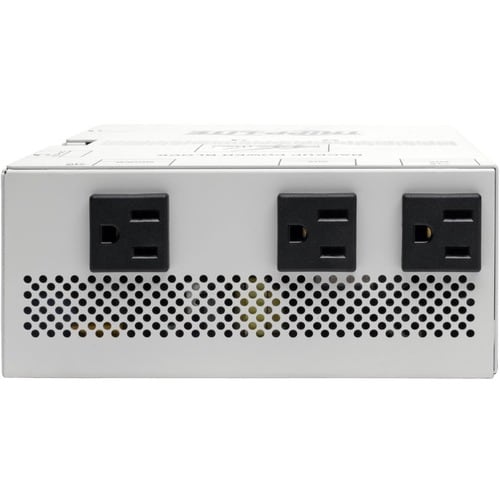

- 4 AC outlets (including 1 delay-on outlet for router)
- Automatic recycle/reset button; Auto-restart capability

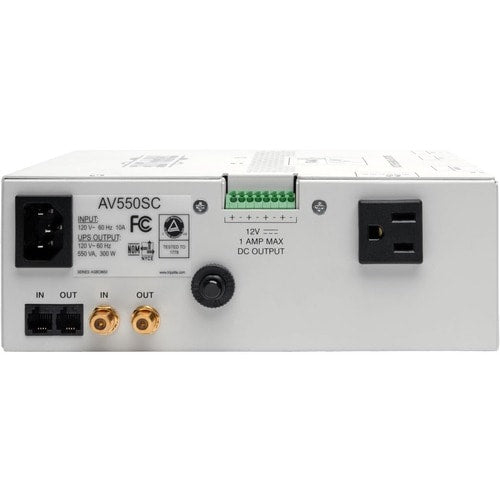

- Regulated 12V DC output for 4 devices; Complete surge suppression

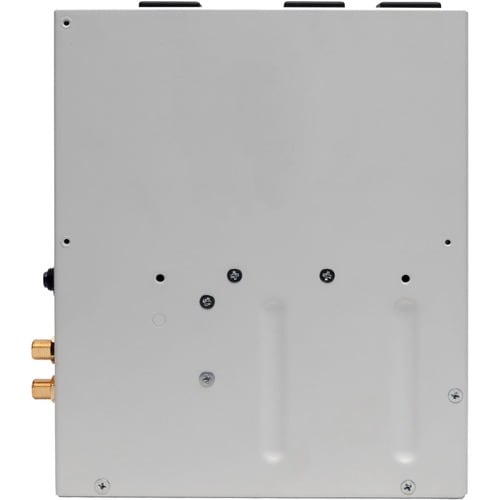

- Convenient installation fits structured wiring enclosures without using mounting
- screws or brackets
- HD-compatible 2.2GHz coaxial and telephone/modem/DSL line surge protection; 550VA UPS capacity
Especificaciones técnicas
| Battery Information | |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Typical Battery Recharge Time | 9 Hour |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 4 x NEMA 5-15R |
| Miscellaneous | |

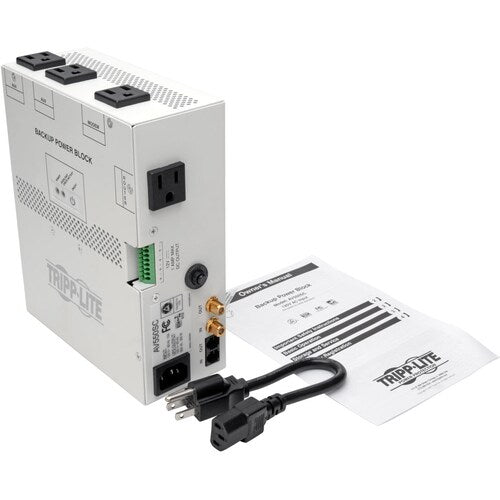

| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.80 lb (3538.02 g) |
| Form Factor | Tower |
| Height | 8.40" (213.36 mm) |
| Width | 6.80" (172.72 mm) |
| Depth | 3" (76.20 mm) |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | AV550SC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | AV550SC |
| Product Name | AV550SC 550VA Tower UPS |
| Brand Name | Tripp Lite by Eaton |
