750VA/450W/120V Battery Backup for Digital Signage and Home/Office Networks
The AVR750UNC line-interactive cloud-connected UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computers, routers, gaming systems, ATMs, security systems, digital signage and other home/office networking equipment.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer

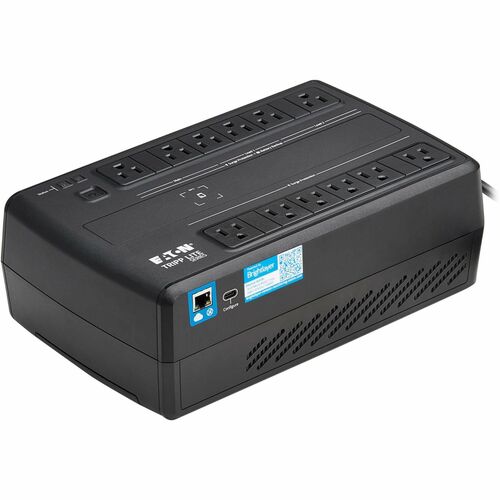

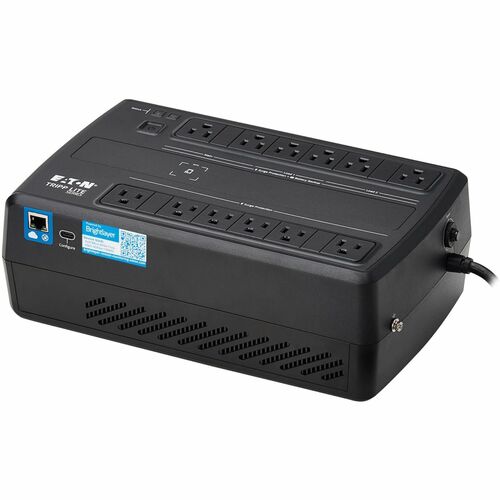

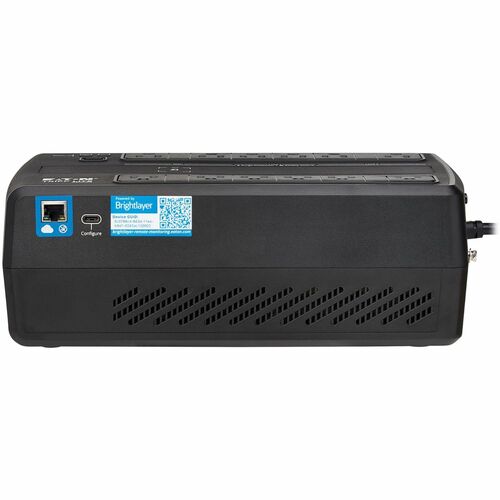

Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control outlet banks using a mobile app or web browser. Being able to monitor and access an army of UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) area lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
The AVR750UNC restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit. During short blackouts and brownouts, the AVR750UNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage.
Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better

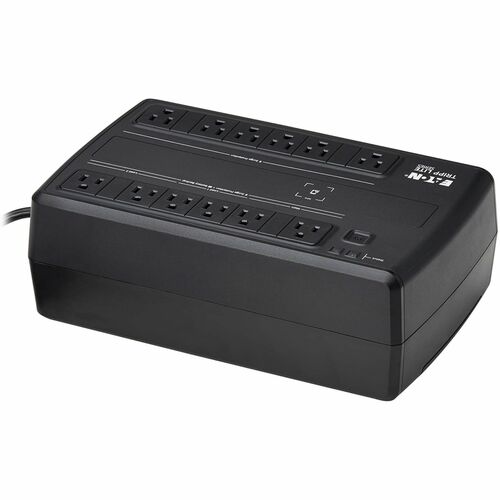

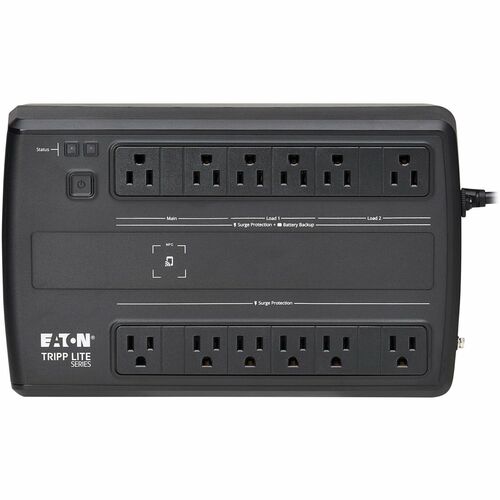

Rated for 316 joules of surge suppression, the AVR750UNC and all 12 NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The AVR750UNC also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime. Four outlets are set apart from the others to allow connection of bulky transformers.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The AVR750UNC can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Easy Preventative Maintenance and Initial Troubleshooting

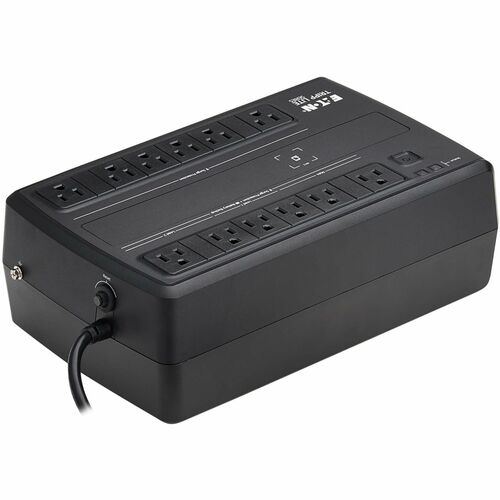

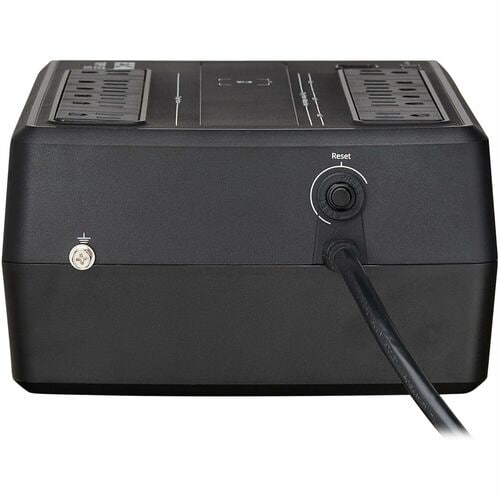

The AVR750UNC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status. The audible alarm can be disabled via the remote monitoring app, which will still respond to silenced alarms.
Hardened Housing Compatible with Versatile Deployment Options

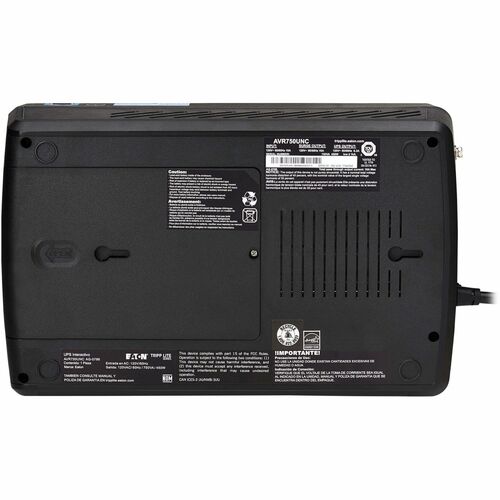

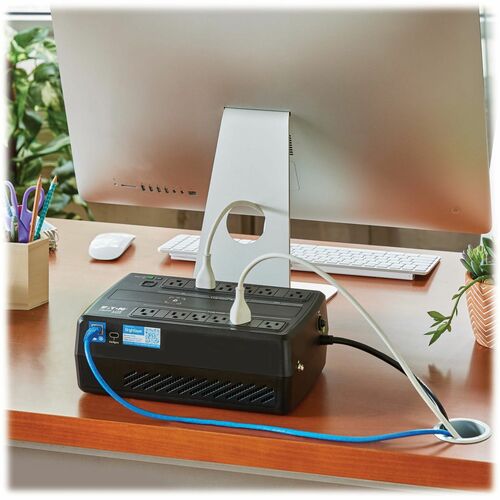

The flatpack housing allows use in locations with higher ambient temperatures (operating temperature range: 32° to 104°F / 0° to 40°C). The AVR750UNC's small size is suitable for desktop or floor placement. Keyhole slots on the bottom allow wall mounting. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
- Works adequately in situations where the supply is prone to sags and surges
- 750 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 450 W load capacity
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LED |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 41 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 15.84 lb (7184.90 g) |
| Form Factor | Surface/Desktop/Tower/Wall Mountable |
| Height | 4.13" (105 mm) |
| Width | 7.48" (190 mm) |
| Depth | 12.01" (305 mm) |
| Management | |
| Network Management | Network Card |
| Alarm | Overload |
| Fault | |
| Battery Mode | |
| Low Battery | |
| Replace Battery | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Vietnam |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 8 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | AVR750UNC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | AVR750UNC |
| Product Name | AVR750UNC 750VA Surface/Desktop/Tower/Wall Mountable UPS |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Surge Energy Rating | 316 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Input Voltage Range | 89 V AC - 145 V AC |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 60 Hz |
| 50 Hz | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Output Power Factor | 0.63 |
| Technical Information | |
| Application/Usage | Computer Peripheral |
| Audio/Video Equipment | |
| ATM | |
| Tablet | |
| Smartphone | |
| Security System | |
| Router | |
| Network | |
| Home/Office | |
| Equipment | |
| Digital Signage | |
| Desktop Computer | |
| Computer | |
| Features | Cold Start Function |
| Audible Alarm | |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | Green Energy-Saving |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
