Acerca del producto

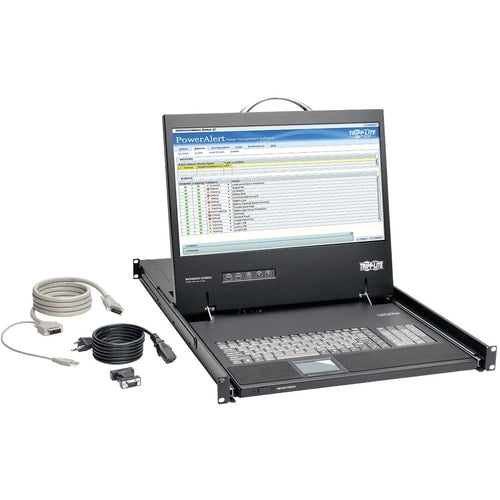

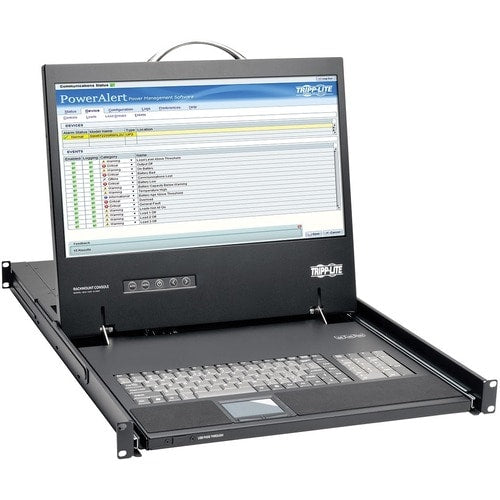

The B021-000-19-HD2 1U Rack-Mount Console combines a full keyboard, numeric keypad, touchpad and 19-inch color LCD for easy all-in-one control of a computer, server or KVM switch. Easy to install and simple to operate, it slides neatly into 1U of rack space when not in use.

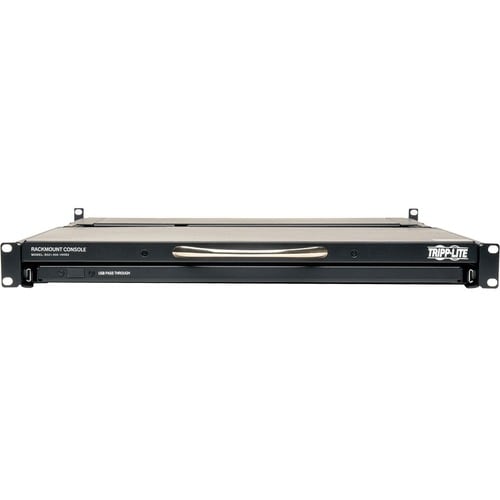

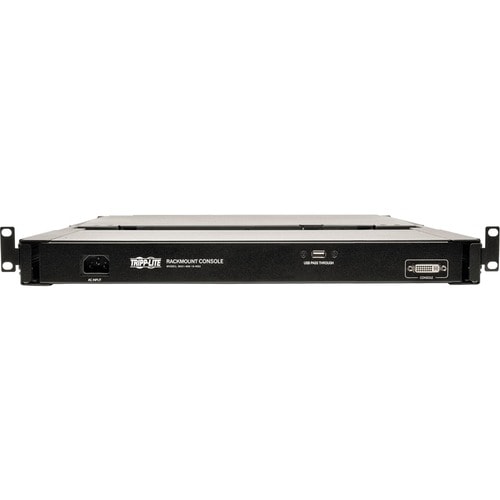

The rear DVI-I console port supports both digital and analog video signals for connecting to a DVI- or VGA-enabled server or KVM switch (a DVI to VGA adapter is included). The LCD screen supports video resolutions up to 1920 x 1080 (1080p). Video settings of the connected computer are automatically adjusted for optimal display on the LCD screen. USB 2.0 pass-through ports on the front and rear allow you to connect a USB peripheral, such as a flash drive or CAC card reader, to your computer with a USB cable (sold separately).

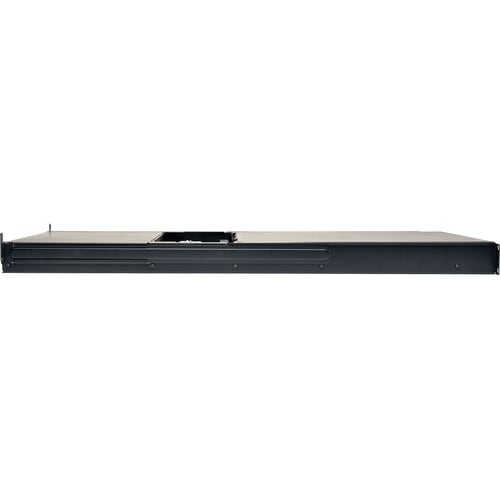

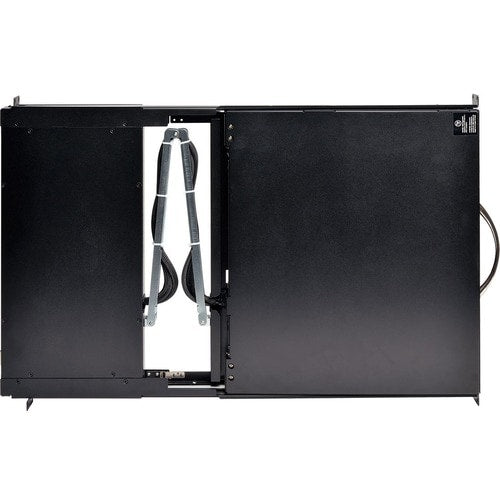

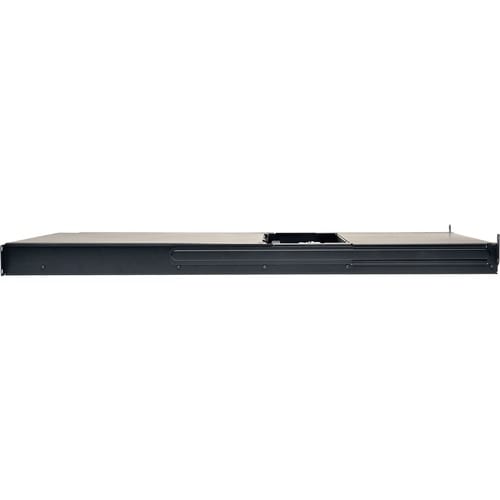

The B021-000-19-HD2 mounts into 1U of space in an EIA-standard 19-inch rack using the included mounting brackets and user-supplied screws. Simply pull out the steel drawer and flip up the screen when needed, then slide it back into the rack in automatic sleep mode when you're finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use.
This console is compatible with all major operating systems and KVM switches with a VGA or DVI monitor port and USB keyboard/mouse ports. This enables the B021-000-19-HD2 to be integrated into an existing system to provide secure management of critical network systems without a major investment in new hardware.
Especificaciones técnicas
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Number of DVI Ports | 1 |
| Technical Information | |
| KVM Switch | No |
| Number of Computers Supported | 1 |
| Device Type | LCD Rack Console |
| Display & Graphics | |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 19" |
| Screen Mode | Full HD |
| Display Screen Type | LCD |
| General Information | |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | B021-000-19-HD2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B021-000-19-HD2 |
| Product Name | 1U Rack-Mount Console |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 27.78 lb (12600 g) |
| Rack Height | 1U |
| Height | 1.70" (43.20 mm) |
| Width | 18.78" (477 mm) |
| Depth | 27.26" (692.40 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Linux |
| Mac | |
| Unix | |
| PC | |
| Sun | |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
