Switches Devices
Expected delivery 3 to 7 business days (exceptions applied)
Tripp Lite
Consola KVM de 16 puntos con pantalla LCD de 19 pulgadas, 1U
Consola KVM de 16 puntos con pantalla LCD de 19 pulgadas, 1U
- Utiliza solo 1U de espacio en un cajón montable en rack
- La pantalla LCD de 19" admite resoluciones de video de hasta 1366 x 768
- Simplifica las tareas de TI con un cambio sencillo entre los 16 puertos
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles



Recently Viewed
Consola KVM de 16 puntos con pantalla LCD de 19 pulgadas, 1U
Resumen de información del producto

Acerca del producto

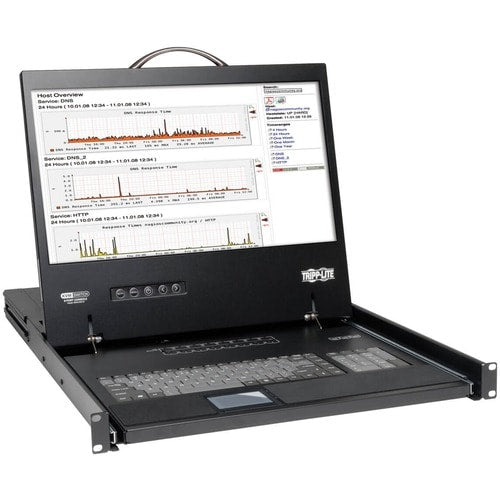

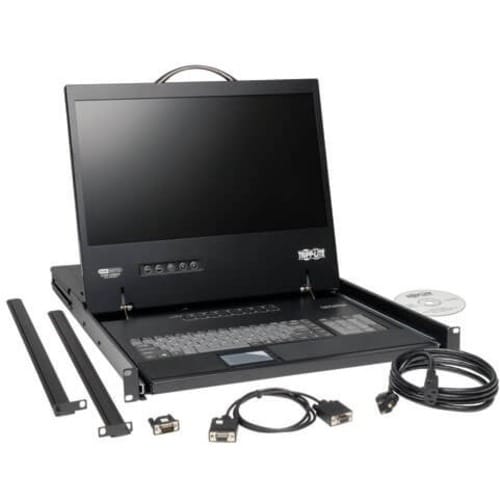

Tripp Lite's B040-016-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the cost-effective solution for controlling up to 16 directly connected computers/servers.
The B040-016-19 has a built-in 19" LCD screen supports video resolutions up to 1366 x 768. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Password protection prohibits unauthorized users from accessing the connected computers.

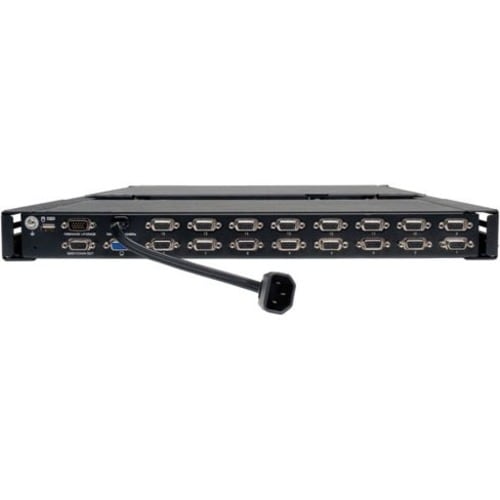

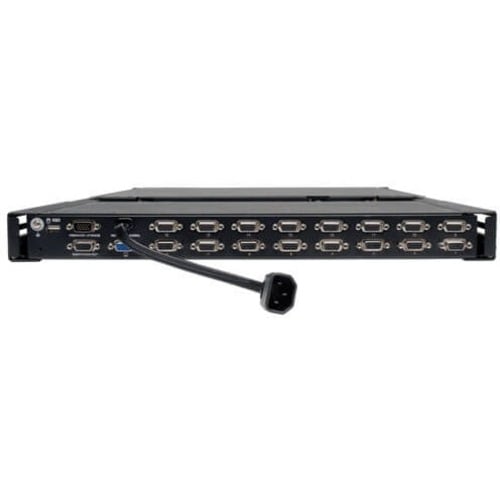

With this KVM switch, you can increase the number of connected computers up to 256 by daisy-chaining up to 15 B042-Series KVM switches. Uses Tripp Lite P780-series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a Tripp Lite B051-000 IP Remote Access Unit to connect from anywhere in the world. An additional USB port lets you connect an external mouse or keyboard. When not in use, the B040-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Uses just 1U of space in rack-mountable drawer
- 19" LCD screen supports video resolutions up to 1366 x 768
- Simplifies IT tasks with easy switching between all 16 ports
- Password protection prevents unauthorized access
- Compatible with all operating systems
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Especificaciones técnicas
Input Devices | |
Keyboard | Yes |
Pointing Device Type | TouchPad |
Interfaces/Ports | |
USB | Yes |
Number of USB Ports | 1 |
Physical Characteristics | |
Product Color | Black |
Color Family | Black |
Display & Graphics | |
Screen Resolution | 1366 x 768 |
Screen Size | 19" |
Screen Mode | WXGA |
Display Screen Type | LCD |
Technical Information | |
Daisy Chain | Yes |
KVM Switch | Yes |
Number of Computers Supported | 16 |
Device Type | LCD Rack Console |
Miscellaneous | |
Package Contents |
|
Certifications & Standards | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
General Information | |
Product Type | LCD Rack Console |
Manufacturer Part Number | B04001619 |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | B040-008-19 |
Product Name | 1U Rackmount Console KVM switch with 19" LCD |
Brand Name | Tripp Lite by Eaton |
