Features | In-Line Surge Protector Keeps Your Power Over Ethernet (PoE) Equipment Safe

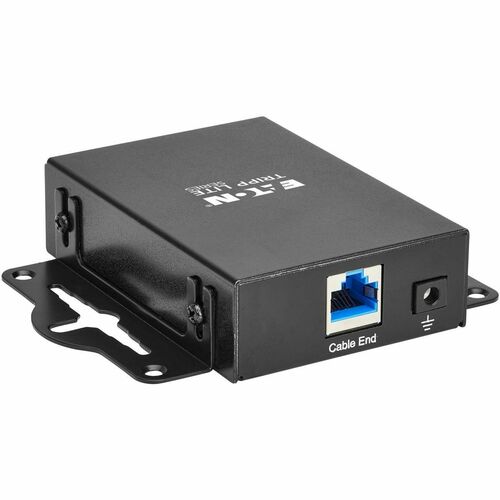

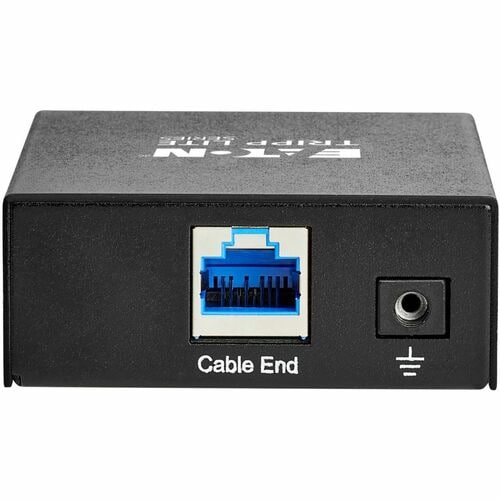

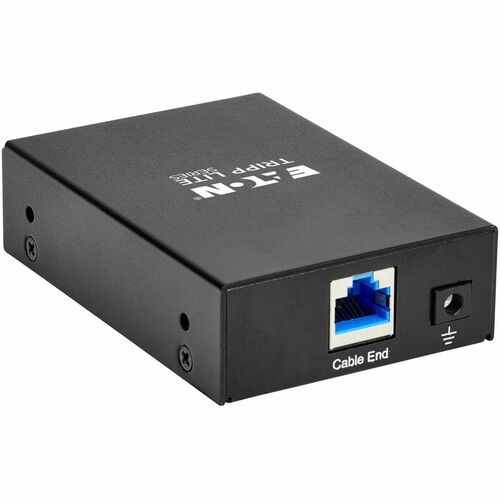

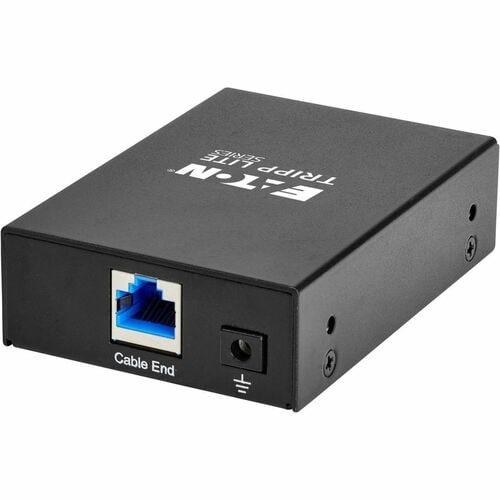

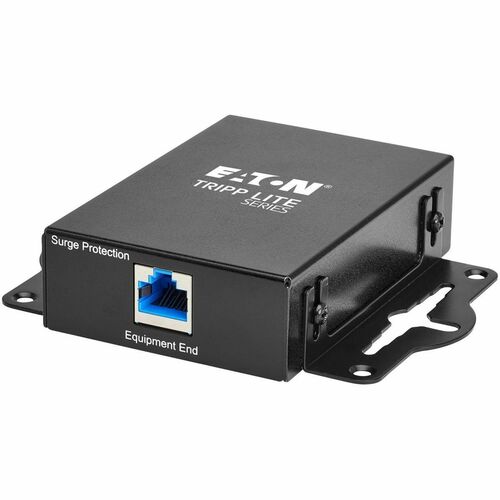

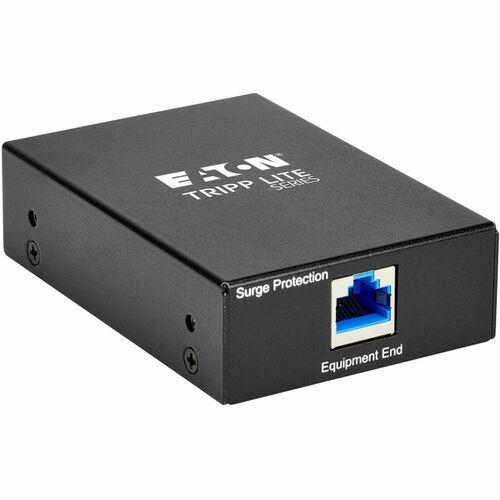

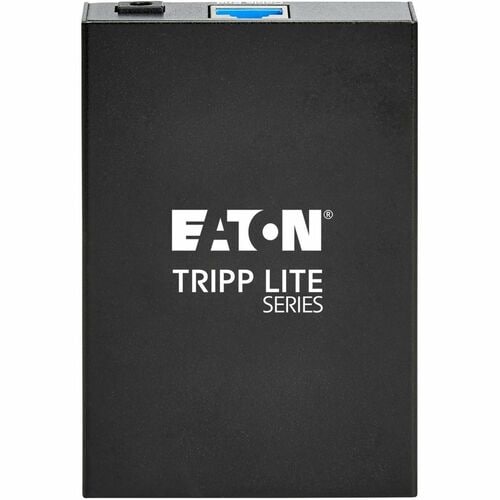

Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-POE-1 protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source and network equipment using Cat5e/6 cables (such as N001-Series cables, sold separately). Note : Two B110-SP-POE-1 surge protectors are required to protect both source and device.
Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Both mid-span and end-span PoE are supported. The B110-SP-POE-1 meets the following IEC/EN regulations: IEC 61000-4-2 / IEC 61000-4-5 (ESD) 30kV (Air, Contact) and EN 61000-4-5 5kA (8/20µs) / 4kV (10/700µs).
Ready to Use Right from the Package, So You Can Plug and Play Immediately

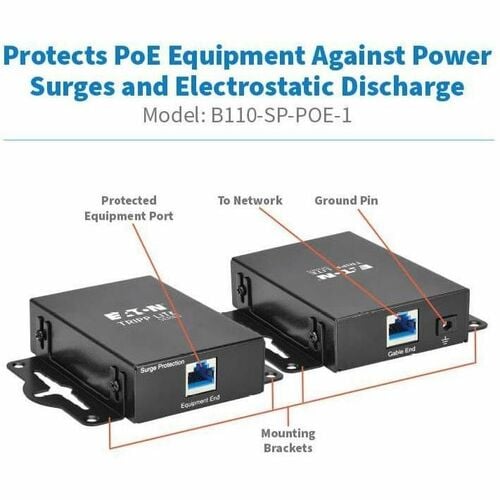

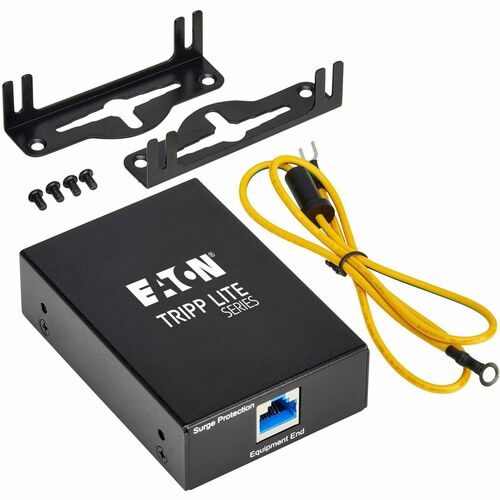

This PoE in-line surge protector meets 802.3af and 802.3at IEEE standards, while supporting data transmission speeds up to 1 Gbps. No software or external power supply is required. The compact housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-POE-1 and the equipment it is protecting is no more than 300 feet (91 meters).
TAA-Compliant for GSA Schedule Purchases
The B110-SP-POE-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- 1 x RJ-45 receptacles to protect your equipment from transient surges
- 1 x RJ-45 receptacle offers premium protection for the connected devices
- Safeguards your equipment from the sudden jolts of electricity
- Installing a surge protector gives you peace of mind
Especificaciones técnicas
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Power Description | |
| Power Handling | 30 VA |
| Technical Information | |
| Dataline Protection | PoE |
| Receptacles | 1 x RJ-45 |
| Plug/Connector Type | RJ-45 |
| Physical Characteristics | |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Height | 1.01" (25.65 mm) |
| Width | 3.61" (91.69 mm) |
| Depth | 2.53" (64.26 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| General Information | |
| Product Type | PoE Surge Protector |
| Manufacturer Part Number | B110-SP-POE-1 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | Box |
| Manufacturer | Eaton Corporation |
| Product Model | B110-SP-POE-1 |
| Product Name | In-Line PoE Surge Protector - 1 Gbps, IEC Compliant, TAA |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Application/Usage | Home Theater System |
| Digital Signage | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
