Acerca del producto

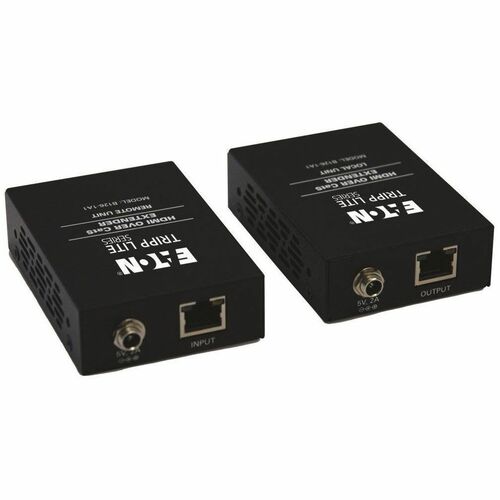

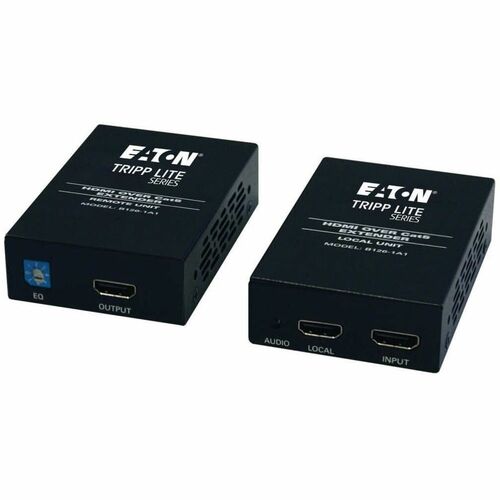

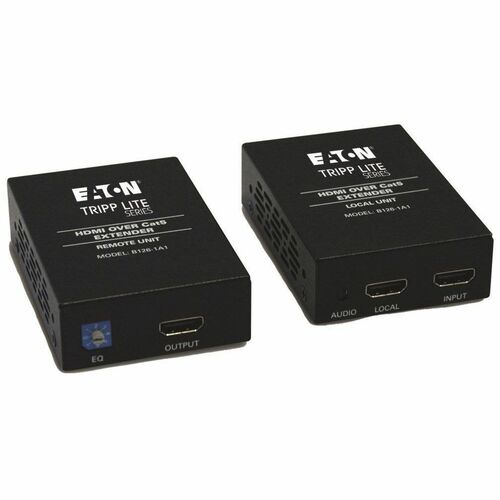

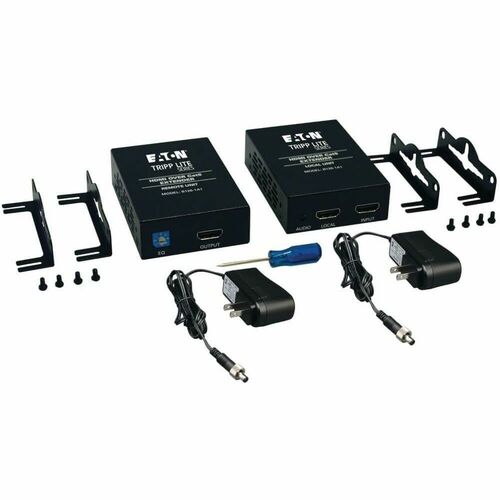

The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play-no software or drivers to install
- Built-in equalization control lets you adjust monitor image
Especificaciones técnicas
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 150 ft (45720 mm) |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 2 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | B126-1A1 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B126-1A1 |
| Product Name | B126-1A1 Video Extender/Console |
| Brand Name | Tripp Lite series |
