Acerca del producto

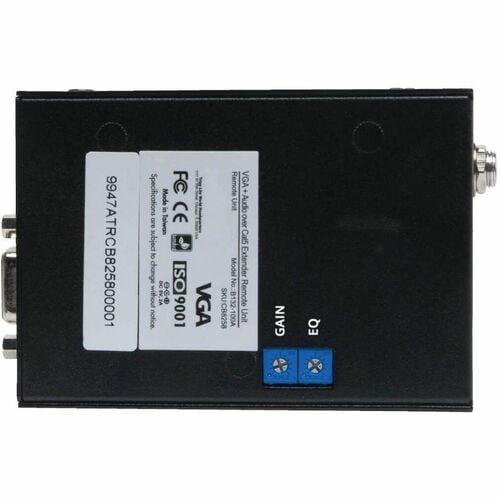

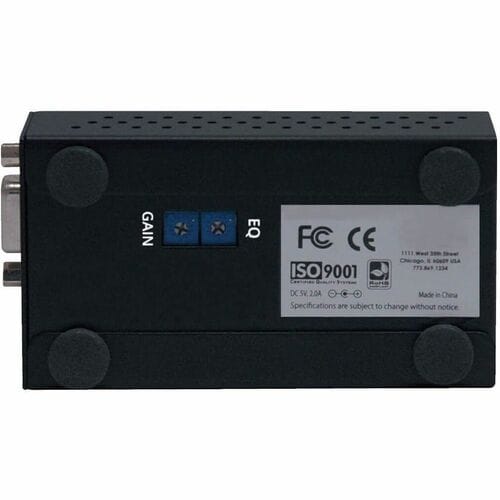

Tripp Lite's B132-100A works with a B132-002A-2 or B132-004A-2 local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Works with a B132-002A-2 or B132-004A-2 local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Especificaciones técnicas
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 1 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | B132-100A |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | B132-100A |
| Product Name | B132-100A TAA/GSA Compliant Video Extender |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Pole-mountable | |
| Rack-mountable | |
| Transmitter Height | 1.10" (27.94 mm) |
| Transmitter Width | 2.50" (63.50 mm) |
| Transmitter Depth | 3.60" (91.44 mm) |
| Transmitter Weight (Approximate) | 7.20 oz (204.12 g) |
| Product Color | Black |
| Color Family | Black |
