Acerca del producto

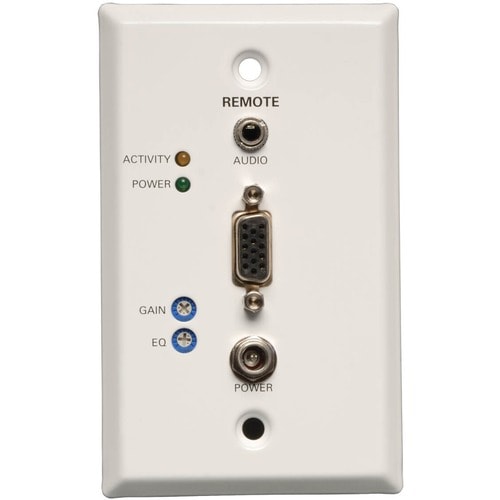

Tripp Lite's B132-100A-WP-1 works with a B132-002A or B132-004A local unit to extend a 1920 x 1440 (60Hz) Video and Stereo Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable. For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.
- Works with a local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K

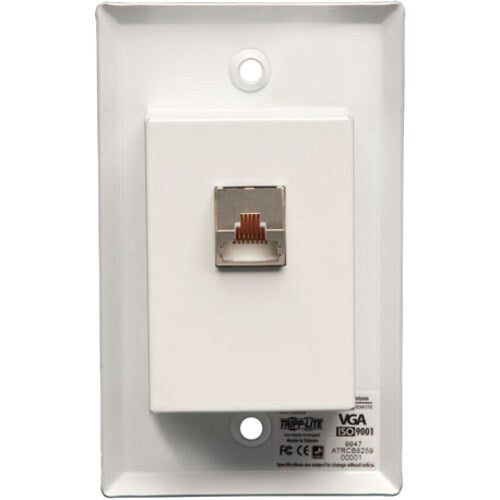

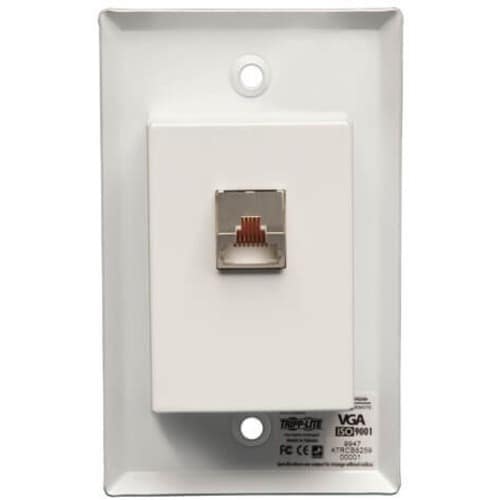

- RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Especificaciones técnicas
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |
| VGA Out | Yes |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | TAA/GSA |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | B132-100A-WP-1 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | B132-100A-WP-1 |
| Product Name | B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Receiver Height | 4.50" (114.30 mm) |
| Receiver Width | 2.75" (69.85 mm) |
| Receiver Depth | 1" (25.40 mm) |
| Receiver Weight (Approximate) | 8 oz (226.80 g) |
| Product Color | White |
| Color Family | White |
