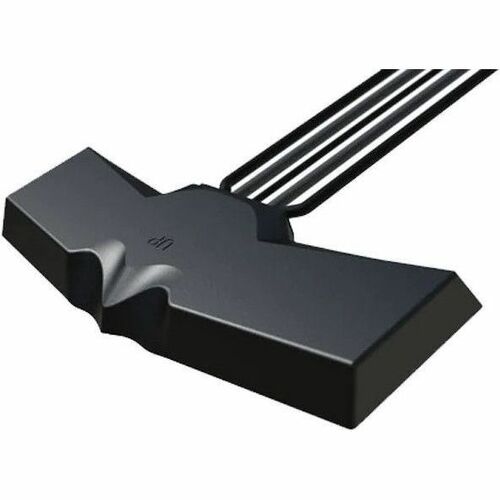

The Panorama BAT is range of internal discrete/covert 'all in one' antennas with 2×2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
- Receive signals from multiple directions with this omnidirectional antenna
- With its glass mount feature, there is no need to drill a hole in the chassis
- Operates at 26 dB gain
- Widely used in gps
Especificaciones técnicas
| Interfaces/Ports | |
| Connector Type | RP-SMA |
| SMA | |
| Miscellaneous | |
| Application/Usage | GPS |
| Cellular Network | |
| Country of Origin | China |
| Physical Characteristics | |
| Form Factor | Dash Mount |
| Glass Mount | |
| Height | 0.65" (16.50 mm) |
| Width | 3.03" (77 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Antenna |
| Manufacturer Part Number | BATGM7602458 |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | BATGM | Internal MiMo 4G/5G Antenna with Optional GPS/GNSS & WiFi |
| Product Line | BAT |
| Brand Name | Panorama Antennas |
| Technical Information | |
| Antenna Gain | 26 dB |
| Directivity | Omni-directional |
| Maximum Antenna Range | 9.8 ft |
| Operating Frequency Range | 1710MHz - 2170MHz |
| 2500MHz - 3800MHz | |
| 4900MHz - 6000MHz | |
| 617MHz - 960MHz | |
| Antenna Gain (Isotropic) | 9 dBi |
