Cisco

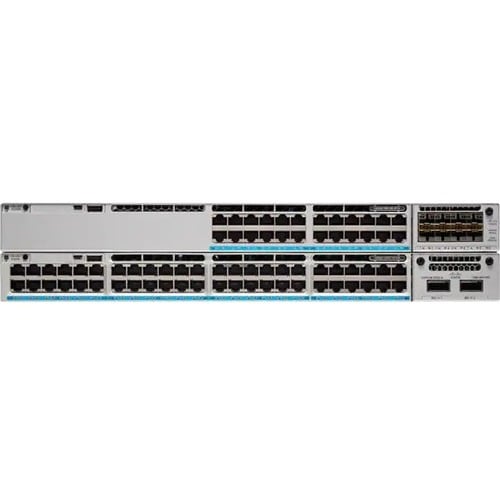

VENTAJAS DE LA RED CATALYST 9300 DE 48 PUERTOS MGIG SOLO DATOS
VENTAJAS DE LA RED CATALYST 9300 DE 48 PUERTOS MGIG SOLO DATOS
- Optimice el rendimiento de las redes empresariales con conectividad Ethernet de 10 Gigabits
- El conmutador de capa 2 proporciona una línea completa de funciones que incluyen vigilancia IGMP, duplicación de puertos y árbol de expansión.
- Con soporte líder de Capa 2, experimente una mayor comodidad, operaciones comerciales seguras y una experiencia de red sin fronteras.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles


Recently Viewed
VENTAJAS DE LA RED CATALYST 9300 DE 48 PUERTOS MGIG SOLO DATOS
Resumen de información del producto

Acerca del producto
Built to reimage connection, reinforce securityand redefine experience

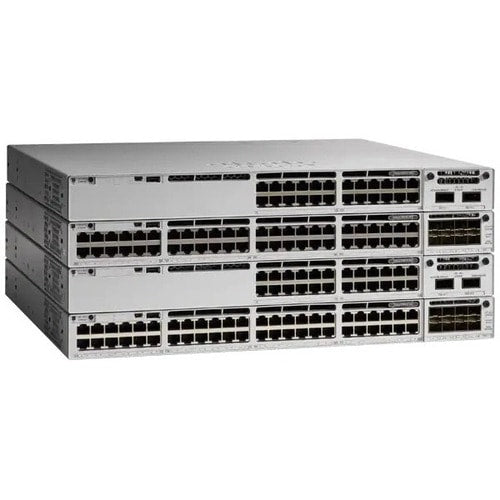

Cisco®Catalyst®9300 Series switches are Cisco's lead stackable enterpriseaccessswitching platformand as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
The many industry'sfirst include:
- Up to 1TB of stacking bandwidth:With Stackwise-1T, Catalyst 9300switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture
-
Flexible and dense uplink offering swith 100G, 40G, 25G, Multigigabit, 10G, and 1G modular uplinks
-
Mixed Stacking with Backward Compatibility-Stack your Catalyst 9300X fiber switches with Catalyst 9300and Catalyst 9300X Multigigabit switches, bringingstackable high-speed fiber to the access
-
Highest Multigigabit Ports:With standalone and Stackwise-1T,Catalyst 9300X models enable 48 mGig ports in standalone and 448 mGig ports with an 8-member stack
-
Highest 90W UPOE®+ Density:Enable your OT/IT needs with up to 36 ports of 90W UPOE+ for standalone or 288 ports of 90W UPOE+ with a 8-member stack.
-
StackPower with Backward Compatibility:Enable power resiliency with higher power budgets in mixed Catalyst 9300and Catalyst 9300X stack.
-
100G IPsec in hardware:With the new 2.0Sec UADP ASIC, the Catalyst 9300X comes with 100G line rate IPsecto enable various options for new edge connectivity
-
Secure Tunnel connectivity:With the new edge, the C9300X enables secureconnections to Secure Internet Gateway, Cloud Service Providers and Site to Site connectivity using IPsec tunnel with AES-256 Encryption and speeds up to 100G.
-
Enhanced Application Hosting:With 2x capacity and additional RAM, QAT, and 2 x 10G AppGig Ports, multiple Cisco Signed performance savvy applications can be hosted on Catalyst 9300X
-
ThousandEyes Enabled:End-to-end visualization of the path from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses)
-
Investment Protection:Catalyst 9300X redundant fansandpower supplies, data stack and StackPower cables are backward compatible with the Catalyst 9300
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
I/O Expansions | |
Total Number of Expansion Slots | 48.0 |
Management & Protocols | |
Manageable | Yes |
Interfaces/Ports | |
Modular | Yes |
Uplink Port | Yes |
Port/Expansion Slot Details | 1 x Uplink |
48 x 10 Gigabit Ethernet Expansion Slot | |
Media & Performance | |
Network Technology | 10GBase-X |
Ethernet Technology | 10 Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber | |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.73" (43.94 mm) |
Width | 17.50" (444.50 mm) |
Depth | 19" (482.60 mm) |
Power Description | |
Power Source | Power Supply |
Frequency | 50 Hz |
60 Hz | |
Power Consumption | 715 W |
Number of Power Supplies Supported | 2 |
Redundant Power Supply Supported | Yes |
General Information | |
Product Type | Ethernet Switch |
Manufacturer Part Number | C9300X-48TX-A |
Manufacturer Website Address | http://www.cisco.com |
Manufacturer | Cisco Systems, Inc |
Product Model | C9300X-48TX |
Product Name | Catalyst C9300X-48TX Ethernet Switch |
Product Line | Catalyst |
Product Series | 9300 |
Brand Name | Cisco |
Network & Communication | |
Layer Supported | 2 |
Networking Standards | IEEE 802.1D |
IEEE 802.3z | |
IEEE 802.3x | |
IEEE 802.3u | |
IEEE 802.3bz | |
IEEE 802.3bt | |
IEEE 802.3at | |
IEEE 802.3an | |
IEEE 802.3af | |
IEEE 802.3ad | |
IEEE 802.1ae | |
IEEE 802.1AVB | |
IEEE 802.1br | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1s | |
IEEE 802.1w | |
IEEE 802.1x | |
IEEE 802.3 | |
IEEE 802.3ab |
