Acerca del producto
High-density advanced services in a compact form factor
The Cisco Catalyst 9500 Series is the first 100/40-Gbps switch purpose built for the enterprise campus. It was recently recognized as CRN's 2017 Overall Network Product of the Year. Designed for security, the Internet of Things (IoT), and the cloud, Catalyst 9500 fixed-core switches are high-density building blocks for a next-generation, intent-based network.
Features and benefits
Defense across the attack continuum
The advanced capabilities of Catalyst 9500 switches help protect your organization before, during, and after an attack. Reduce your attack surface with Cisco trustworthy systems and MACsec 256-bit encryption. Enhance malware detection and rapid threat containment.
IoT readiness
The series delivers IoT convergence with industry-leading scale and capabilities. You get trustworthy security; support for Audio Visual Bridging (AVB) and the IEEE 1588 standard; service discovery; and IoT classification.
Cloud readiness
Simplify, help secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the network edge and extends to where applications reside.
Foundational technology
These core switches support high-density 100 G, 40 G, 25 G, and availability patching; graceful insertion and removal (GIR); and NSF/SSO, plus redundant, platinum-rated power supplies and fans. They also support advanced routing and infrastructure services.
Business architecture optimization services
Make the most of your network investment using performance, benchmarking, deployment, and incident trending analytics to intelligently run your network.
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 650 W |
| Redundant Power Supply Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| SFP28 | |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 52 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Uplink |
| 48 x 25 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 25GBase-X |
| 100GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Weight (Approximate) | 21.96 lb (9960.89 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 18" (457.20 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | C9500-48Y4C-A |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | C9500-48Y4C |

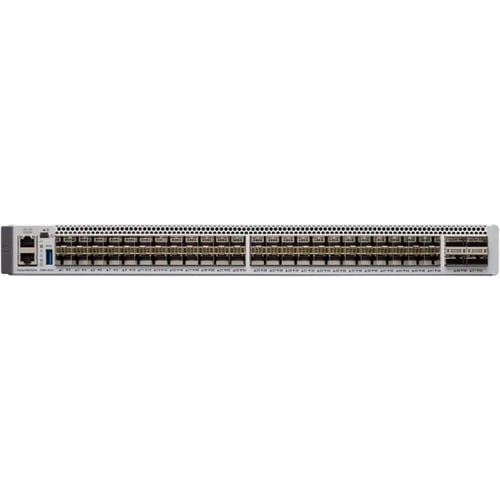

| Product Name | Catalyst C9500-48Y4C-A Switch |
| Product Line | Catalyst |
| Product Series | 9500 |
| Brand Name | Cisco |
