Acerca del producto

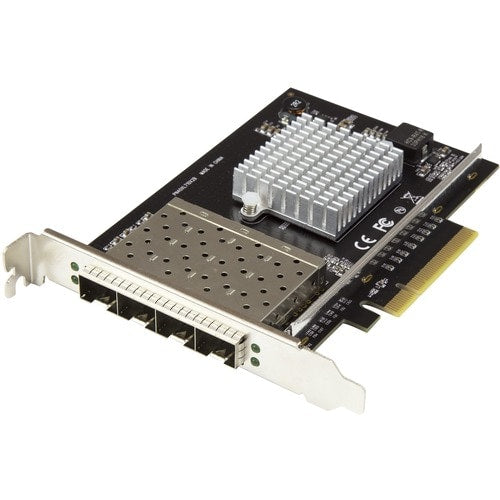

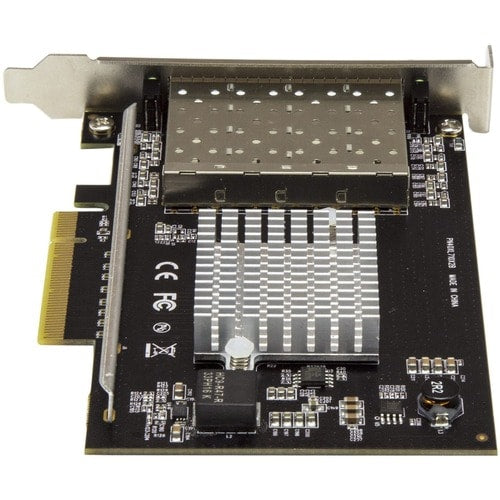

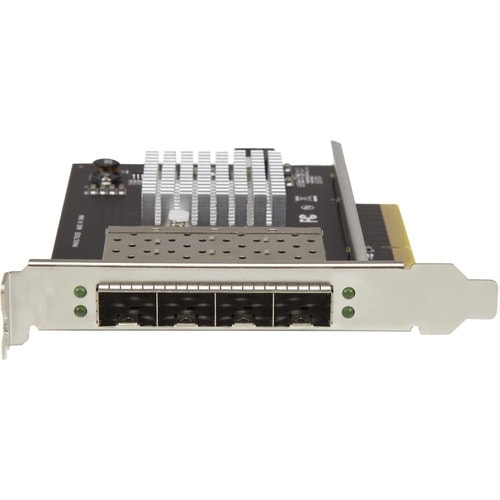

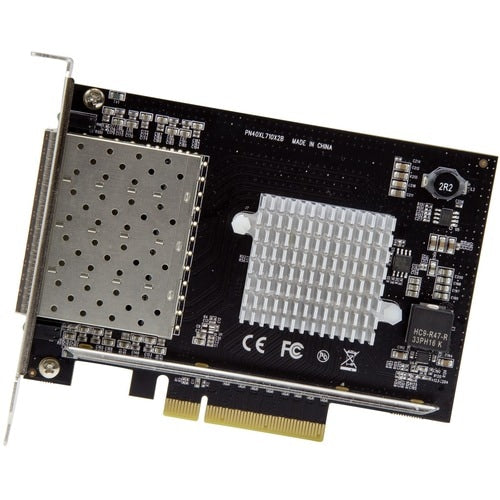

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Add redundant connections in zero-downtime environments
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
Increase your network speed
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.
The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.
The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
- TECH SPECS: 10 Gbps per port | 4 SFP+ Ports, MSA Compliant | Intel XL710| MMF & SMF Fiber Support | PCIe 3.0 x8 | PXE Boot | 9K Jumbo Frames | Link Aggregation | VLAN | Full profile | 2 Yr. Warranty
- TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance; converged network adapter is compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem
- FLEXIBLE: Use MSA compliant SFP+ module or direct attach cable (DAC) supporting different fiber types; 10 Gigabit Ethernet NIC works w/leading brands of switches, routers, & devices like Cisco & HPE
- WIDE HYPEVISOR & OS COMPATIBILITY: Fiber LAN card compatible w/Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+
Especificaciones técnicas
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Interfaces/Ports | |
| Host Interface | PCI Express x8 |
| Total Number of Ports | 4 |
| Media & Performance | |
| Maximum Data Transfer Rate | 20 Gbit/s |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Network Technology | 10GBase-LR |
| 10GBase-SR | |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | XL710 |
| General Information | |
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | PEX10GSFP4I |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | Server |
| System Requirements |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.30 oz (121.90 g) |
| Form Factor | Plug-in Card |
| Height | 3.90" (99.06 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 5.50" (139.70 mm) |
| Product Color | Black |
| Color Family | Black |
