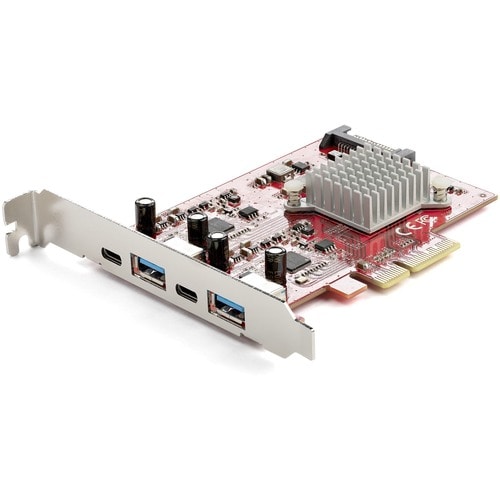

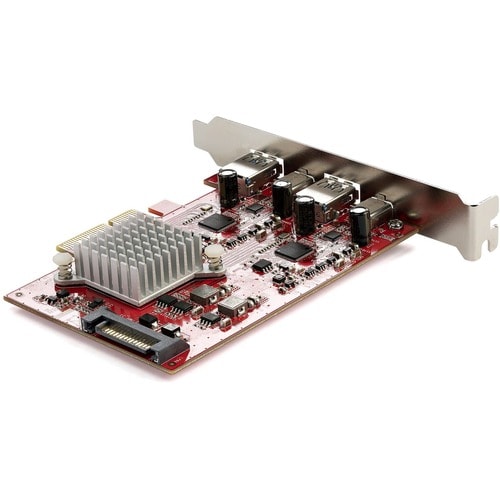

Tarjeta PCIe USB de 4 puertos StarTech.com, PCI Express USB de 10 Gbps
Tarjeta PCIe USB de 4 puertos StarTech.com, PCI Express USB de 10 Gbps
- ALTO RENDIMIENTO: Tarjeta PCIe USB de 4 puertos con controladores duales ASM3142 con un ancho de banda total de hasta 20 Gbps en 4 puertos; 2 concentradores USB-A (10 Gbps) 2x USB-C (10 Gbps); compatible con USB 3.1 Gen 2/USB 3.2 Gen 2x1
- VELOCIDADES DE TRANSFERENCIA DE HASTA 10 Gbps: el adaptador de tarjeta PCIe USB-A y USB-C admite múltiples entradas manteniendo el ancho de banda máximo con dispositivos de velocidad mixta; compatibilidad con UASP; ideal para usar con dispositivos USB y almacenamiento externo como SSD, HDD, unidades NVMe; funciona con USB 3.1/3.0/2.0

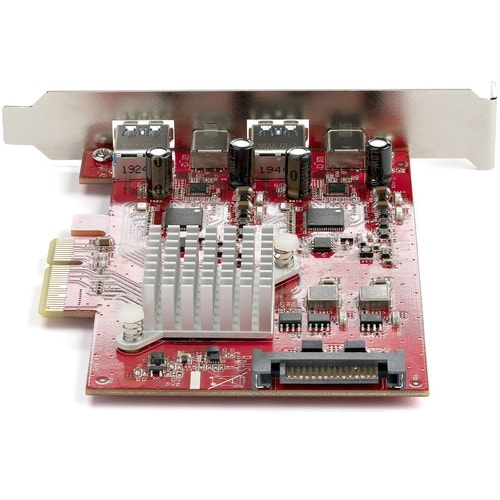

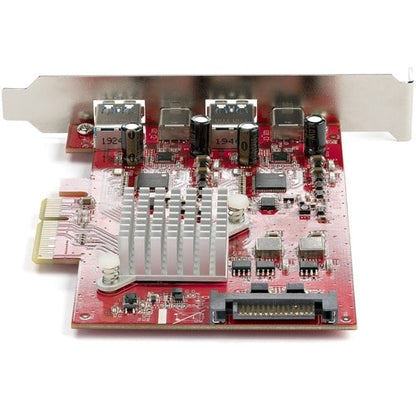

- ALIMENTACIÓN OPCIONAL: La tarjeta de expansión PCIe USB con alimentación SATA suministra energía suplementaria a los puertos USB (cuando la energía de la placa base es insuficiente) proporcionando hasta 5 V 3 A/15 W por puerto USB tipo C y 5 V 0,9 A/4,5 W por puerto USB tipo A
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles





Recently Viewed
Tarjeta PCIe USB de 4 puertos StarTech.com, PCI Express USB de 10 Gbps
Resumen de información del producto

Acerca del producto
This 4-port USB 3.2 Gen 2x1 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers two USB Type-C™ port (10Gbps), and two traditional USB Type-A ports (10Gbps).
By offering two different USB port types, you can easily connect a variety of USB devices to your desktop computer.
Because the card offers 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
USB 3.2 Gen 2x1 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2x1 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Connect different types of USB devices
Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:

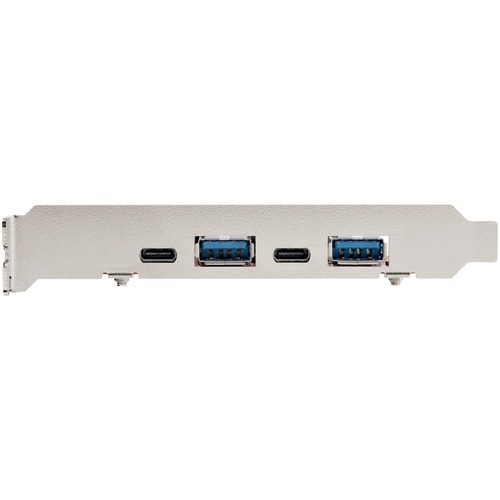

- Two external USB-C port (USB 10Gbps)
- Two external USB-A ports (USB 10Gbps)

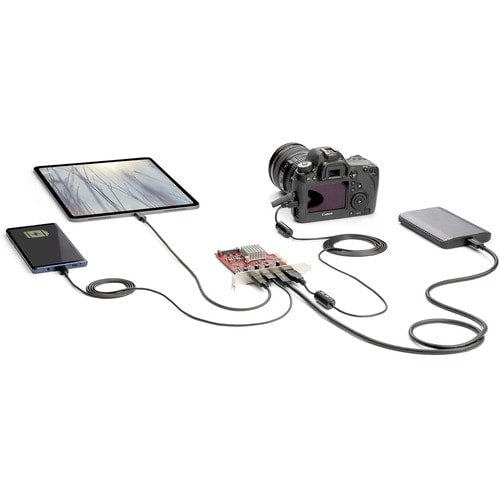

With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding two types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Connect your older USB devices
Connecting your older peripherals isn't a problem. This 4-port USB 3.2 card is backward compatible with legacy USB 3.0, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.
USB 3.0 is also known as USB 3.2 Gen 1x1 (5Gbps) and USB 3.1 Gen 1 (5Gbps).
The PEXUSB312A2C2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
More from the Manufacturer
- HIGH PERFORMANCE: 4 Port USB PCIe card with dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; 2x USB-A (10Gbps) 2x USB-C (10Gbps) hub; Supports USB 3.1 Gen 2/USB 3.2 Gen 2x1
- TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices; UASP support; ideal for use with USB devices & external storage like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0
- OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W per USB Type-C port & 5V 0.9A/4.5W per USB Type-A port
- COMPATIBILITY: USB C add-on card installs in full-profile PCIe 3.0 (x4 slot) desktop/server; lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; These this USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Especificaciones técnicas
Media & Performance | |
UASP Support | Yes |
Technical Information | |
Host Interface | PCI Express x4 |
Interfaces/Ports | |
Total Number of USB Ports | 4 |
Number of USB 3.2 Ports | 4 |
General Information | |
Product Type | USB Adapter |
Manufacturer Part Number | PEXUSB312A2C2V |
Manufacturer Website Address | http://www.startech.com |
Manufacturer | StarTech.com |
Product Name | PCI Express USB Card |
Brand Name | StarTech.com |
Miscellaneous | |
Additional Information | OS Compatibility:
|
Package Contents |
|
Platform Supported | Linux |
Mac | |
PC | |
Country of Origin | Taiwan |
Physical Characteristics | |
Weight (Approximate) | 2.80 oz (79.38 g) |
Form Factor | Plug-in Card |
Length | 4.40" (111.76 mm) |
Height | 0.90" (22.86 mm) |
Width | 3.30" (83.82 mm) |
Product Color | Red |
Software | |
Operating System Supported | Windows Server 2019 |
Windows Server 2022 | |
Windows Server 2016 | |
Windows Server 2012 | |
Windows Server 2008 R2 | |
Windows 8.1 | |
Windows 8 | |
Windows 7 | |
Windows 11 | |
Windows 10 | |
Mac OS X 13.0 Ventura | |
Mac OS X 12.0 Monterey | |
Mac OS X 11.0 Big Sur | |
Mac OS X 10.13 High Sierra | |
Mac OS X 10.14 Mojave | |
Mac OS X 10.15 Catalina | |
Linux 3.5 |
