Acerca del producto

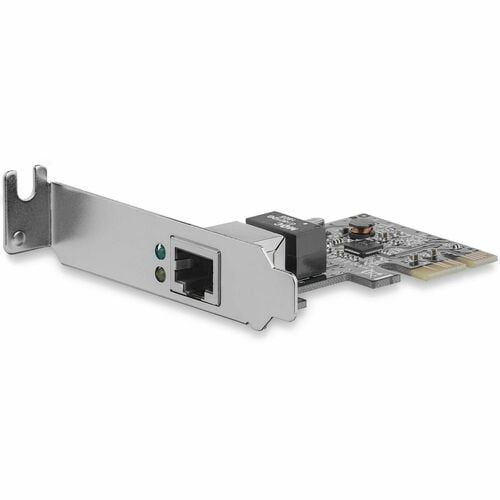

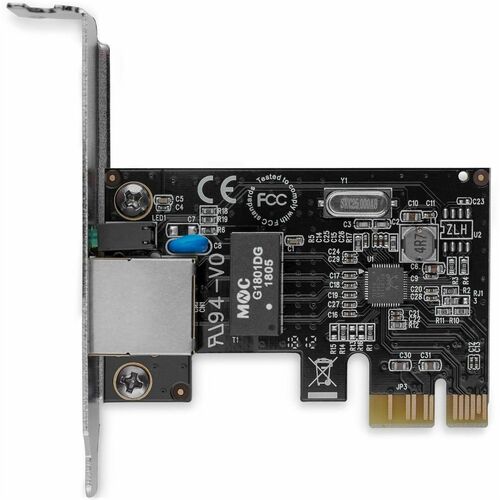

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

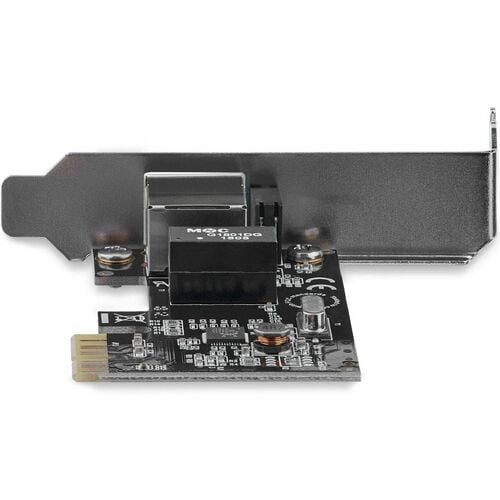

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
More from the Manufacturer
- A single 10/100/1000Mbps compatible RJ45 Ethernet port

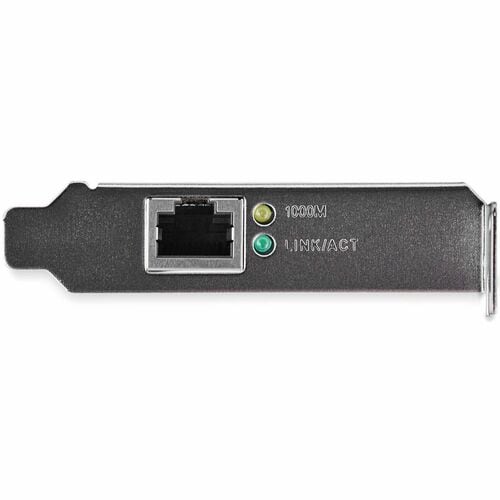

- Gigabit detection and Link/Activity LED indicators
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Jumbo frame support
- Full and half duplex support
- Supports Wake-on-LAN function
- Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
Especificaciones técnicas
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Media & Performance | |
| Maximum Data Transfer Rate | 8 Gbit/s |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Chipset Manufacturer | Realtek |
| Chipset Model | RTL8111 |
| General Information | |
| Product Type | Gigabit Ethernet Card |
| Manufacturer Part Number | ST1000SPEX2L |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | PC |
| System Requirements |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Thickness | 0.70" (17.78 mm) |
| Weight (Approximate) | 1 oz (28.35 g) |
| Form Factor | Plug-in Card |
| Length | 2.80" (71.12 mm) |
| Height | 1.90" (48.26 mm) |
| Width | 0.70" (17.78 mm) |
| Card Length | Half-length |
| Card Height | Low-profile |
| Interfaces/Ports | |
| Host Interface | PCI Express |
| USB | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Serial Port | No |
| Total Number of Ports | 1 |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
