Acerca del producto

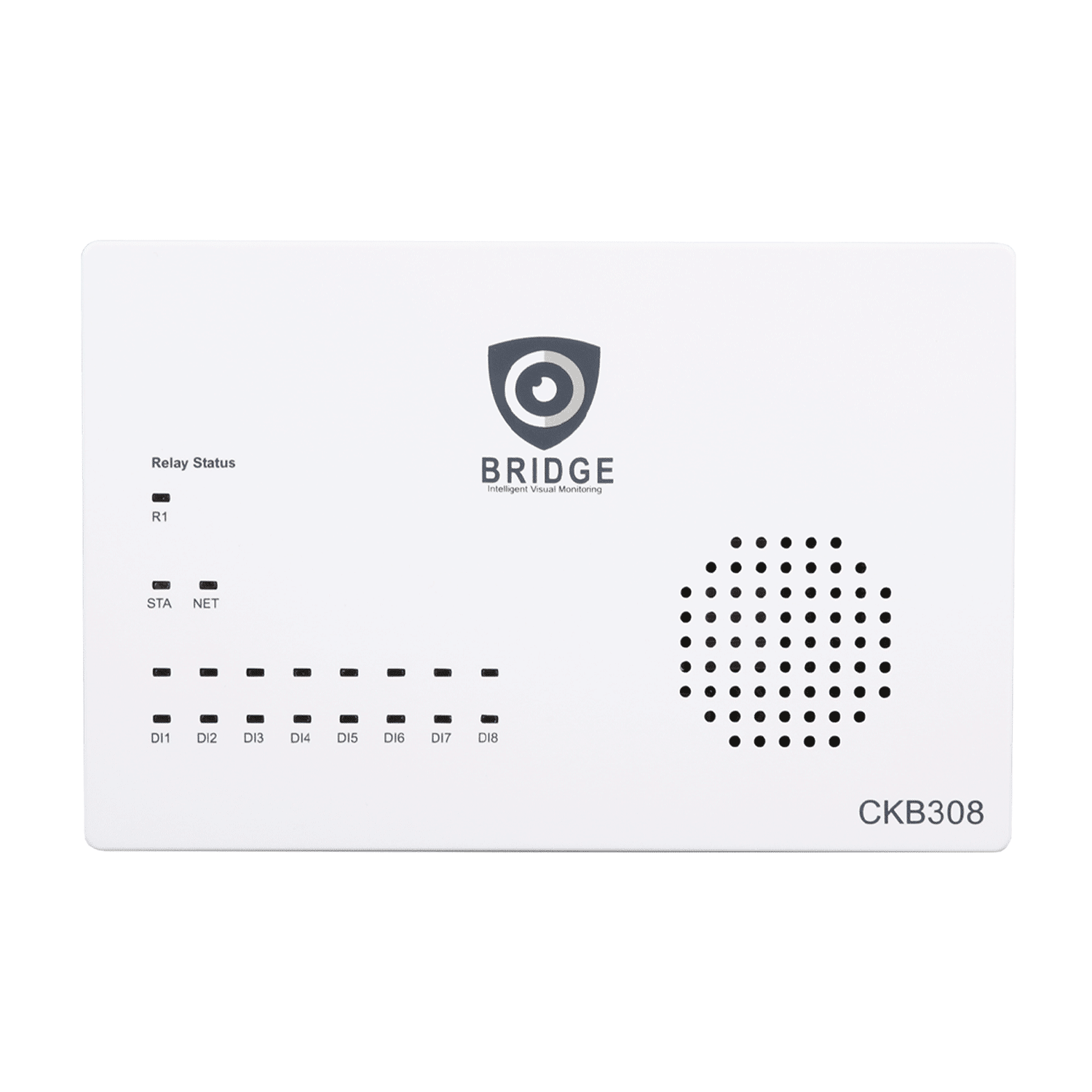

The CHeKT Visual Verification Bridge for IP Cameras is a simple PoE-powered video security panel for security professionals that allows you to integrate ONVIF-capable IP cameras and NVR systems into a standard panel-based alarm system. When installed, the bridge pushes event triggers; camera analytics, physical sensors, and API Events-- like zone intrusion and motion detection-- to their cloud-based Visual Verification Portal powered by CHeKT, eliminating 100% of false dispatches within 3 seconds of activation, and even features live-viewing and talk-down features for capable IP camera setups. Featuring a switchable NO/NC relay output for custom system control on event or sensor support, the CHeKT Visual Verification Bridge for IP Cameras can consolodate both halves of your home or business security setup into a single, integrated, professionally-monitored platform at a fraction of the cost of most all-in-one video monitoring setups; and without complicated solutions or integrations when dealing with both new and legacy brands of NVR-based IP camera systems.
CKB308 Features and Specs:
- Digital Alarm Inputs: 8 Physical Input Zones
- 1 x Relay Output (NO/NC) – 100mAmps @24v DC
- Audio Output: 1/8? (3.5mm) Line Level Output (non-amplified), IP Audio Integrations.
- Video Source Recommendations: IP devices with available RTSP Stream.
- Video Source Requirements:~ D1 Resolution: 720×480 & 6 FPS
- Video Compression Support: H.264
- Video Authentication Support: ONVIF, RTSP, HTTP
- Video Transmission Security: TLS/SSL Encryption to Cloud and Central Station
- Video Analytics Support: ONVIF Event Messaging Protocol, API Calls
- Event Triggers: Physical Input Zones, ONVIF Event Topics, AI via Local API
- Alarm Events: Alarm Communication via IP to Central Station Automation
- Ethernet: RJ-4510/100/BASE-T Connection
- Power Supply: PoE & 12v DC
- Physical Input Voltage Range: 0-12v DC (All Ground Termals Are Common)
- Operating Temperature: 0C ~ +40°C (32°F ~ 85°F) / Less than 85% RH
- Dimensions: 82mm x 100.7mm x 36mm (3.2? x 3.9? x 1.4?)
- Weight: 170g (0.4lb)
Especificaciones técnicas
The CHeKT Visual Verification Bridge for IP Cameras is a simple PoE-powered video security panel for security professionals that allows you to integrate ONVIF-capable IP cameras and NVR systems into a standard panel-based alarm system. When installed, the bridge pushes event triggers; camera analytics, physical sensors, and API Events-- like zone intrusion and motion detection-- to their cloud-based Visual Verification Portal powered by CHeKT, eliminating 100% of false dispatches within 3 seconds of activation, and even features live-viewing and talk-down features for capable IP camera setups. Featuring a switchable NO/NC relay output for custom system control on event or sensor support, the CHeKT Visual Verification Bridge for IP Cameras can consolodate both halves of your home or business security setup into a single, integrated, professionally-monitored platform at a fraction of the cost of most all-in-one video monitoring setups; and without complicated solutions or integrations when dealing with both new and legacy brands of NVR-based IP camera systems.
CKB308 Features and Specs:
- Digital Alarm Inputs: 8 Physical Input Zones
- 1 x Relay Output (NO/NC) – 100mAmps @24v DC
- Audio Output: 1/8? (3.5mm) Line Level Output (non-amplified), IP Audio Integrations.
- Video Source Recommendations: IP devices with available RTSP Stream.
- Video Source Requirements:~ D1 Resolution: 720×480 & 6 FPS
- Video Compression Support: H.264
- Video Authentication Support: ONVIF, RTSP, HTTP
- Video Transmission Security: TLS/SSL Encryption to Cloud and Central Station
- Video Analytics Support: ONVIF Event Messaging Protocol, API Calls
- Event Triggers: Physical Input Zones, ONVIF Event Topics, AI via Local API
- Alarm Events: Alarm Communication via IP to Central Station Automation
- Ethernet: RJ-4510/100/BASE-T Connection
- Power Supply: PoE & 12v DC
- Physical Input Voltage Range: 0-12v DC (All Ground Termals Are Common)
- Operating Temperature: 0C ~ +40°C (32°F ~ 85°F) / Less than 85% RH
- Dimensions: 82mm x 100.7mm x 36mm (3.2? x 3.9? x 1.4?)
- Weight: 170g (0.4lb)
