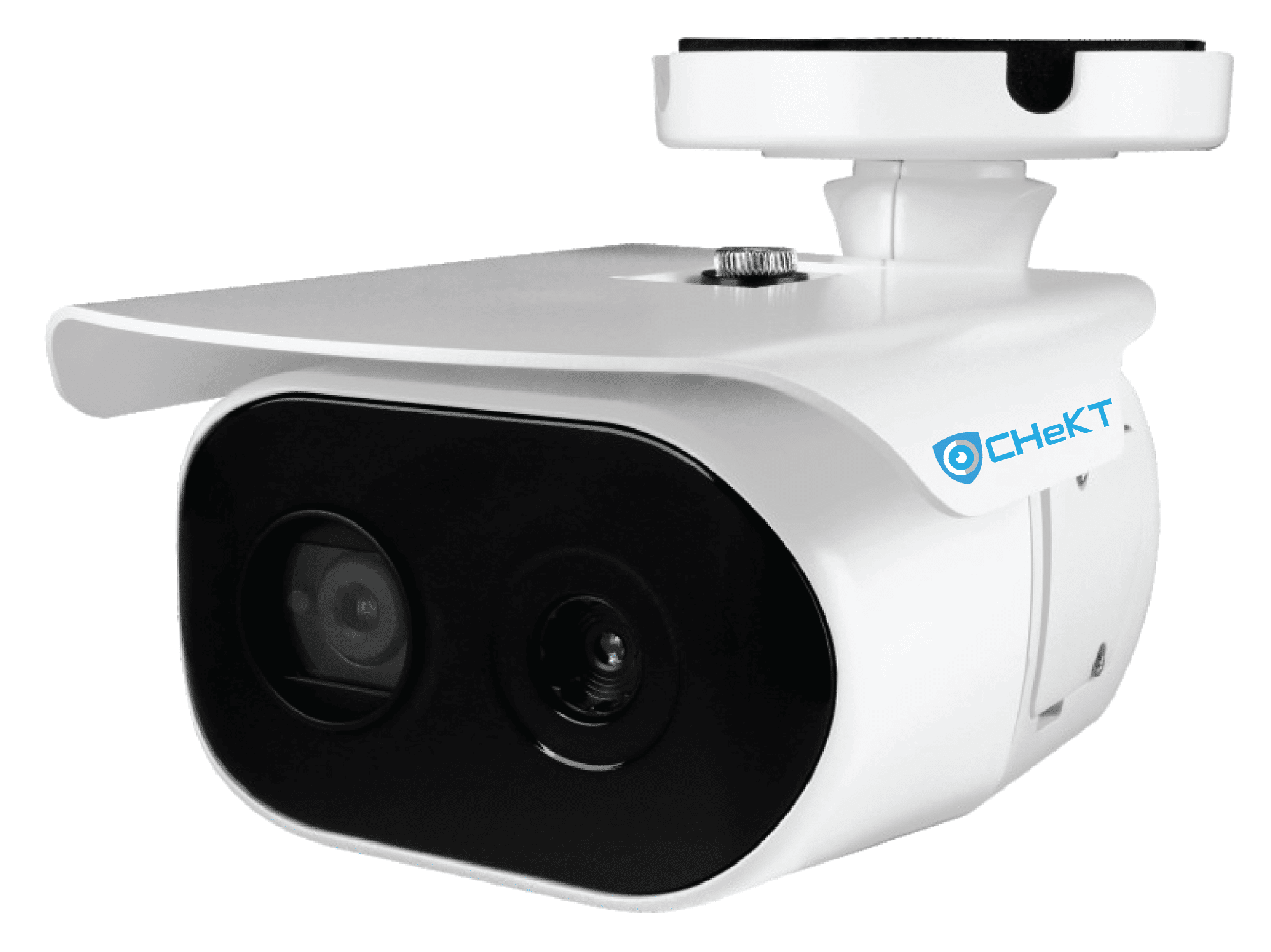

The CHeKT 5MP AI Dual Thermal Camera is an advanced, AI-enriched IP camera featuring deep learning and a large library of detection behaviours and algorithms that offers true human and vehicle identification-- built directly into the camera itself along with an upscaled thermal camera sensor for challenging, low-to-no light conditions that require another additional level of security. The deep learning features are also able to learn and identify behaviors of the objects (ie. people, cyclists, cars, trucks, vans, motorcycles, bicycles, etc.) being detected to ensure significantly reduced false alarms and increase operator awareness when paired with the CHeKT Bridge verification systems. Use custom detection zones and rules to monitor specific behaviours like entrances, exits, direction information, tailgating, and more. Featuring SMART Bitrate control and Region of Interest automatic zoom and focus, the CHeKT AI Bullet Camera is capable of intelligent monitoring and tracking behaviours that would normally require a dedicated operator.
CKIPAi5MP-DL-TH-FR Features and Specs:
- Framerate and Still Resolution: 30fps at 5MP
- Video Compression: H.265, H.264, MJPEG
- Max Resolution (Video): 2592 x 1944
- Thermal Camera Resolution: 640x480 (Upscaled) @ 9FPS
- Video Bit Rate: 100Kbps ~ 25Mbps
- Lens: 4mm, F2.0
- Thermal Lens: 4mm, F1.0
- Angle of View: 82.3° (Horizontal) - 58.8° (Vertical)
- Thermal Angle of View: 56° (Horizontal) - 42° (Vertical)
- Shutter Time: Auto/Manual: 1/30 ~ 1/32,000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
- Detectable Temperature Range: -40°C to 330°C (-40°F to 626°F)
- Temperature Accuracy: +/- 5°C between 5°C to 140°C, +/- 10°C between 140°C to 330°C
- IR LED: 2x High Power LED
- IR Working Distance: 30m
- Image Sensor: SONY STARVIS EXMOR 1/2.8'' 5MP CMOS
- Power Source: PoE (IEEE 802.3af) Max 15.6W, DC12V Max 13.2W
- Audio Streaming: Two-way
- Audio Compression: G.711 u-law 8KHz, AAC-LC 489Kbps at 8KHz
- Audio Output: Line Out
- External I/O: 1x Alarm In, 1x Alarm Out
- Ethernet Standard: 10/100 Base-T
- IP: IPv4
- Protocol: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Security: HTTPS(SSL), IP filtering, 802.1x, Digest Authentication
- Certifications: FCC, CE, IP67, UKCA, IK09, NDAA Compliant
Especificaciones técnicas
The CHeKT 5MP AI Dual Thermal Camera is an advanced, AI-enriched IP camera featuring deep learning and a large library of detection behaviours and algorithms that offers true human and vehicle identification-- built directly into the camera itself along with an upscaled thermal camera sensor for challenging, low-to-no light conditions that require another additional level of security. The deep learning features are also able to learn and identify behaviors of the objects (ie. people, cyclists, cars, trucks, vans, motorcycles, bicycles, etc.) being detected to ensure significantly reduced false alarms and increase operator awareness when paired with the CHeKT Bridge verification systems. Use custom detection zones and rules to monitor specific behaviours like entrances, exits, direction information, tailgating, and more. Featuring SMART Bitrate control and Region of Interest automatic zoom and focus, the CHeKT AI Bullet Camera is capable of intelligent monitoring and tracking behaviours that would normally require a dedicated operator.
CKIPAi5MP-DL-TH-FR Features and Specs:
- Framerate and Still Resolution: 30fps at 5MP
- Video Compression: H.265, H.264, MJPEG
- Max Resolution (Video): 2592 x 1944
- Thermal Camera Resolution: 640x480 (Upscaled) @ 9FPS
- Video Bit Rate: 100Kbps ~ 25Mbps
- Lens: 4mm, F2.0
- Thermal Lens: 4mm, F1.0
- Angle of View: 82.3° (Horizontal) - 58.8° (Vertical)
- Thermal Angle of View: 56° (Horizontal) - 42° (Vertical)
- Shutter Time: Auto/Manual: 1/30 ~ 1/32,000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
- Detectable Temperature Range: -40°C to 330°C (-40°F to 626°F)
- Temperature Accuracy: +/- 5°C between 5°C to 140°C, +/- 10°C between 140°C to 330°C
- IR LED: 2x High Power LED
- IR Working Distance: 30m
- Image Sensor: SONY STARVIS EXMOR 1/2.8'' 5MP CMOS
- Power Source: PoE (IEEE 802.3af) Max 15.6W, DC12V Max 13.2W
- Audio Streaming: Two-way
- Audio Compression: G.711 u-law 8KHz, AAC-LC 489Kbps at 8KHz
- Audio Output: Line Out
- External I/O: 1x Alarm In, 1x Alarm Out
- Ethernet Standard: 10/100 Base-T
- IP: IPv4
- Protocol: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Security: HTTPS(SSL), IP filtering, 802.1x, Digest Authentication
- Certifications: FCC, CE, IP67, UKCA, IK09, NDAA Compliant
