Acerca del producto
The CM-336 Series of second-generation hands-free wireless switches offers better door activation for automated door applications and access control, both new and retrofit. Includes two AA alkaline batteries. Requires Camden CM-RX90 Wireless Receiver. Environments below 0°C (32°F) are advised for lithium batteries.

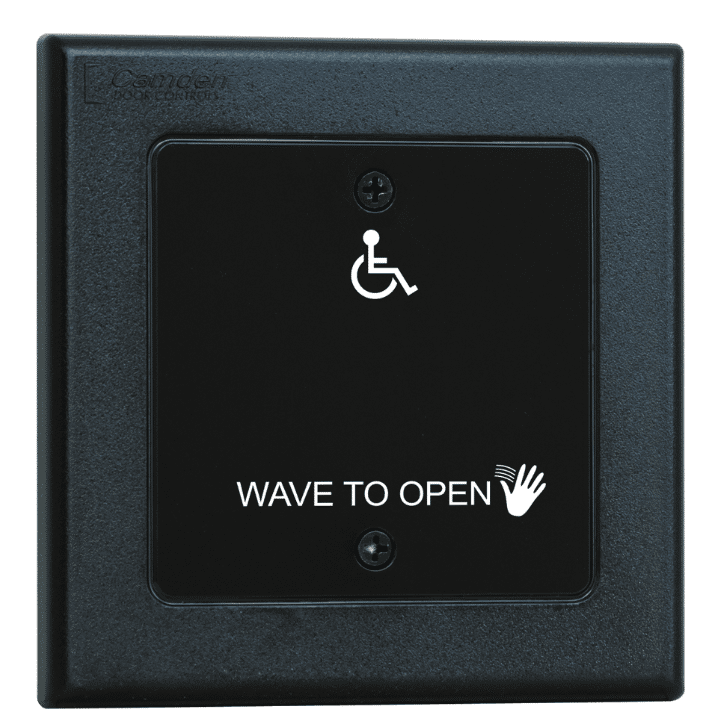

Camden CM-336/42W SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Black Faceplate, Hand Icon and Wave to Open Graphics Features:
- Wired, wireless and hybrid (wireless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-336 Series: battery powered wireless models offer industry-leading 4-year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
Camden CM-336/42W SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Black Faceplate, Hand Icon and Wave to Open Graphics Specifications:
- NO. OF IR SENSORS: 1
- BATTERIES: (2) ‘AA’ ALKALINE (SUPPLIED) (2) ‘AA’ LITHIUM BATTERIES (OPTIONAL)
- ESTIMATED BATTERY LIFE: 4 YEARS (BASED ON 100 OPERATIONS/DAY)
- LOW BATTERY ALARM: YES
- BATTERY TEST GAUGE: YES
- STANDARD OPERATING RANGE: 1""- 12"" (25.4MM - 304MM)
- OPERATING MODE: MOMENTARY BUILT-IN 915MHZ. SPREAD SPECTRUM WIRELESS TRANSMITTER
- INPUT: REQUEST TO EXIT OR EXTERNAL (DOOR CONTACT)
Especificaciones técnicas
The CM-336 Series of second-generation hands-free wireless switches offers better door activation for automated door applications and access control, both new and retrofit. Includes two AA alkaline batteries. Requires Camden CM-RX90 Wireless Receiver. Environments below 0°C (32°F) are advised for lithium batteries.
Camden CM-336/42W SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Black Faceplate, Hand Icon and Wave to Open Graphics Features:
- Wired, wireless and hybrid (wireless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-336 Series: battery powered wireless models offer industry-leading 4-year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
Camden CM-336/42W SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Black Faceplate, Hand Icon and Wave to Open Graphics Specifications:
- NO. OF IR SENSORS: 1
- BATTERIES: (2) ‘AA’ ALKALINE (SUPPLIED) (2) ‘AA’ LITHIUM BATTERIES (OPTIONAL)
- ESTIMATED BATTERY LIFE: 4 YEARS (BASED ON 100 OPERATIONS/DAY)
- LOW BATTERY ALARM: YES
- BATTERY TEST GAUGE: YES
- STANDARD OPERATING RANGE: 1""- 12"" (25.4MM - 304MM)
- OPERATING MODE: MOMENTARY BUILT-IN 915MHZ. SPREAD SPECTRUM WIRELESS TRANSMITTER
- INPUT: REQUEST TO EXIT OR EXTERNAL (DOOR CONTACT)
