Macurco Carbon Monoxide CO Detector 9-32Vdc, 2 Relays, Buzzer, Round Flush Mount Overview

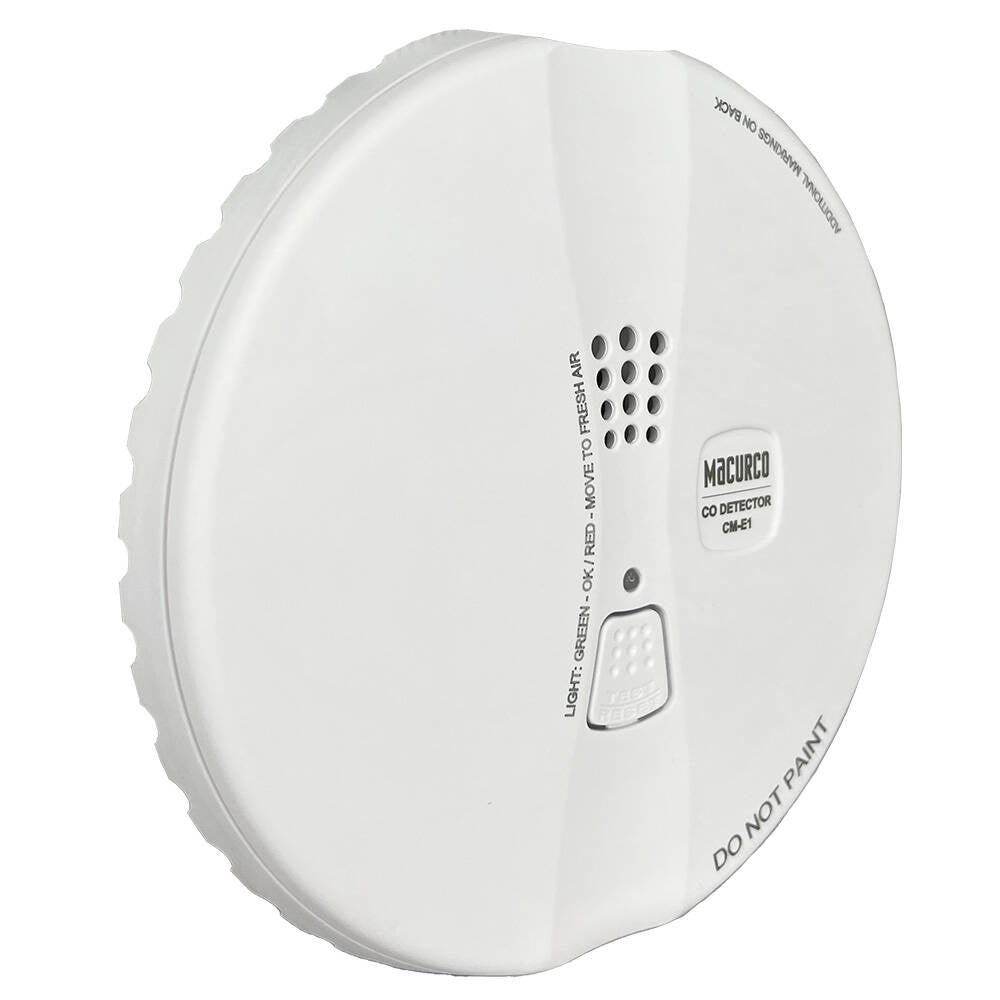

The Macurco CM-E1 is a reliable, lightweight, and aesthetically pleasing gas detector made to keep you and the people you care about safe from harmful gases in residential and light commercial applications. It is a low-voltage gas detector designed for use with fire and security systems. The CM-E1 is UL 2075 Listed for use in residential and commercial applications and is also approved by the California State Fire Marshal.
Macurco Carbon Monoxide CO Detector Features
- Low replacement costs with long-life sensors
- Low maintenance with no calibration needed
- Local alarm – Temporal 4 Sounder
- Clip in wire harness for in and out replacement
- Aesthetically pleasing. Flush mount options
- Ties into any Fire/Burglary panel for local and remote monitoring
- Made in America
Applications
- Homes
- Schools/university dorms
- Hotels/condos
- Offices
- Retail stores
- Common rooms/lobbies
- Apartments
- Airports
- Other light commercial environments
Macurco Carbon Monoxide CO Detector Specifications
- Size: Round Flush: 5-1/2” x 1/2”
- Shipping Weight: 0.5 lb. (8 oz.)
- Voltage/ Current: 9-32 VDC
- Sensor Life: 10 years w/EOL
- Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C)
- Current Draw: (Normal/alarm) 15mA/35mA @ 9-32V
- Relays:
- Alarm Relay: SPST, 100mA, 40VDC;
- Trouble Relay: SPST, 100mA, 40VDC
- Status Indicators: LED (Red alarm, amber trouble, green normal)
- Local Buzzer:
- 85 dB at 10’
- Alarm - Temporal 4,
- Trouble – single chirp
- Alarm Levels: Per UL 2034
- - 70 ppm @ 60-240 mins.
- - 150 ppm @ 10-50 mins.
- - 400 ppm @ 4-15 mins.
- Test Button: Local Test, Alarm Test, Gas Test, Silence
- Approvals / Listings: UL Listed 2075 E354878, CSFM
- Warranty: Two-year limited warranty
