Acerca del producto
The CM-RFL454-LPA from Camden Door Controls is a laser point RF 915Mhz wireless switch kit. Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz. spread spectrum wireless technology to the automatic door market. The system encompasses the widest range of transmitters, receivers, activation devices and switch enclosures available today. Lazerpoint RF™ receivers also supports 300MHz., 390MHz., and 433MHz. transmitters, with the use of optional daughterboards.
Camden Wireless Kit 4 1/2"" Square Push Plate Switch, WHEELCHAIR & PTO:
- Indicates relay status and transmitter signal strength
- Ideal for use when the receiver is hidden from view during installation
- Audible battery test, low battery, and stuck switch indication
- ‘Instant Response’ captures brief switch activations
- Compatible with all push buttons and push plates
- Readily available ’AAA’ battery operation
- Optional lithium batteries are recommended where operating temperatures are below 32°f (0°C)
- (1) Form ’C’ Relay, 3 Amps @ 30VDC
- 3 Operating Modes, Including Delayed, No Delay, and Latching Relay
- Easily Configured for Use In Vestibule Applications
- Adjustable Door Hold Open/Delay Timer
- LAZERPOINT RF™ is compatible with all automatic door operators.
- Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.
- Multi-year battery life (using inexpensive 'AAA' alkaline batteries) and exclusive 'low battery','gas gauge' and 'stuck switch' audible alerts.
- New CM-RX90 advanced reciever, with 1 relay, features 3 relay modes (delay, non-delay & latching). Ideal for vestibule applications.
- RX-92 receiver model with two channels plus 6 operating modes; saves time and money by avoiding the cost of buying and installing additional components.
- Optional plug-in receiver modules provide compatibility with other RF frequencies.
- ‘PUSH AND LEARN' transmitter enrollment and signal strength indicators, makes LAZERPOINT RF™ the easiest system to install
- Ultra-compact switch transmitter fits anywhere, including jamb box.
CM-TX9: 2 1/4” x 5/8” x 3/8” (57mm x 16mm x 10mm) - Ultra-compact receivers can be mounted in door operator cabinets. CM-90: 2-5/8""” x 1-1/2""” x 1” (67mm x 38mm x 25mm)
- Compact ADA-compliant 1, 2 and 4 button key FOBs.
CM-TXF1/2/4: 2 9/16” x 1 9/16” x 5/8” (65mm x 40mm x 16mm) - Innovative FOB base for wheelchair, visor, belt or wall mouting.
CM-TXLFB: 4” x 1 5/8” x 3/4” (102mm x 42mm x 19mm) - Plug-in Lazerpoint RF™ wireless transmitter module for CM-120 series digital keypads and CM-330 series hands free switches
CM-TX99:1 9/16” L x 9/16” W x 5/16” H (40mm x 15mm x 8mm) - Camden product quality backed by a full 3 year replacement warranty

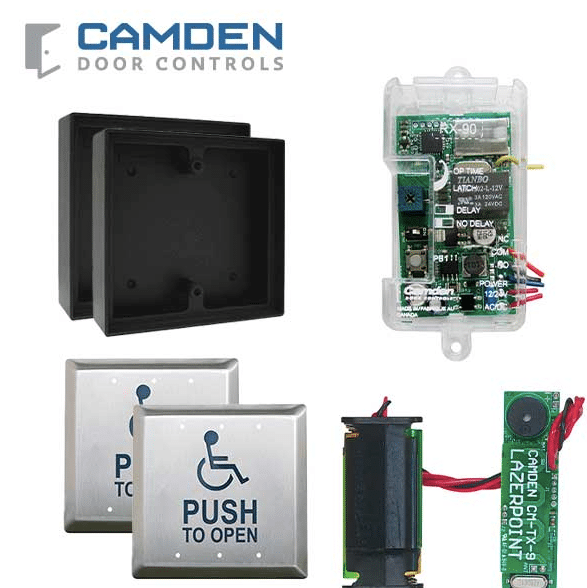

- Includes:
- (2) CM-45/4 4-1/2"" Square Push Plate Switch, Concealed Screws; 'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
- (2) CM-43LP Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
- (2) CM-TX-9 Wall Switch Transmitter;
- (1) CM-RX-90 V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
Dimensions: 8.0""L x 8.0""W x 7.25""H
Weight: 3.1lbs.
Especificaciones técnicas
The CM-RFL454-LPA from Camden Door Controls is a laser point RF 915Mhz wireless switch kit. Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz. spread spectrum wireless technology to the automatic door market. The system encompasses the widest range of transmitters, receivers, activation devices and switch enclosures available today. Lazerpoint RF™ receivers also supports 300MHz., 390MHz., and 433MHz. transmitters, with the use of optional daughterboards.
Camden Wireless Kit 4 1/2"" Square Push Plate Switch, WHEELCHAIR & PTO:
- Indicates relay status and transmitter signal strength
- Ideal for use when the receiver is hidden from view during installation
- Audible battery test, low battery, and stuck switch indication
- ‘Instant Response’ captures brief switch activations
- Compatible with all push buttons and push plates
- Readily available ’AAA’ battery operation
- Optional lithium batteries are recommended where operating temperatures are below 32°f (0°C)
- (1) Form ’C’ Relay, 3 Amps @ 30VDC
- 3 Operating Modes, Including Delayed, No Delay, and Latching Relay
- Easily Configured for Use In Vestibule Applications
- Adjustable Door Hold Open/Delay Timer
- LAZERPOINT RF™ is compatible with all automatic door operators.
- Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.
- Multi-year battery life (using inexpensive 'AAA' alkaline batteries) and exclusive 'low battery','gas gauge' and 'stuck switch' audible alerts.
- New CM-RX90 advanced reciever, with 1 relay, features 3 relay modes (delay, non-delay & latching). Ideal for vestibule applications.
- RX-92 receiver model with two channels plus 6 operating modes; saves time and money by avoiding the cost of buying and installing additional components.
- Optional plug-in receiver modules provide compatibility with other RF frequencies.
- ‘PUSH AND LEARN' transmitter enrollment and signal strength indicators, makes LAZERPOINT RF™ the easiest system to install
- Ultra-compact switch transmitter fits anywhere, including jamb box.
CM-TX9: 2 1/4” x 5/8” x 3/8” (57mm x 16mm x 10mm) - Ultra-compact receivers can be mounted in door operator cabinets. CM-90: 2-5/8""” x 1-1/2""” x 1” (67mm x 38mm x 25mm)
- Compact ADA-compliant 1, 2 and 4 button key FOBs.
CM-TXF1/2/4: 2 9/16” x 1 9/16” x 5/8” (65mm x 40mm x 16mm) - Innovative FOB base for wheelchair, visor, belt or wall mouting.
CM-TXLFB: 4” x 1 5/8” x 3/4” (102mm x 42mm x 19mm) - Plug-in Lazerpoint RF™ wireless transmitter module for CM-120 series digital keypads and CM-330 series hands free switches
CM-TX99:1 9/16” L x 9/16” W x 5/16” H (40mm x 15mm x 8mm) - Camden product quality backed by a full 3 year replacement warranty
- Includes:
- (2) CM-45/4 4-1/2"" Square Push Plate Switch, Concealed Screws; 'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
- (2) CM-43LP Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
- (2) CM-TX-9 Wall Switch Transmitter;
- (1) CM-RX-90 V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
Dimensions: 8.0""L x 8.0""W x 7.25""H
Weight: 3.1lbs.
