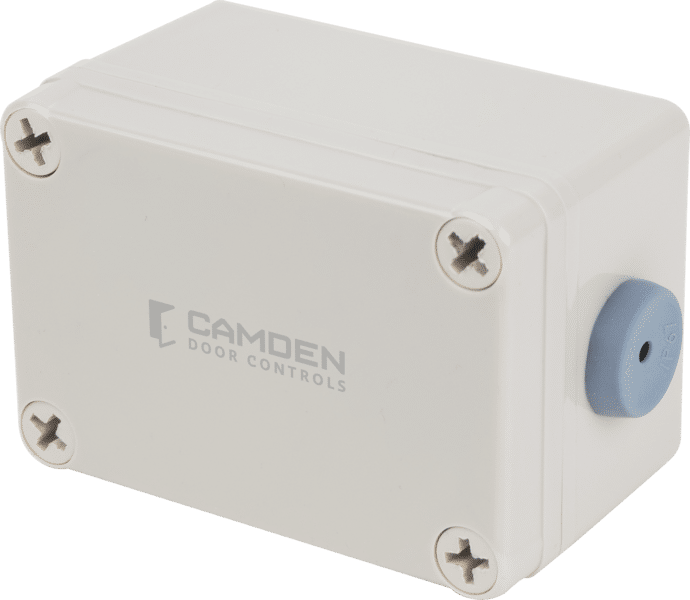

The Camden CM-SRX2 is a standalone wireless IR receiver and low-voltage relay that allows access control for up to two doors from a single unit. Designed for hard-to-wire locations like front desks or security rooms, the small 2.5'' x 3.75'' x 2.25'' footprint makes it easy to discreetly install virtually anywhere. Works with magnet locks, door strikes, gate and door operators, keypads and other devices that can be operated via low-voltage relay. Configurable bi-stable/latching modes on the 2nd relay can keep doors unlocked when pressed, or act as a momentary opener for the second connected load-- ideal for vestibules or entranceways.
Can be controlled by up to 30 transmitters, enabling easy access for homeowners, employees, tenants, and more. Rolling code encryption ensures simple RF attacks can’t duplicate wireless signals, and the IP65-rated enclosure can be used indoors or outdoors, enabling easy and secure access control for a variety of retrofit installs or older access control systems without existing remote control features.
Package includes 1x CM-SRX2 receiver, 1x user manual, 2x wall plugs, 4x self-tapping screws and 1x grommet.
CM-SRX2 Specs and Features
- Input Power: 12V or 24V AC/DC
- Standby Current: 18mA (Input VDC12V)
- Operating Current: 80mA (Input VDC12V)
- Working Humidity: 0-95%
- Working Temperature: -20°C to 85°C (-4°F to 185°F)
- Lock Relay: 1A @ 30VDC
- Memory: 30 codes
- Encryption: Rolling code
- Number of Relays: 2 relays
- 1ST relay: Momentary
- 2ND relay: Momentary or latching/bi-stable
- Frequency: 868.35 MHz
- IP Rating: IP65 with grommet
- Dimensions: 2-1/2"" W x 3-3/4"" H x 2-1/4"" D (64mm x 95mm x 56mm)
Especificaciones técnicas
The Camden CM-SRX2 is a standalone wireless IR receiver and low-voltage relay that allows access control for up to two doors from a single unit. Designed for hard-to-wire locations like front desks or security rooms, the small 2.5'' x 3.75'' x 2.25'' footprint makes it easy to discreetly install virtually anywhere. Works with magnet locks, door strikes, gate and door operators, keypads and other devices that can be operated via low-voltage relay. Configurable bi-stable/latching modes on the 2nd relay can keep doors unlocked when pressed, or act as a momentary opener for the second connected load-- ideal for vestibules or entranceways.
Can be controlled by up to 30 transmitters, enabling easy access for homeowners, employees, tenants, and more. Rolling code encryption ensures simple RF attacks can’t duplicate wireless signals, and the IP65-rated enclosure can be used indoors or outdoors, enabling easy and secure access control for a variety of retrofit installs or older access control systems without existing remote control features.
Package includes 1x CM-SRX2 receiver, 1x user manual, 2x wall plugs, 4x self-tapping screws and 1x grommet.
CM-SRX2 Specs and Features
- Input Power: 12V or 24V AC/DC
- Standby Current: 18mA (Input VDC12V)
- Operating Current: 80mA (Input VDC12V)
- Working Humidity: 0-95%
- Working Temperature: -20°C to 85°C (-4°F to 185°F)
- Lock Relay: 1A @ 30VDC
- Memory: 30 codes
- Encryption: Rolling code
- Number of Relays: 2 relays
- 1ST relay: Momentary
- 2ND relay: Momentary or latching/bi-stable
- Frequency: 868.35 MHz
- IP Rating: IP65 with grommet
- Dimensions: 2-1/2"" W x 3-3/4"" H x 2-1/4"" D (64mm x 95mm x 56mm)
