Acerca del producto

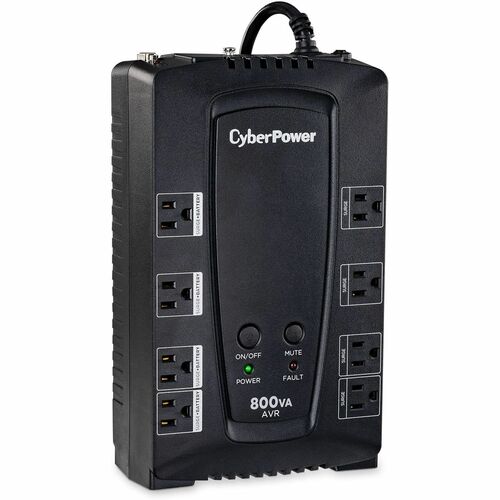

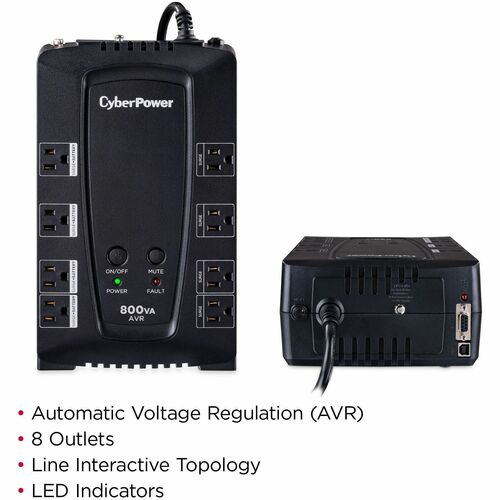

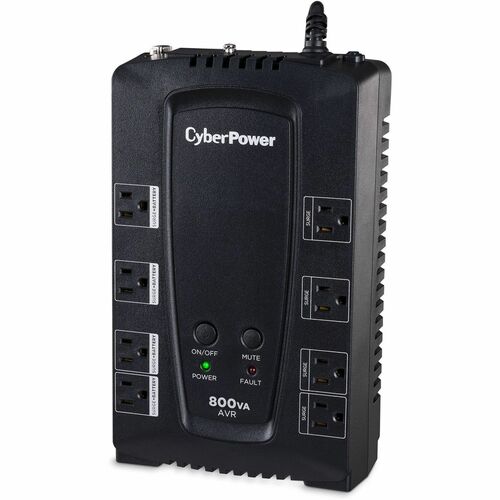

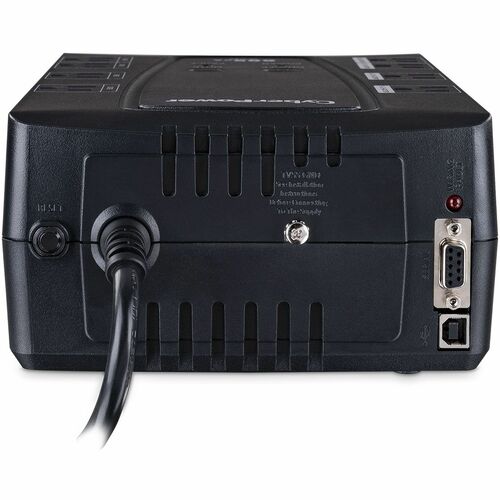

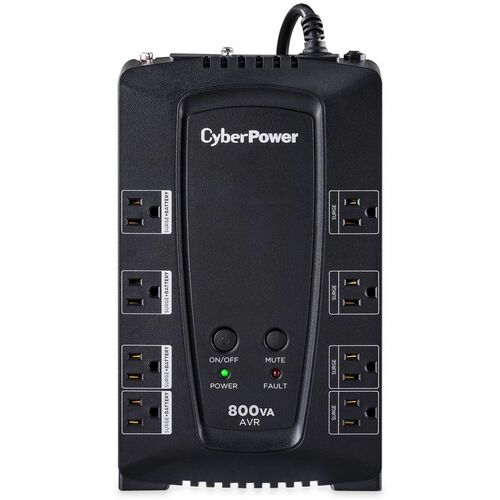

The CyberPower CP800AVR uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.
The CP800AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit's battery life. CyberPower designed the CP800AVR to minimize noise for a quieter work environment and run efficiently to reduce power consumption.
With a $200,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of this battery backup with surge protection.
Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS System, User Manual, USB A+B Type Cable, Serial Cable, Warranty Registration Card
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 1.2 minutes at full load
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 95°F (35°C) |
| Warranty | |
| Additional Warranty Information |
|
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Low Battery |
| On Battery | |
| Overload | |
| Physical Characteristics | |
| Weight (Approximate) | 12.74 lb (5778.77 g) |
| Form Factor | Compact |
| Height | 6.80" (172.72 mm) |
| Width | 11" (279.40 mm) |
| Depth | 3.50" (88.90 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | CP800AVR |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CP800AVR |
| Product Name | AVR CP800AVR 800VA UPS |
| Product Series | AVR UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel® Personal |
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1030 J |
| Waveform Type | Simulated Sine Wave |
| Output Frequency | 60 Hz |
| Load Capacity (VA) | 800 VA |
| Load Capacity (Watt) | 450 W |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Battery Characteristics | Maintenance-free |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Application/Usage | Router |
| VoIP Phone System | |
| Modem | |
| Home Theater | |
| Home Network | |
| Electronic Equipment | |
| Desktop Computer | |
| Workstation | |
| Bypass Switch | Not Provided |
| Emergency Power OFF | No |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
