Acerca del producto
Boundless video meetings

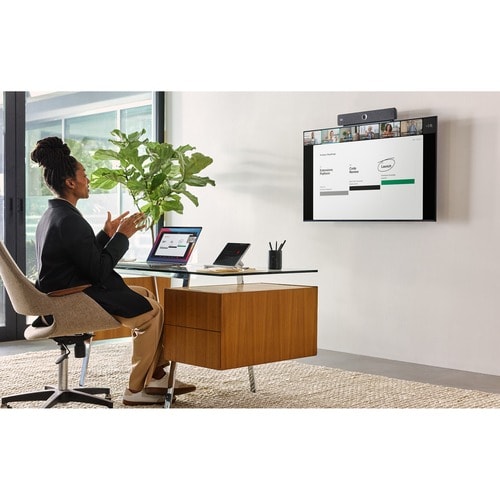

Just connect the device with one or two flat panel displays via HDMI, and enjoy stunning full HD video and 4K content powering collaboration from a wider array of spaces: from the huddle room and the dedicated office to the meeting room. Want to video-enable more meeting rooms? We've got you covered. Add an external microphone to ensure everyone is clearly heard.
Want to join a meeting beyond Webex by Cisco®? Reliable cloud video interoperability helps your team connect to any cloud meeting service, such as Microsoft Teams, Zoom, or Google Meet with a tap on a single button on the Room Navigator and you're in. Or simply connect your laptop with Room Bar via USB-C for an instant studio and content sharing.
With Room Bar, you can make sure everyone is included in the meeting: remote participants can clearly see and hear everyone in the room and never lose sight of the active speaker, while in-room members have an exceptional experience and optimized view when interacting with people on the far end. Better still, you get clear, spatial sound in the room emitted closer to the active remote speaker's video feed, for a true-to-life audio experience.
Enable intelligent workspaces
Webex Room Bar is built for augmented workplace experiences. It detects people entering the room and activates automatically for a smooth meeting join experience. And it can even recognize meeting participants using the power of artificial intelligence. No more worries about paper rustling, typing, and other background noises disrupting your session. Sophisticated noise suppression combined with machine learning-based noise removal to the rescue.
Prefer touchless experiences? Look no further. Webex Assistant enables you to use voice commands to start your next meeting. Transform your presentations into hybrid collaboration: share 4K content wirelessly or with a USB-C cable, to keep the ideas flowing and ensure remote participants get the same best experience.
- Fullfil all your conferencing needs with this video conference equipment that delivers clear, immersive sound and high quality video
- Featuring Gigabit Ethernet port for ultra-high quality communication
- Get enhanced high-quality video at 60 fps frame rate
- Simply plug in RJ-45 port to connect the conference equipment on the network
- With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable
- Supports H.460.18/19 ITU-T recommendations for high-quality enhanced performance
Especificaciones técnicas
| Camera | |
| Image Sensor Type | CMOS |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Technical Information | |
| Video Bridging | Point-to-Point |
| ITU-T Recommendation | H.264 |
| H.460.18/19 | |
| H.323 | |
| SIP | |
| Video | |
| Video Encoding | H.239 |
| H.263 | |
| Maximum Frame Rate | 60 fps |
| Maximum Video Resolution (Content) | 3840 x 2160 |
| Graphics Modes (Content) | 4K UHD |
| Audio | |
| Audio Encoding | G.729 |
| Opus | |
| G.711 | |
| G.722 | |
| AAC-LD | |
| G.722.1 | |
| Physical Characteristics | |
| Weight (Approximate) | 1.50 kg |
| Form Factor | Wall Mountable |
| Tabletop | |
| Height | 3.20" (81.28 mm) |
| Width | 21" (533.40 mm) |
| Depth | 2.50" (63.50 mm) |
| General Information | |
| Product Type | Video Conference Equipment |
| Manufacturer Part Number | CS-BAR-T-C-K9 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | Webex Room Bar (Carbon Color) with table-stand Room Navigator |
| Product Line | Webex Room |
| Brand Name | Cisco |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
