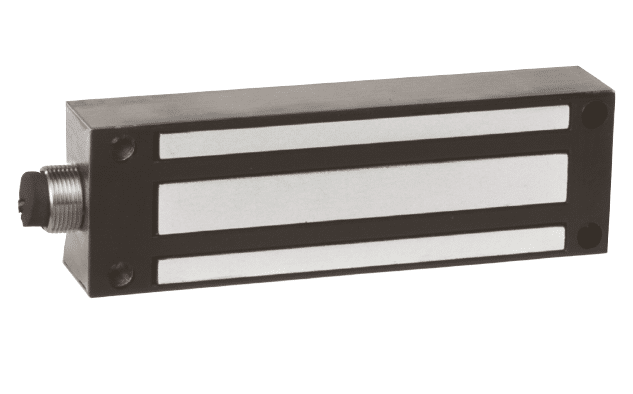

Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects.
Camden CX-94S-12LS Surface Mount Gate Lock Features:
1,200 Lb. holding force
Compatible with all access/egress systems
Field selectable 12/24 VDC operation
Conduit fitting for weather-resistant installation
Built-in lock sensor and relay
Lifetime warranty
Camden CX-94S-12LS Surface Mount Gate Lock Specifications:
VOLTAGE: 12/24V DC
CURRENT DRAW: 500MA@12V DC 250MA@24V DC
TEMP RANGE: 5F TO 122F (-15C TO 50C)
CONTACT RATING: BOND SENSOR: 1A@30V DC
DIMENSIONS (BODY): 2 1/2”H x 8”W x 1 5/8”D (63mm x 203mm x 41.5mm)
Especificaciones técnicas
Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects.
Camden CX-94S-12LS Surface Mount Gate Lock Features:
1,200 Lb. holding force
Compatible with all access/egress systems
Field selectable 12/24 VDC operation
Conduit fitting for weather-resistant installation
Built-in lock sensor and relay
Lifetime warranty
Camden CX-94S-12LS Surface Mount Gate Lock Specifications:
VOLTAGE: 12/24V DC
CURRENT DRAW: 500MA@12V DC 250MA@24V DC
TEMP RANGE: 5F TO 122F (-15C TO 50C)
CONTACT RATING: BOND SENSOR: 1A@30V DC
DIMENSIONS (BODY): 2 1/2”H x 8”W x 1 5/8”D (63mm x 203mm x 41.5mm)
