Acerca del producto

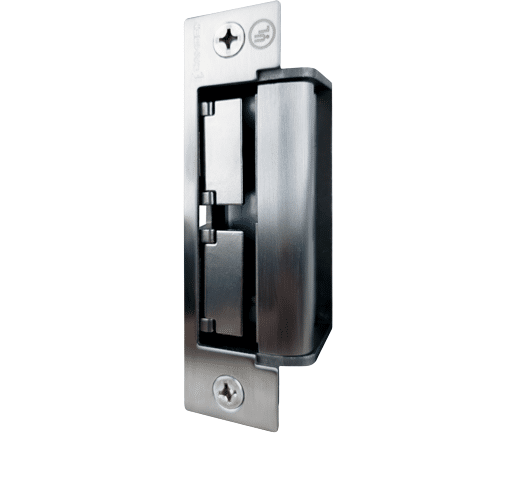

Camden's CX-ED1799L-8 Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in latch monitoring and 'universal' performance. CX-ED1799L-8 strikes are packaged with (4) or (8) stainless steel faceplates. They feature field selectable voltage (12/24V, AC/ DC), fail safe or fail secure operation, and are non-handed.
Camden's Dual Monitor Fire Rated Electric Strike Locksets Features:
- For mortise and cylindrical locksets
- A range of strike and faceplate packages for latchbolts and deadbolts
- Faceplates also available in black architectural finish (BHMA 622, US19)
- Selectable fail safe / fail secure
- Selectable 12/24V AC/DC
- 1 or 2 latch and deadbolt monitoring switches
- Magnetic door position switch
- Strike power monitor
- Easy fit connectors
- 5 year warranty
Camden's Dual Monitor Fire Rated Electric Strike Locksets Specifications:
- VOLTAGE: 12/24V AC/DC
- CURRENT DRAW: 300mA @ 12V AC/DC 150mA @ 24V AC/DC
- STATIC STRENGTH: 1,500 Lbs.
- DYNAMIC STRENGTH: 70 Ft-Lbs.
- ENDURANCE: 1,500,000 Cycles (Factory Tested) 250,000 Cycles (UL Verified)
- MODE: Field Selectable Fail Safe/Fail Secure
- OPERATION: AC-Buzz, DC-Silent
- DUTY: Continuous
- LOCK MONITOR STATUS: 2 x SPST, 100mA @ 24V DC, Resistive
- STRIKE MONITOR STATUS: SPDT, 100mA @ 24V DC, Resistive
- DIMENSIONS (BODY): 4-7/8''H x 1-5/8''W x 1-21/32''D (124mm x 41mm x 42mm)
Especificaciones técnicas
Camden's CX-ED1799L-8 Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in latch monitoring and 'universal' performance. CX-ED1799L-8 strikes are packaged with (4) or (8) stainless steel faceplates. They feature field selectable voltage (12/24V, AC/ DC), fail safe or fail secure operation, and are non-handed.
Camden's Dual Monitor Fire Rated Electric Strike Locksets Features:
- For mortise and cylindrical locksets
- A range of strike and faceplate packages for latchbolts and deadbolts
- Faceplates also available in black architectural finish (BHMA 622, US19)
- Selectable fail safe / fail secure
- Selectable 12/24V AC/DC
- 1 or 2 latch and deadbolt monitoring switches
- Magnetic door position switch
- Strike power monitor
- Easy fit connectors
- 5 year warranty
Camden's Dual Monitor Fire Rated Electric Strike Locksets Specifications:
- VOLTAGE: 12/24V AC/DC
- CURRENT DRAW: 300mA @ 12V AC/DC 150mA @ 24V AC/DC
- STATIC STRENGTH: 1,500 Lbs.
- DYNAMIC STRENGTH: 70 Ft-Lbs.
- ENDURANCE: 1,500,000 Cycles (Factory Tested) 250,000 Cycles (UL Verified)
- MODE: Field Selectable Fail Safe/Fail Secure
- OPERATION: AC-Buzz, DC-Silent
- DUTY: Continuous
- LOCK MONITOR STATUS: 2 x SPST, 100mA @ 24V DC, Resistive
- STRIKE MONITOR STATUS: SPDT, 100mA @ 24V DC, Resistive
- DIMENSIONS (BODY): 4-7/8''H x 1-5/8''W x 1-21/32''D (124mm x 41mm x 42mm)
