Camden Universal Strike,12/24V AC/DC, Fail Safe/Secure, Hor adj w/ sq faceplate Overview

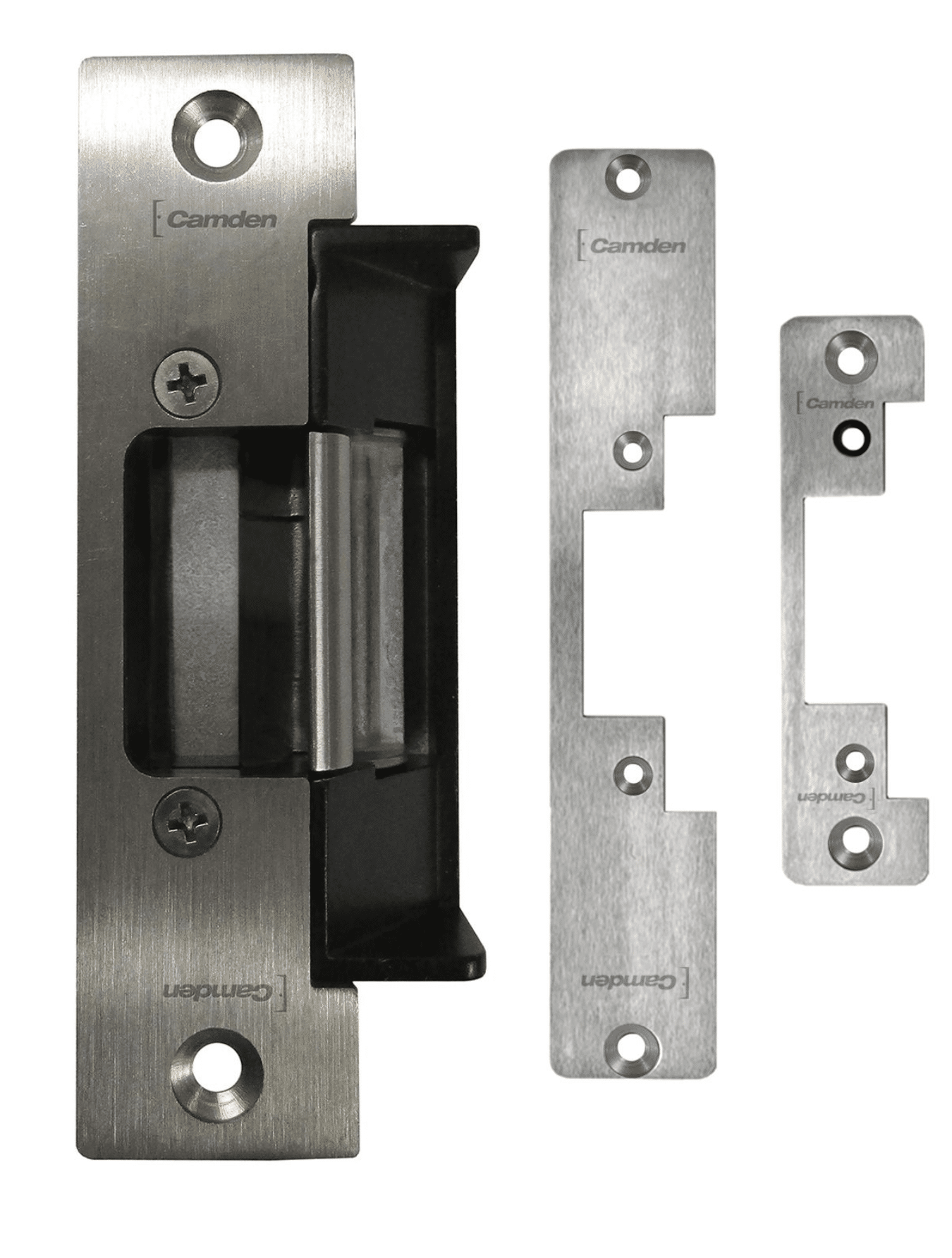

Camden CX-ED2079-1 Low profile ‘Universal’ grade 2 ANSI strike for cylindrical locksets, with (1) ANSI square faceplate, provides the best strike value.
Camden Universal Strike,12/24V AC/DC Features
- Selectable 12/24V, AC/DC
- 5-year manufacturer’s warranty
- Low profile strike body with horizontal adjustability
- 3 stainless steel faceplates included: ANSI square, ANSI round, and wood door frame
- Centerline latch entry for cylindrical locksets, ½” to 5/8” latch projection
- Selectable fail safe/fail secure operation
- Static strength of 1000 lbs
- Dynamic strength of 50 ft-lbs
- Endurance of 250 000 cycles (UL verified)
- Dimensions: 3 3/8” x 1 7/8” x 1 1/8”
Camden Universal Strike,12/24V AC/DC Specifications
- Voltage (V): 12/24V AC/DC
- Amperage: 300mA@12V DC, 150mA@24V DC
- Dimensions:
- Length (in): 3 3/8
- Width (in): 1 7/8
- Height (in): 1 1/8
- Operates: Door Frame Types: Hollow Metal Frame, Aluminum Frame, Wood Frame
- ANSI Code: GR2 ANSI Strike, Low Profile c/w 1 square corner faceplate
- UL Listed: UL Listed
- Notes: For additional options and special quantity discounts, please contact our sales department at 1-(855)-296-9508 x 101 or send an e-mail to cs@bulbspro.com
Especificaciones técnicas
Camden Universal Strike,12/24V AC/DC, Fail Safe/Secure, Hor adj w/ sq faceplate Overview
Camden CX-ED2079-1 Low profile ‘Universal’ grade 2 ANSI strike for cylindrical locksets, with (1) ANSI square faceplate, provides the best strike value.
Camden Universal Strike,12/24V AC/DC Features
- Selectable 12/24V, AC/DC
- 5-year manufacturer’s warranty
- Low profile strike body with horizontal adjustability
- 3 stainless steel faceplates included: ANSI square, ANSI round, and wood door frame
- Centerline latch entry for cylindrical locksets, ½” to 5/8” latch projection
- Selectable fail safe/fail secure operation
- Static strength of 1000 lbs
- Dynamic strength of 50 ft-lbs
- Endurance of 250 000 cycles (UL verified)
- Dimensions: 3 3/8” x 1 7/8” x 1 1/8”
Camden Universal Strike,12/24V AC/DC Specifications
- Voltage (V): 12/24V AC/DC
- Amperage: 300mA@12V DC, 150mA@24V DC
- Dimensions:
- Length (in): 3 3/8
- Width (in): 1 7/8
- Height (in): 1 1/8
- Operates: Door Frame Types: Hollow Metal Frame, Aluminum Frame, Wood Frame
- ANSI Code: GR2 ANSI Strike, Low Profile c/w 1 square corner faceplate
- UL Listed: UL Listed
- Notes: For additional options and special quantity discounts, please contact our sales department at 1-(855)-296-9508 x 101 or send an e-mail to cs@bulbspro.com
